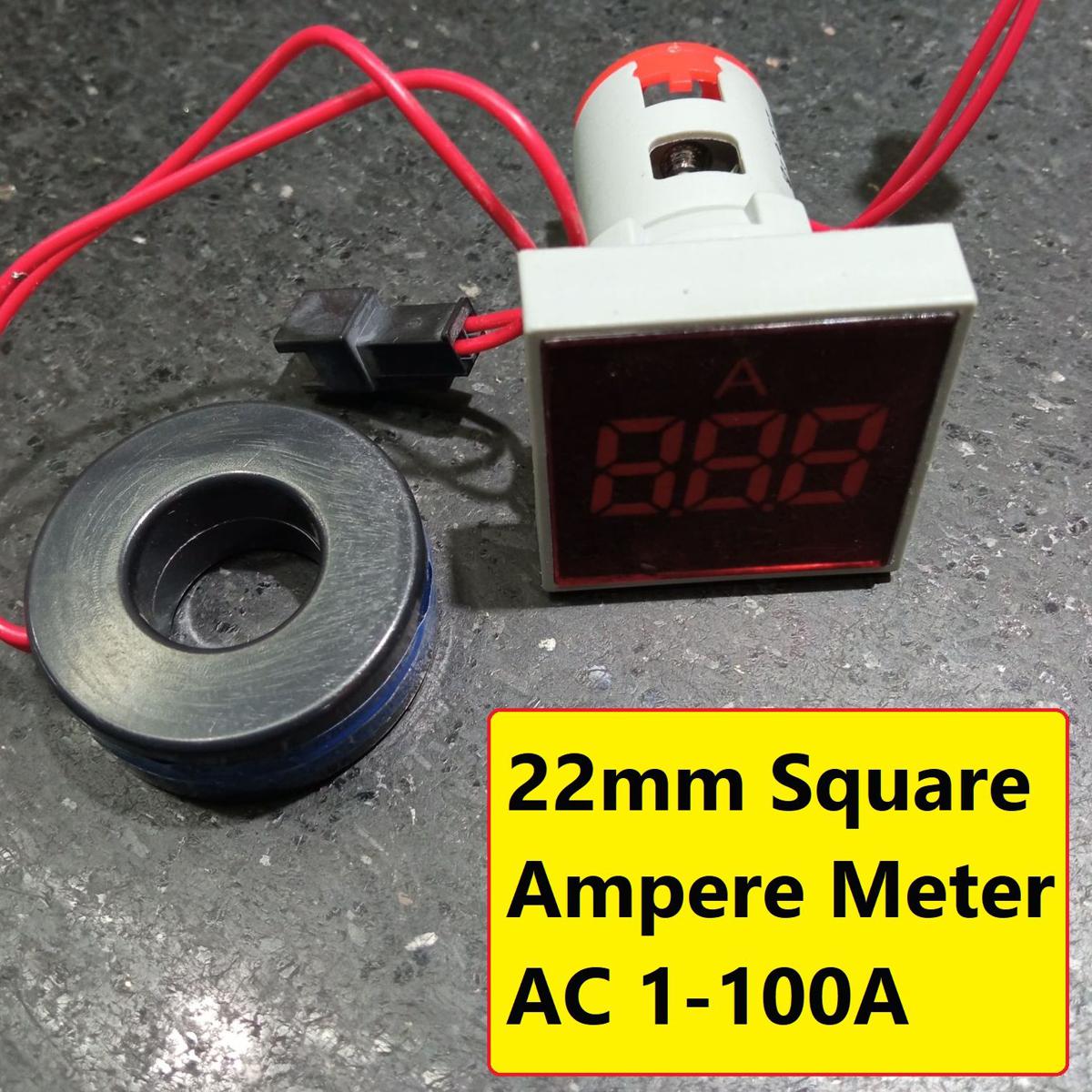

Description: 22mm AC 1-100A LED Panel Digital Ampere Meter Ampere Square Indicator Light With Current Transformer

Panel Mount Digital AC Amp meter with Current Transformer

Features:

• Ampere Range: AC 1-100A (AC)
• Rated Current: <20mA
• Brightness: ≥60cd/Square Meters
• Vibration AC Frequency: 2-80Hz Acceleration
• Electrical durability: ≥30,000H
• Hole Cutting Size: 22mm/ 0.87” Diameter
• Material: Plastic, Metal, Electric Components

Technical Parameters:

• Environmental Temperature: -25+55
• Working under vibration frequency 2-80Hz, acceleration at 0.7g
• Relative Air Humidity: ≤98%
• Pollution rank is three grade and installation category is III
• Protection Degree: Head IP65
• Voltage of working frequency: 2.5kV (AC valid value), 1min
• Leakage Index: CT1≥100
• Frequency: AC 50-60Hz
• Error ± 2%

Package Include:

• 1 x 22mm AC 1-100A LED Panel Digital Ampere Meter Ampere Square Indicator Light With Current Transformer

• Ampere Range: AC 1-100A (AC)
• Rated Current: <20mA
• Brightness: ≥60cd/Square Meters
• Vibration AC Frequency: 2-80Hz Acceleration
• Electrical durability: ≥30,000H
• Hole Cutting Size: 22mm/ 0.87” Diameter
• Material: Plastic, Metal, Electric Components
