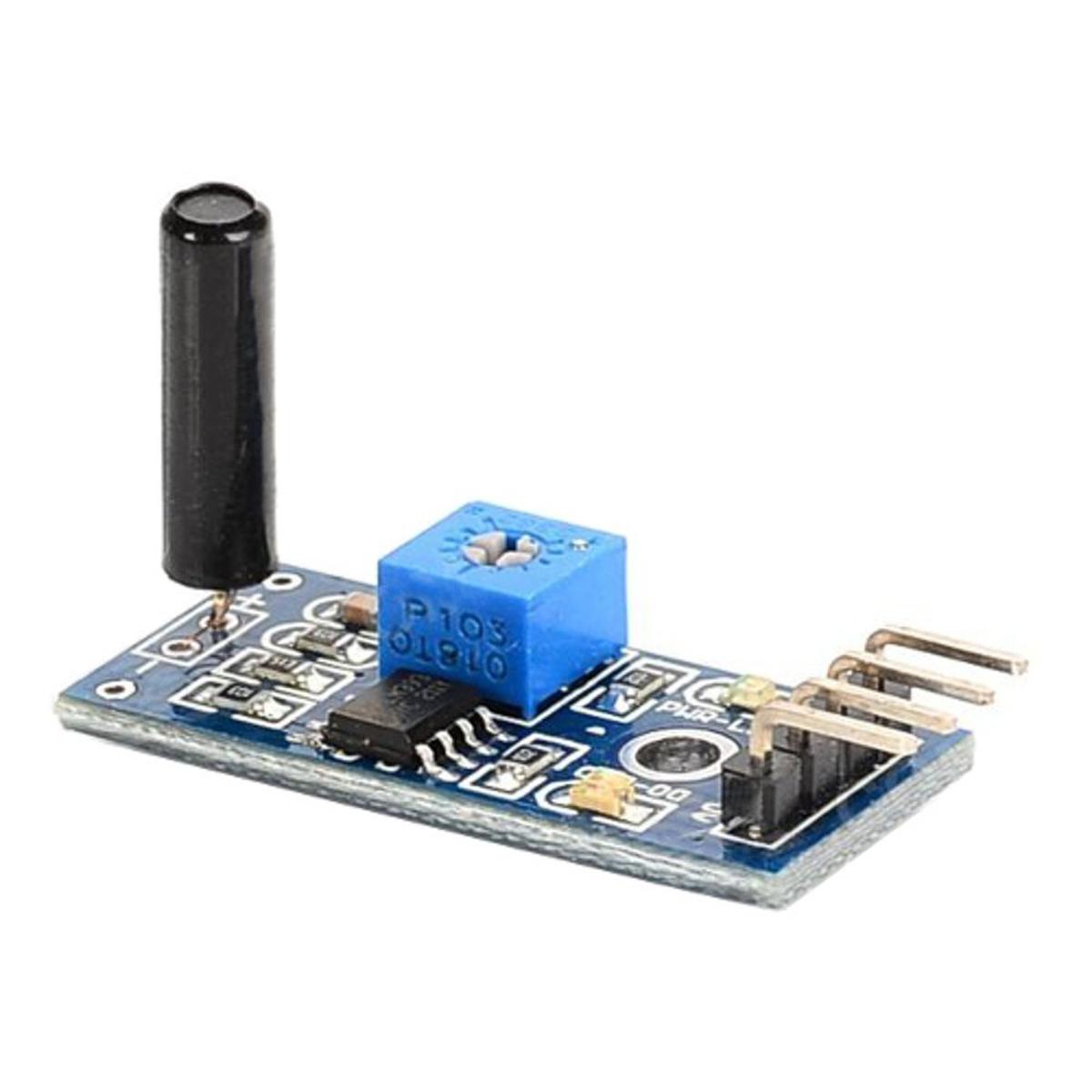

Description: SW-18010P Vibration Sensor Module

1. Use of the company’s high sensitivity vibration switch SW-18010P by default with vibration sensors.

2,. The comparator’s output signals are clean, good waveform, conduction capacity, more than 15mA

3. Operating voltage 3.3V-5V

4, output form: digital switching output (0 and 1)

5, fixed bolt hole for easy installation

6, small PCB board size: 3.2cm x 1.4cm

7, using a LM393 wide voltage comparator

Features:

1. This is Open-Type Vibration sensor Module;2. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma;3. The working voltage of 3V to 5 V;4. Output form: digital switch output (0 and 1);5. Fixed bolt hole, convenient installation;6. Small board PCB size: 3.1 cm x 1.4 cm;7. Use the LM393 wide voltage comparator;8. Adopt SW-18010P Vibration sensor.

Applications:

Can be applied to the anti-theft devices.

Electronic Locks machinery and equipment.

Vibration testing and other testing vibration.

Usage:

1. When the product does not shock, vibration switch OFF state, the output of high output, the green light does not shine;2. When the product is shock, vibration switch is turned on instantly, output of low output, the green indicator light;3. The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting whether the environment there is vibration, play a role in for police

For wiring instructions:

1. VDC: positive power supply

2. GND: Negative

3. DO: digital signal output

4. AO: With this shock sensor this function is not valid

Package included:

1 x SW-18010P Vibration Sensor Module

• Dimensions: 28 x 14 x 13 mm(LxWxH).
• Weight: 4 gm.
• Input Voltage range: DC0 to 25 V
• Voltage detection range: DC 0.02445 V to 25 V
• Analog Voltage resolution : 0.00489 V
•
