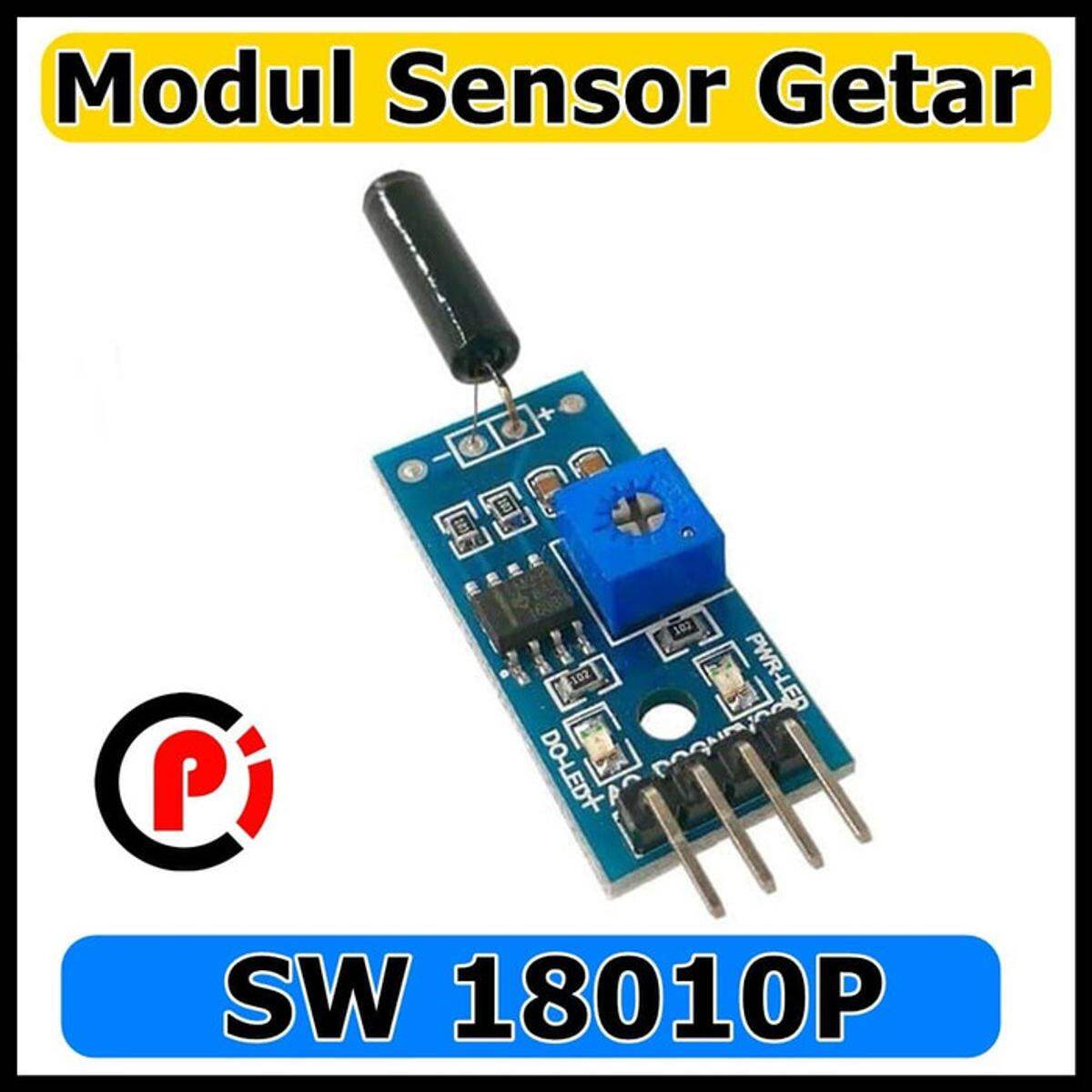

Description: SW-18010P Vibration Sensor Module

SW-18010P SW18010P 1801P VIBRATION Sensor Switch Module DC 3V 5V Normally Open High Sensitivity Vibration Sensor Switch Module Alarm Trigger Movement Sensor LM393 Digital Analog For Arduino Electronics Circuitry & Parts

Specifications:

• Working voltage: 3.3V-5V
• Output format: digital switch output (0 and 1)
• Small PCB size:1.2*0.5inch /3.2cm x 1.4cm
• Quantity: 1pc

Features:

• 1. This is Open-Type Vibration sensor Module;
• 2. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma;
• 3. The working voltage of 3V to 5 V;
• 4. Output form: digital switch output (0 and 1);
• 5. Fixed bolt hole, convenient installation;
• 6. Small board PCB size: 3.1 cm x 1.4 cm;
• 7. Use the LM393 wide voltage comparator;
• 8. Adopt SW-18010P Vibration sensor.

Applications:

• Can be applied to the anti-theft devices.
• Electronic Locks machinery and equipment.
• Vibration testing and other testing vibration.

Usage:

• 1. When the product does not shock, vibration switch OFF state, the output of high output, the green light does not shine;
• 2. When the product is shock, vibration switch is turned on instantly, output of low output, the green indicator light;
• 3. The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting whether the environment there is vibration,play a role in for police

For wiring instructions:

• 1. VDC: positive power supply
• 2. GND: Negative
• 3. DO: digital signal output
• 4. AO: With this shock sensor this function is not valid

Notes:

• Due to the difference between different monitors, the pictures may not reflect the actual color of the item.
• Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
• Please leaving a message before you give the bad feedback, if the products have some problems.
• Thanks for your understandings.

Package included:

• 1 x Vibration Sensor Switch Module SW-18010P DC 3V 5V Normally Open Type High Sensitivity Vibration Sensor Switch Module Alarm Trigger Movement Sensor lm393 Digital Analog For Arduino
