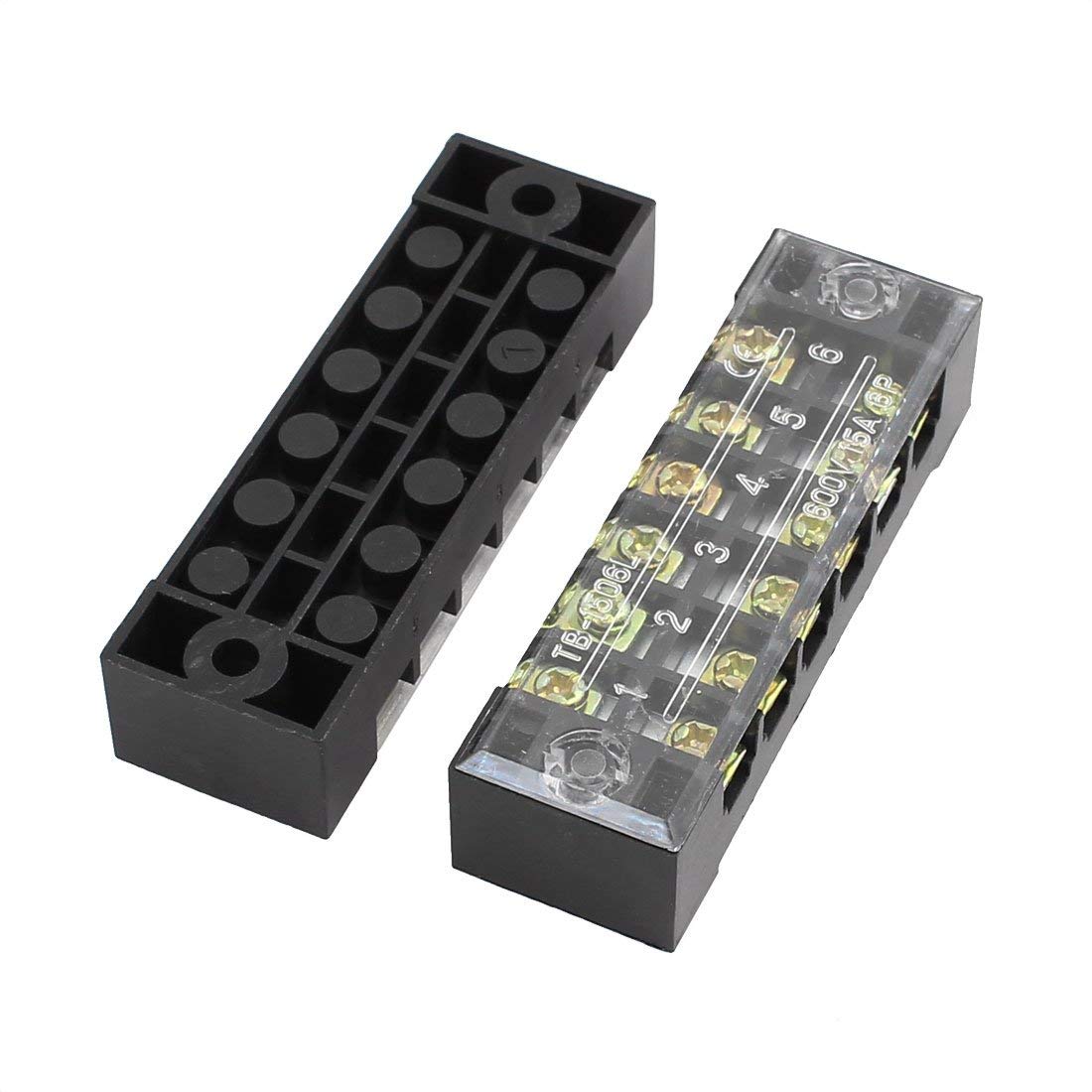

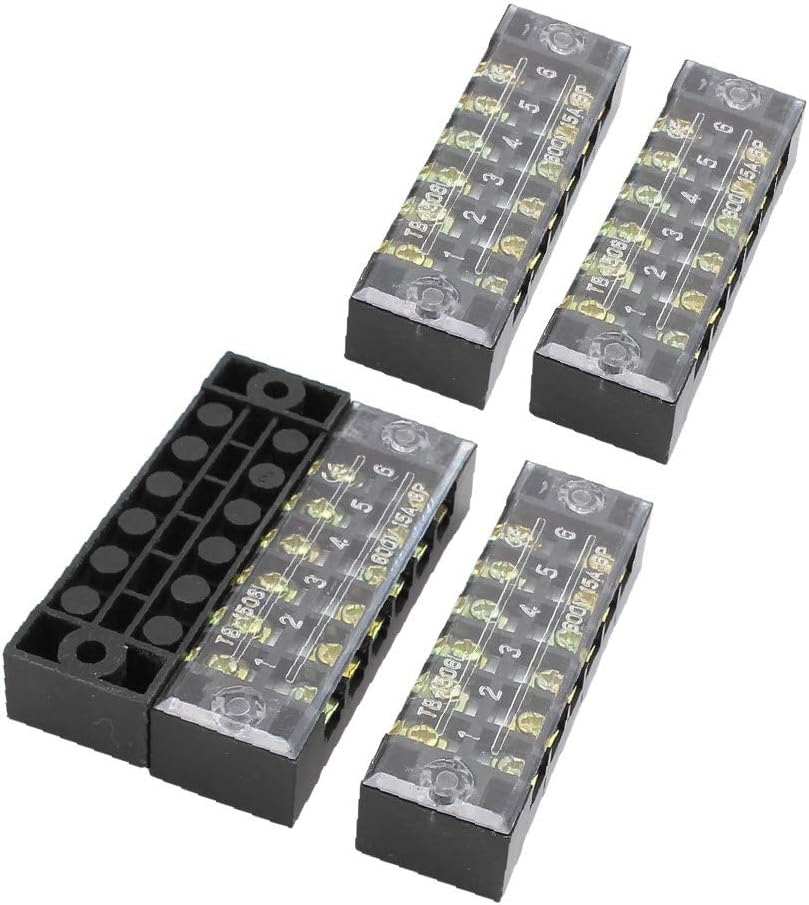

Description: TB-1506 6P Double Row Terminal Block

Terminal Block TB-1506 600V 15A 6P Double Row 6 Pin Terminal Block TB-1506 Terminal Block 600V 15A TB Series 6 Positions Ways Dual Row Barrier Screw Terminal Block Wire Connector TB-1506 6P Double Row Terminal Block 600V 15A

This TB Series screw fixed barrier terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder or any other splicing, by this method wiring can adjusted at anytime just as easy as it was the first time.

Each position block offers a screw with a max current 15A and a max voltage tolerance of 600V before risking meltdown or implosion. Small pitch to save space, low structural height, Large wiring capacity, can be connected to the section area of 4mm² flexible wire The plug socket is protected against wrong insertion and dislocation.

Features:

• TB-1506 600V 15A 6P Double Row 6-Pole Terminal

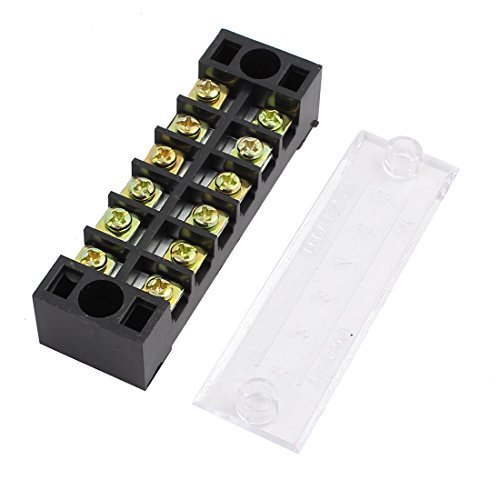

• Double Row 6 Positions Removable Clear Plastic Insulation Cover Screw Lock
• Each of the clamps is insulated against the next one and prevents circuit from getting in mess.
• Widely used in electronics, communication equipment, instruments, calculators, automatic control system, household appliance warning devices, etc.

Specification:

• Product Name : Screw Terminal Block;
• Model Number : TB-1506
• Material : Metal, Plastic
• Nominal value: 600V 15A; Cross Sectional Area of Cable : 0.5-1.5mm2
• Conductor Size: 0.5-1.5mm
• Fix hole diameter: 4mm (0.16″)
• Pole: 6 positions, Double rows
• Wire Size: 2.0 mm2 / AWG 14
• Size: 72mmx 22mmx 17mm/2.83″x 0.87″ x 0.67″ (L*W*H)
• Main Color: Black, Clear
