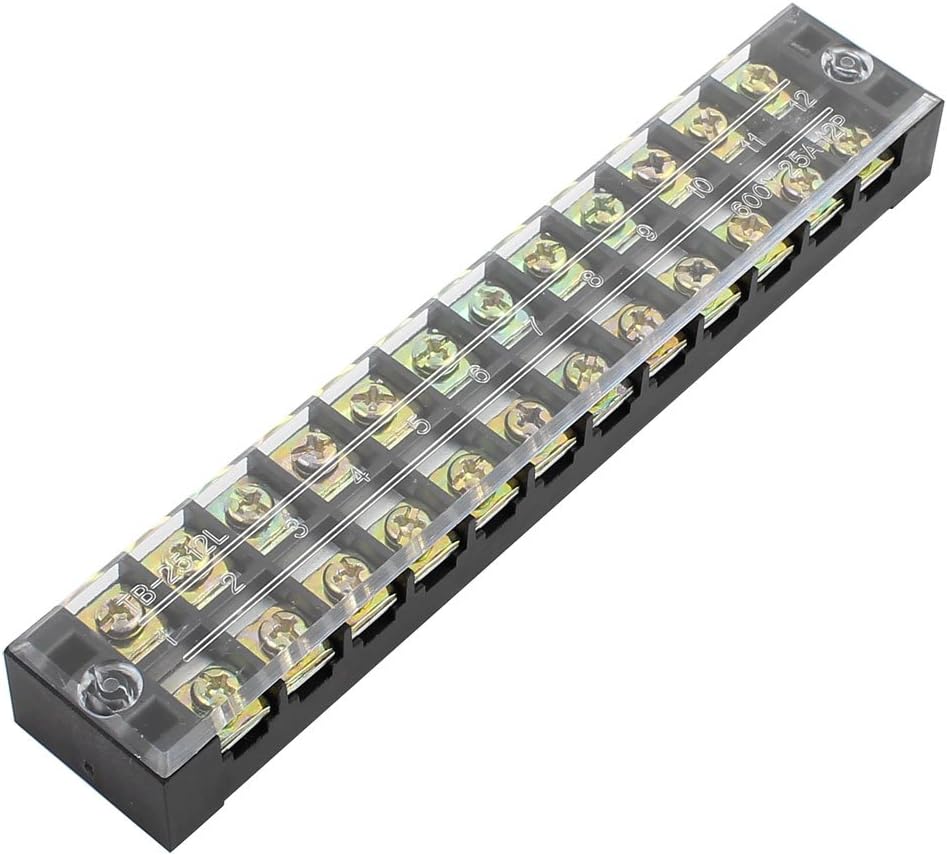

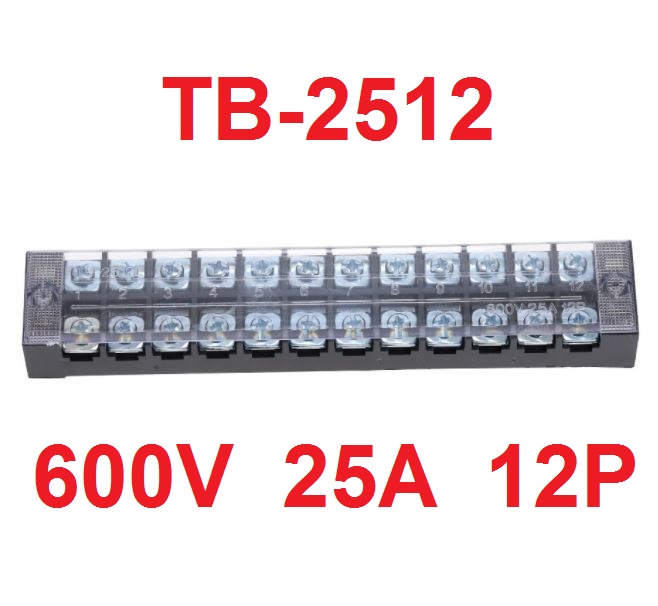

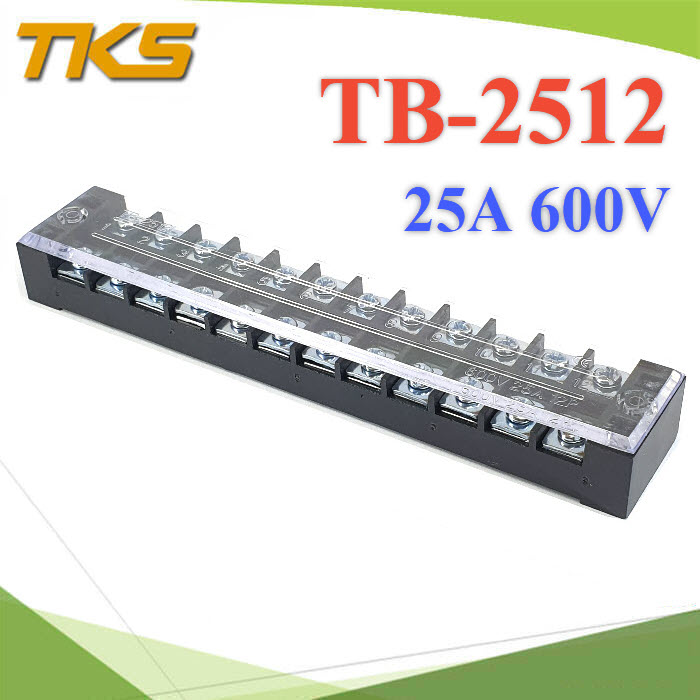

Description: TB-2512 12P Double Row Terminal Block

Terminal Block TB-2512 600V 25A 12P Double Row 12 Pin Terminal Block TB-2512 Terminal Block 600V 25A TB Series 12 Positions Ways Dual Row Barrier Screw Terminal Block Wire Connector TB-2512 12P Double Row Terminal Block 600V 25A

This TB Series screw fixed barrier terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder or any other splicing, by this method wiring can adjusted at anytime just as easy as it was the first time.

Each position block offers a screw pitch of 10mm with a max current 25A and a max voltage tolerance of 600V before risking meltdown or implosion. Small pitch to save space, low structural height, Large wiring capacity, can be connected to the section area of 4mm² flexible wire The plug socket is protected against wrong insertion and dislocation.

Features:

• TB-2512 600V 25A 12P Double Row 12-Pole Terminal
• Double Row 12 Positions Removable Clear Plastic Insulation Cover Screw Lock
• Each of the clamps is insulated against the next one and prevents circuit from getting in mess.
• Widely used in electronics, communication equipment, instruments, calculators, automatic control system, household appliance warning devices, etc.

Specification:

• Product Name : Screw Terminal Block;
• Model Number : TB-2512;
• Material : Metal, Plastic
• Nominal value: 600V 25A; Cross Section Cable 0.5-2.5 mm2.
• Fix hole diameter: 4.5 mm / 0.17 inches;
• pole: 12 positions, double rows
• Size: 163 x 30 x 20mm / 6.4 x 1.2 x 0.79(L*W*T);
• Main Color: Black, Clear

• Product Name : Screw Terminal Block;
• Model Number : TB-2512;
• Material : Metal, Plastic
• Nominal value: 600V 25A; Cross Section Cable 0.5-2.5 mm2.
• Fix hole diameter: 4.5 mm / 0.17 inches;
• pole: 12 positions, double rows
• Size: 163 x 30 x 20mm / 6.4 x 1.2 x 0.79(L*W*T);
• Main Color: Black, Clear
