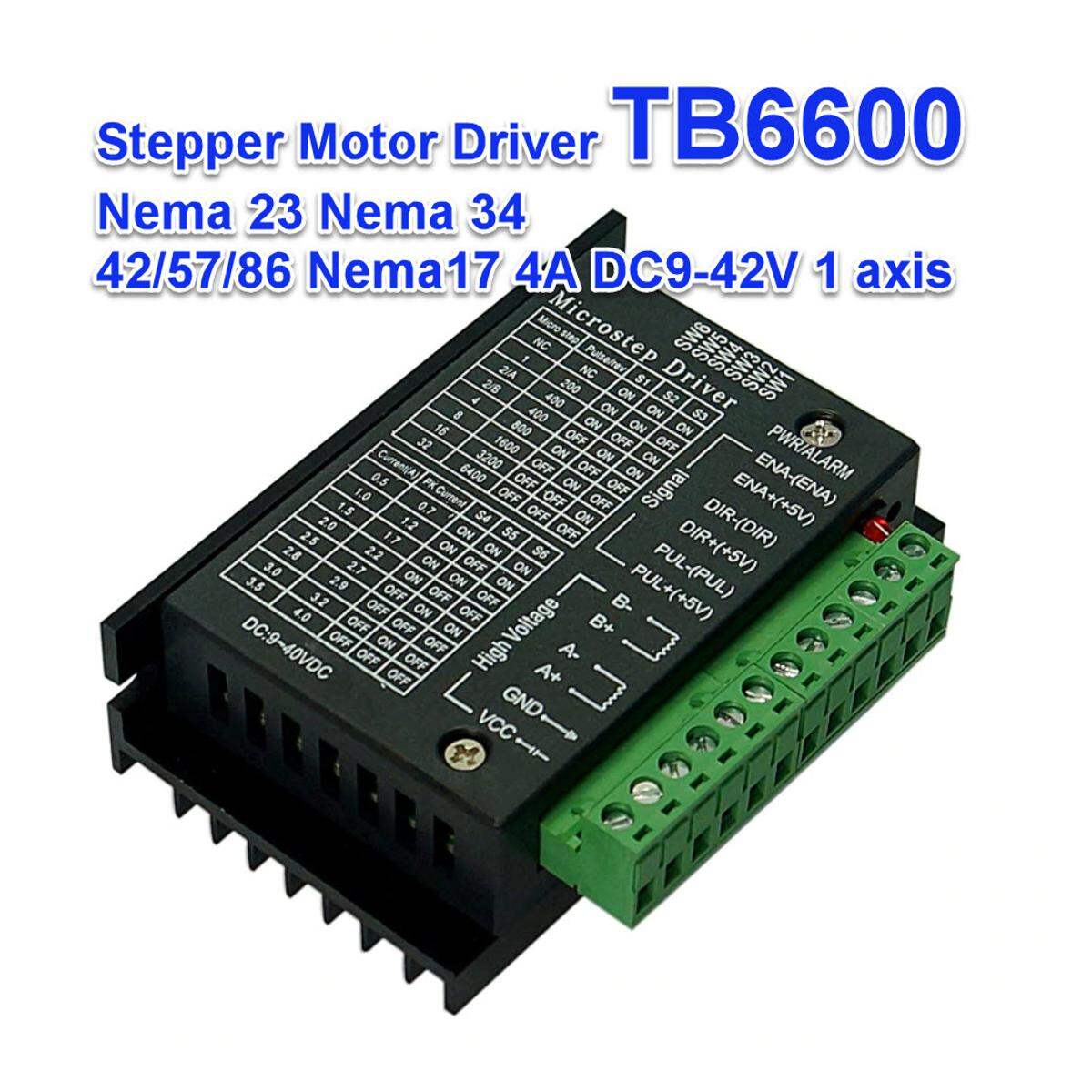

TB6600 TB-6600 Stepper Motor Driver Controller DC 9-42V 4A For CNC Engraving Machine 3D Printers DIY Electronics Project TB 6600

Description: TB6600 4.0A Stepper Motor Driver

TB6600 arduino Stepper Motor Driveris an easy-to-use professionalstepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600arduino stepper motor driverhas a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of stepper motors.The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.

Specifications:

Input Current: 0~5AOutput Current: 0.5~4.0AControl Signal: 3.3~24VPower (MAX): 160WMicro Step: 1, 2/A, 2/B, 4, 8, 16, 32Temperature: -10～45℃Humidity: No CondensationWeight: 0.2 kgDimension: 96 * 71 * 37 mm

Features:

Recommended Power : 24-36VSupport 8 kinds of current controlSupport 7 kinds of micro steps adjustableThe interface adopts high-speed opto coupler isolationLarge area heat sinkAnti-high-frequency interference abilityInput anti-reverse protectionOverheat, over current and short circuit protectionOutput Current:0.5~4.0APower (MAX):160WMicro Step:1, 2/A, 2/B, 4, 8, 16, 32

cooling method	Natural cooling or forced air cooling.
occasion	Do not place it near other hot equipment. Avoid dust, oil, corrosive gas, excessive humidity and strong earthquakes. Do not use combustible gas or conductive dust.
humidity	40-90％RH
shock	10-55Hz/0.15mm
Save the temperature	-20-65℃
weight	0.15KG

Subdivision setting:

Set the pulse with 1, 2 and 3 DIP switches as follows:

Subdivision	Pulse / circle	S1	S2	S3
NC	NC	ON	ON	ON
1	200	ON	ON	OFF
2/A	400	ON	OFF	ON
2/B	400	OFF	ON	ON
4	800	ON	OFF	OFF
8	1600	OFF	ON	OFF
16	3200	OFF	OFF	ON
32	6400	OFF	OFF	OFF

Use 4, 5, and 6 DIPswitches to set the running current as follows:

Average current	Peak current	S4	S5	S6
0.5	0.7	ON	ON	ON
1.0	1.2	ON	OFF	ON
1.5	1.7	ON	ON	OFF
2.0	2.2	ON	OFF	OFF
2.5	2.7	OFF	ON	ON
2.8	2.9	OFF	OFF	ON
3.0	3.2	OFF	ON	OFF
3.5	4.0	OFF	OFF	OFF

Documents:

DFRobot TB6600 Tutorial(with Arduino code)TB6600HG_datasheet_en_20160610

Package Included:

1 x TB6600 upgraded stepper motor driver
