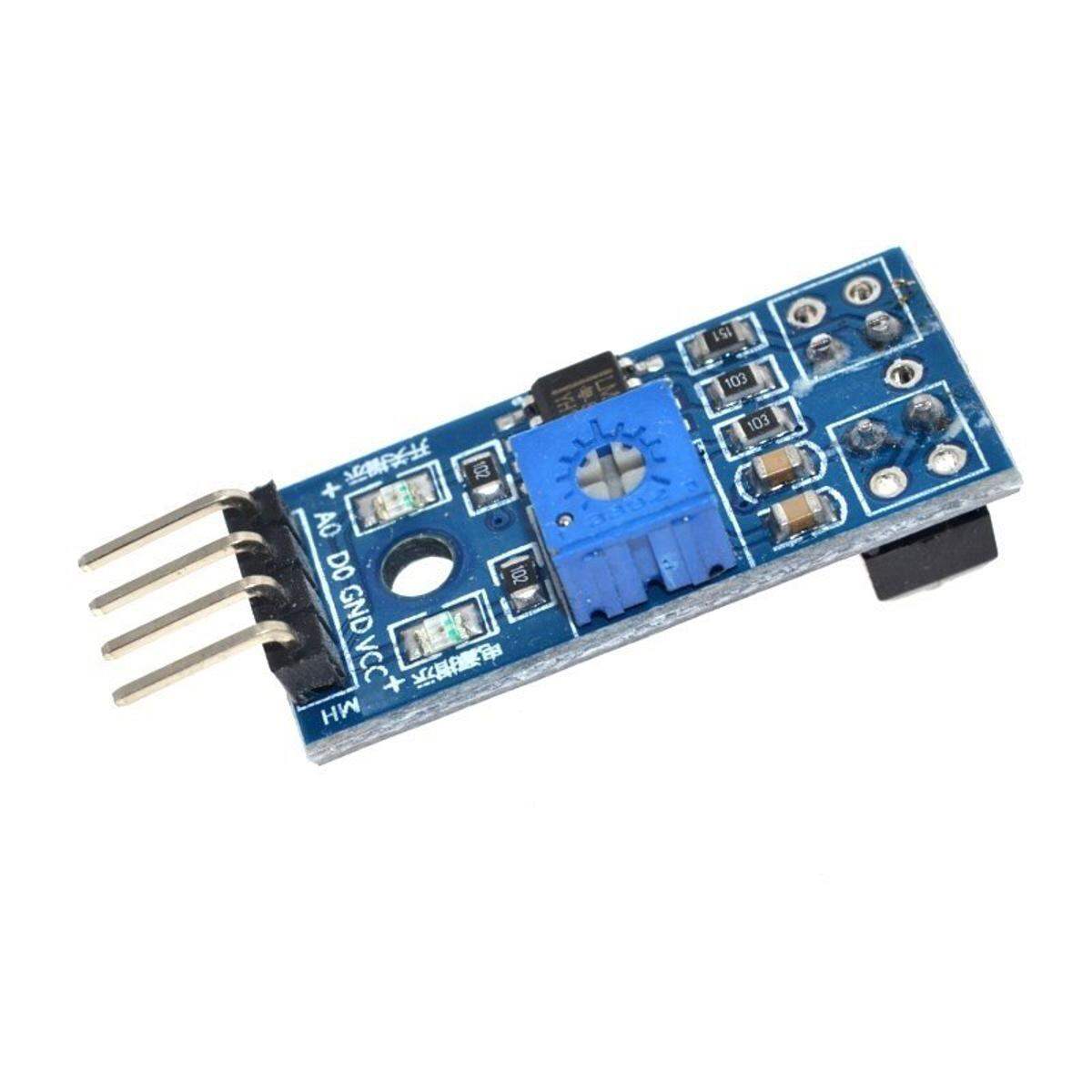

Description: TCRT5000 Infrared Sensor Switch Line Track Sensor Module

TCRT5000 TCRT 5000 Infrared Sensor Switch Line Track Sensor Module DC 3.3-5V IR Reflective Line Tracking Sensor Obstacle Avoidance Module Photoelectric Switches IR Barrier Module

This IR reflective sensor Module usedTCRT5000IR Sensor to detect color and distance. Thissensormodule consists of an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver.

TCRT5000Infrared ReflectiveSensor Moduleis often used in line following robots, object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm and the central point is about 2.5mm.

There is also an onboardpotentiometerto adjust the sensitivity. The infrared diode will be emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW.

Features:

• Designed with the reflected infrared sensor, indicator light.
• Built in a potentiometer for sensitivity control.
• On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
• Onboard signal output instructions, the output is the highly effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection & middot
• Signal detection sensitivity can adjust
• Reserve all the way more circuits (P3 voltage drawn)
• Using the TCRT5000 infrared reflection sensor
• Output form: digital switch output (0 and 1)
• A fixed bolt hole, convenient installation.

Specification:

• 1. Working voltage: DC 3.3V-5V
• 2. Working current: ≥ 20mA
• 3. Operating temperature: -10℃~+50℃
• 4. detection distance :2-40cm
• 5.IO Interface: 4-wire interfaces (-/+/S/EN)
• 6. Output signal: TTL level (low level there is an obstacle, no obstacle high)
• 7. Adjustment: adjust multi-turn resistance 8. Effective angle: 35° 7.
• 8. Size: 28mm×23mm

How To Connect :

• 1. VCC : DC input + (3-5V)
• 2. GND : DC input –
• 3. DO : TTL signal
• 4. AO : Analog output (different distance different output voltage ,in general ,this pin doesn’t need to connect )

Application:

• Meter pulse data sampling
• Fax paper shredders detection
• Obstacle detection
• Black and white line detection
