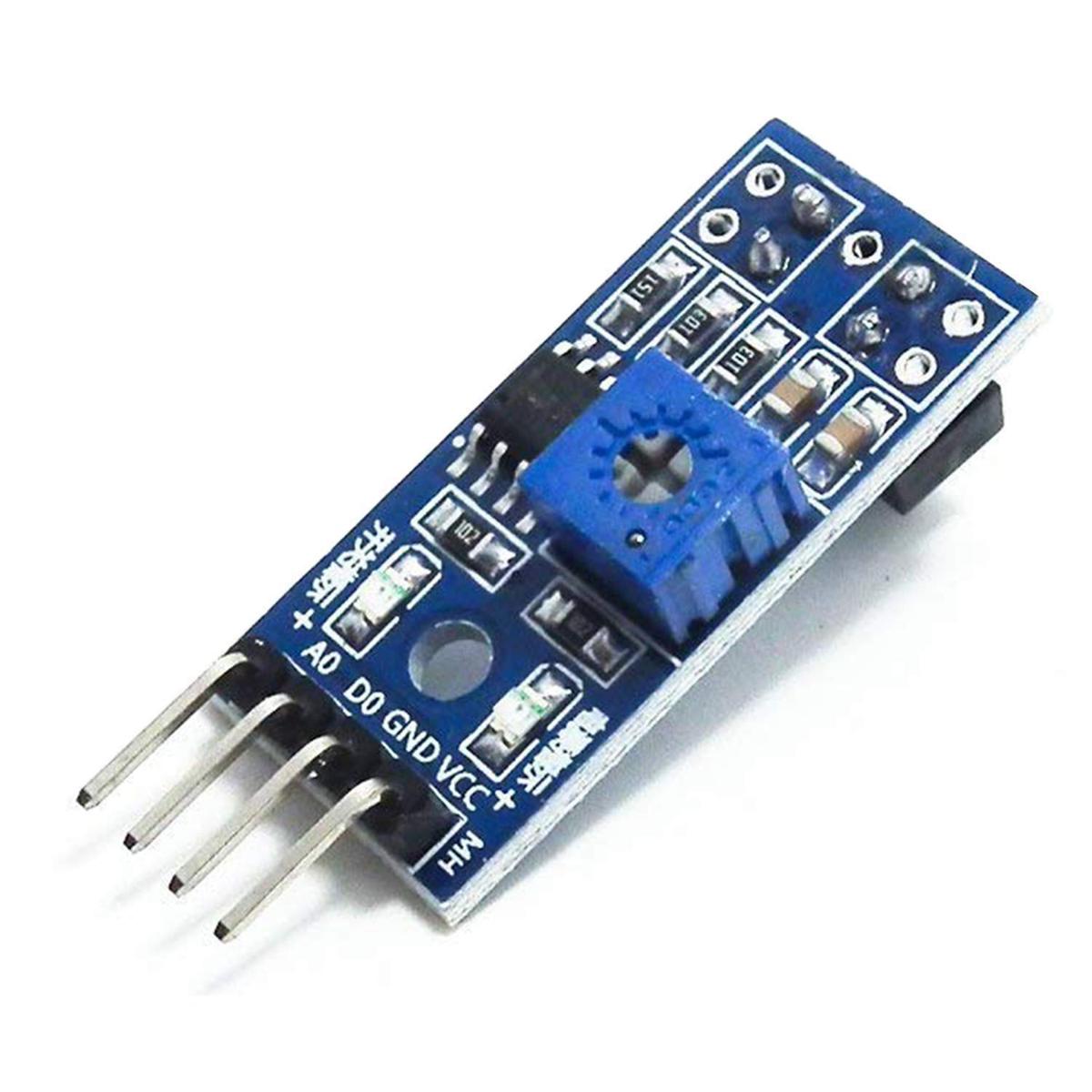

TCRT5000 TCRT 5000 Infrared Sensor Switches Line Track Sensor Module DC 3.3-5V IR Reflective Line Tracking Sensor Obstacle Avoidance Module

Name: TCRT5000 TCRT 5000 Infrared Sensor Switches Line Track Sensor Module DC 3.3-5V IR Reflective Line Tracking Sensor Obstacle Avoidance Module
SKU: UDBD04424
Price: 182 BDT
Availability: InStock

Category: Building Materials

SKU: UDBD04424

Seller: Udvabony BD

Visa/Mastercard 10% Discount(T&C)

Nagad 10% instant Cashback(T&C)

Tk 155

Tk 182

15% OFF

0 review(s)

Using infrared reflection sensors TCRT5000
Test reflection distance: 1mm to 25mm
Clean and the comparator output, signal waveform, driving ability is strong, for more than 15 ma.
With many adjustable precision potentiometer to adjust sensitivity
The working voltage of 3.3V to 5V
Output form: digital switch output (0 and 1)
Has a fixed bolt hole, convenient installation
Small board PCB size: 3.1cm x 1.4cm
The LM393, use of wide voltage comparator

Call For Order : 09613-800800

Description: TCRT5000 Line Following Sensor Module

This is TCRT 5000 Dual Channel Line Tracking sensor module.This IR reflective sensor Module usedTCRT5000IR Sensor to detect color and distance. Thissensormodule consists of an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver.TCRT5000Infrared ReflectiveSensor Moduleis often used in line following robots, object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm and the central point is about 2.5mm.There is also an onboardpotentiometerto adjust the sensitivity. The infrared diode will be emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW.

Features:

Designed with the reflected infrared sensor, indicator light. Built in a potentiometer for sensitivity control. On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000LOnboard signal output instructions, the output is the highly effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection & middot Signal detection sensitivity can adjust Reserve all the way more circuits (P3 voltage drawn)Using the TCRT5000 infrared reflection sensor Output form: digital switch output (0 and 1)A fixed bolt hole, convenient installation.

Specification:

Using infrared reflection sensors TCRT5000Test reflection distance: 1mm to 25mmClean and the comparator output, signal waveform, driving ability is strong, for more than 15 ma.With many adjustable precision potentiometer to adjust sensitivity The working voltage of 3.3V to 5VOutput form: digital switch output (0 and 1)Has a fixed bolt hole, convenient installationSmall board PCB size: 3.1cm x 1.4cmThe LM393, use of wide voltage comparator

Application:

Meter pulse data sampling Fax paper shredders detectionObstacle detectionBlack and white line detection

Package Include:

1 x TCRT5000 Line Following Sensor Module

Using infrared reflection sensors TCRT5000
Test reflection distance: 1mm to 25mm
Clean and the comparator output, signal waveform, driving ability is strong, for more than 15 ma.
With many adjustable precision potentiometer to adjust sensitivity
The working voltage of 3.3V to 5V
Output form: digital switch output (0 and 1)
Has a fixed bolt hole, convenient installation
Small board PCB size: 3.1cm x 1.4cm
The LM393, use of wide voltage comparator
