An audio power amplifier is an electronic amplifier that amplifies low-power electronic audio signal such as the signal from radio receiver or electric guitar pickup to a level that is high enough for driving loud speakers or headphones. Audio power amplifiers are found in all manner of sound systems including sound reinforcement, public address and home audio systems and musical instrument amplifiers like guitar amplifiers. It is the final electronic stage in a typical audio playback chain before the signal is sent to the loudspeakers.

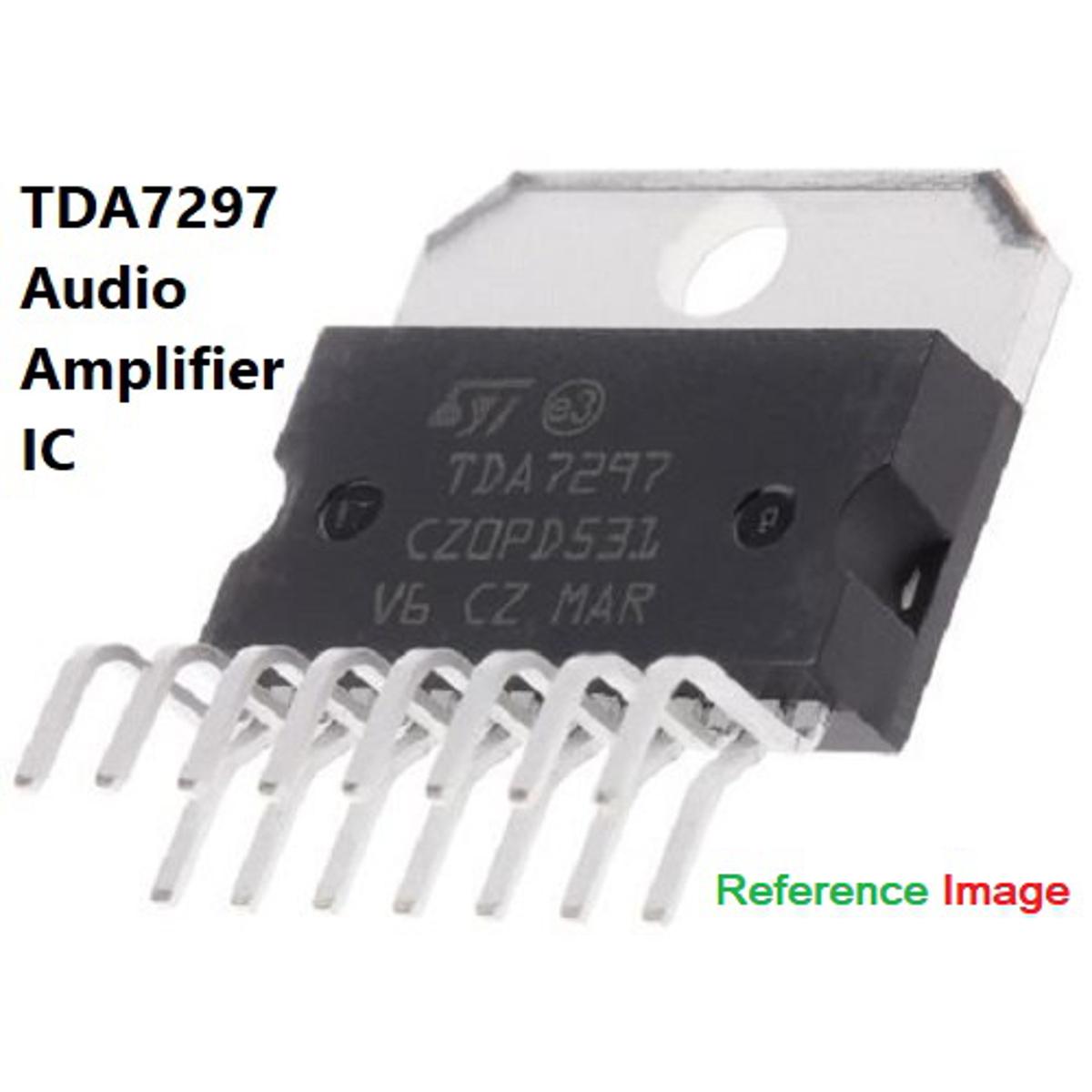

• Part Number: TDA7297
• Amplifier Type: Class-AB
• Mounting Type: Through Hole
• Pin Count: 15
• Power Supply Type: Single
• Maximum Operating Temperature: +70°C
• Dimensions: 19.6 x 5 x 10.7 mm
• Input Signal Type: Single Ended
• Maximum Power:15 W @ 8 Ω
• Minimum Operating Temperature:0°C
• Output Signal Type: Differential
• Output Type: 2 Channel Stereo
• Typical Single Supply Voltage: 9V, 12V, 15V
