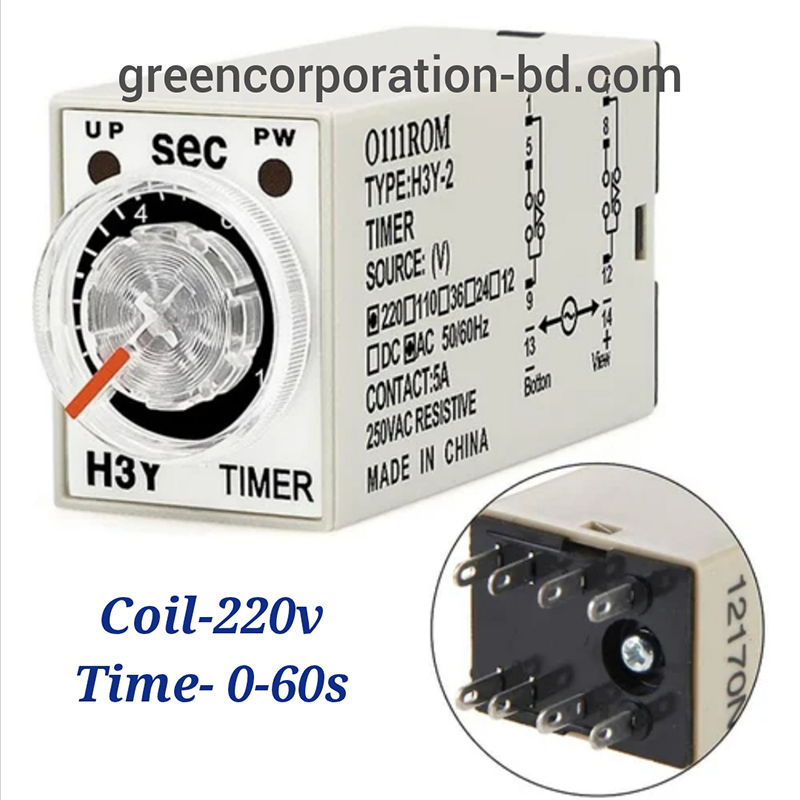

Timer Relay 60 Second Delay Timer Relay Input coill volt: 220vac Connector : 2 way N/C, N/O Contact time: 0-30 Second Time 0-30 SECOND ADJUSTEBLE Connector : 8pin

Rated power supply voltage 100 to 220 VAC 50/60 Hz

Allowable voltage variable range 85 to 110% of the power supply voltage

Power consumption Approx. 1.5 VA (at 120 VAC)

Reset voltage 10% min, of rated supply voltage

Number of time ranges 1

Operation mode Power ON-delay

Control output (Type) Time-limit: DPDT

Control output (Contact output) Resistive load: 250 VAC 5 A (cosφ=1)

Minimum applicable load: 1 mA at 5 VDC (failure level: P)

Operating resetting Time-limit operation/Self-reset

Ambient temperature range Operating: -10 to 50 ℃ (with no icing)

Storage: -25 to 65 ℃ (with no icing)

Ambient humidity range Operating: 35 to 85 %

Accuracy of operating time ±1% FS max.

Setting error ±10% FS ±50 ms max.

Reset time 0.1 s max. (including halfway reset)

Influence of voltage ±2% FS max.

Influence of temperature ±2% FS max.

Insulation resistance 100 MΩ min. (at 500 VDC)

Dielectric strength Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded)

Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min

Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min

Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min

Impulse withstand voltage Between power terminals: 3 kV

Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV

Noise immunity ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)

Static immunity Mulfunction: 4 kV, Destruction: 8 kV

Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour

Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min

Shock resistance Destruction: 1,000 m/s2, 3 times each in 6 directions

Malfunction: 100 m/s2, 3 times each in 6 directions

Life expectancy (relay output) Electrical: 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h, Room temperature)

Mechanical: 10 million operations min. (under no load at 1,800 operations/h)

Degree of protection IP40

Connecting method 8-pin round socket

Case color Beige

Weight Approx. 50 g

Applicable socket PYFZ-08/ PYFZ-08-E/ PYF08M/ PY08/ PY08-02
