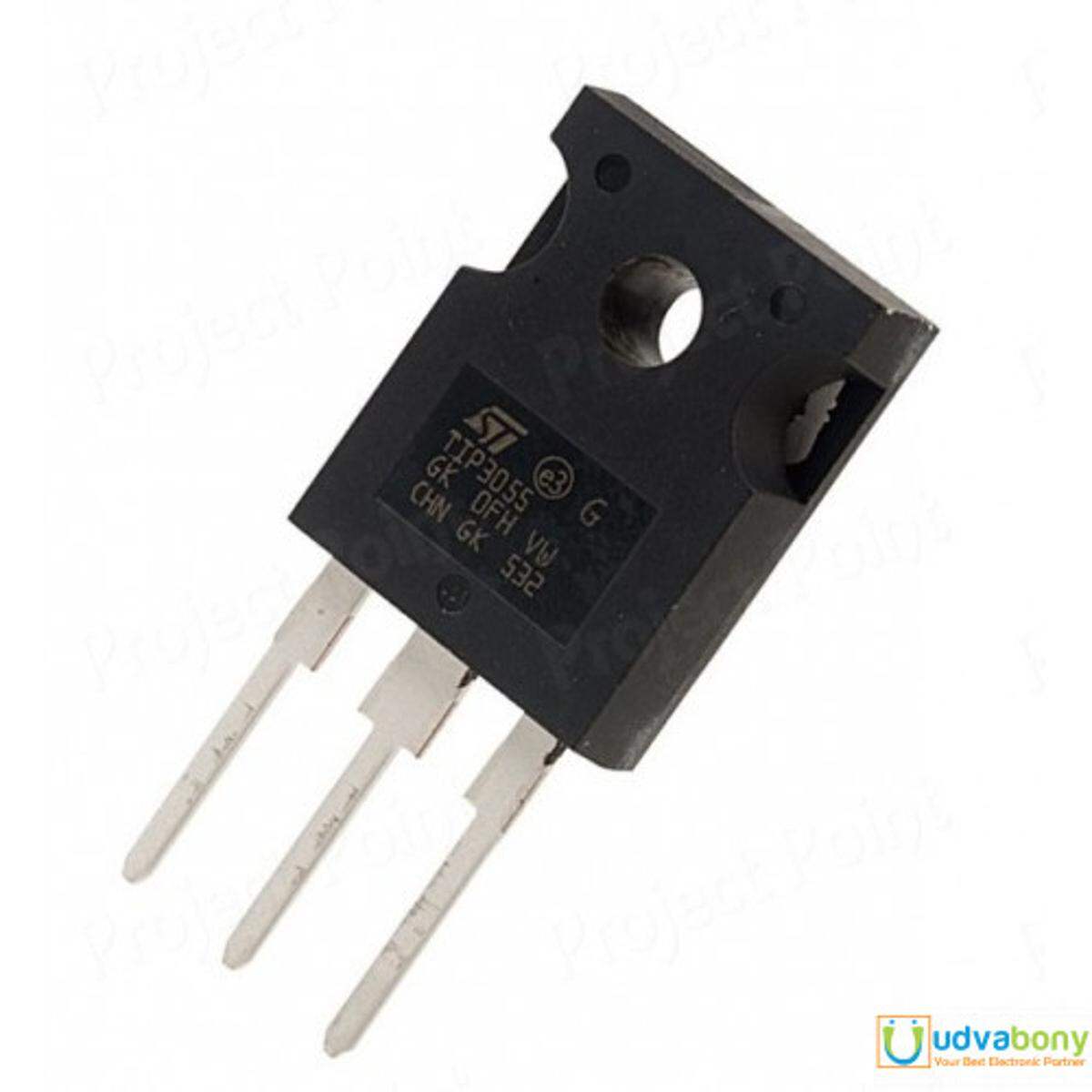

TIP3055 TIP-3055 TIP 3055 NPN Transistor 60V 15A Darl-ington Power Transistor Silicon Amplifiers TO-247 High Speed Switching Transistor Electrical Circuitry & Parts

The TIP3055 is a silicon epitaxial-base planar NPN transistor mounted in TO-218 plastic package and intended for power switching circuits, series and shunt regulators, output stages and hi-fi amplifiers

Features:

• Type : General Purpose.
• TIP3055 TIP 3055 Transistor NPN 60V 15A.
• RoHS Compliance: Yes.
• Case/Package Type: TO-247,
• Transistor Type: NPN

TIP3055 Key Features

• DC Current Gain −
  • hFE = 20−70 @ IC = 4.0 Adc
• Collector−Emitter Saturation Voltage −
  • VCE(sat) = 1.1 Vdc (Max) @ IC = 4.0 Adc
• Type Designator: TIP3055
• Material of Transistor: Si
• Polarity: NPN
• Maximum Emitter-Base Voltage |Veb|: 7 V

TIP3055 Equivalent/Alternate:

• TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP110, TIP2955

Application

• General–Purpose Switching
• Audio Amplifier

Package Include:

• 1 x TIP3055 TIP-3055 TIP 3055 NPN Transistor 60V 15A Darlington Power Transistor Silicon High Voltage Amplifier TO-247 High Speed Switching Transistor
