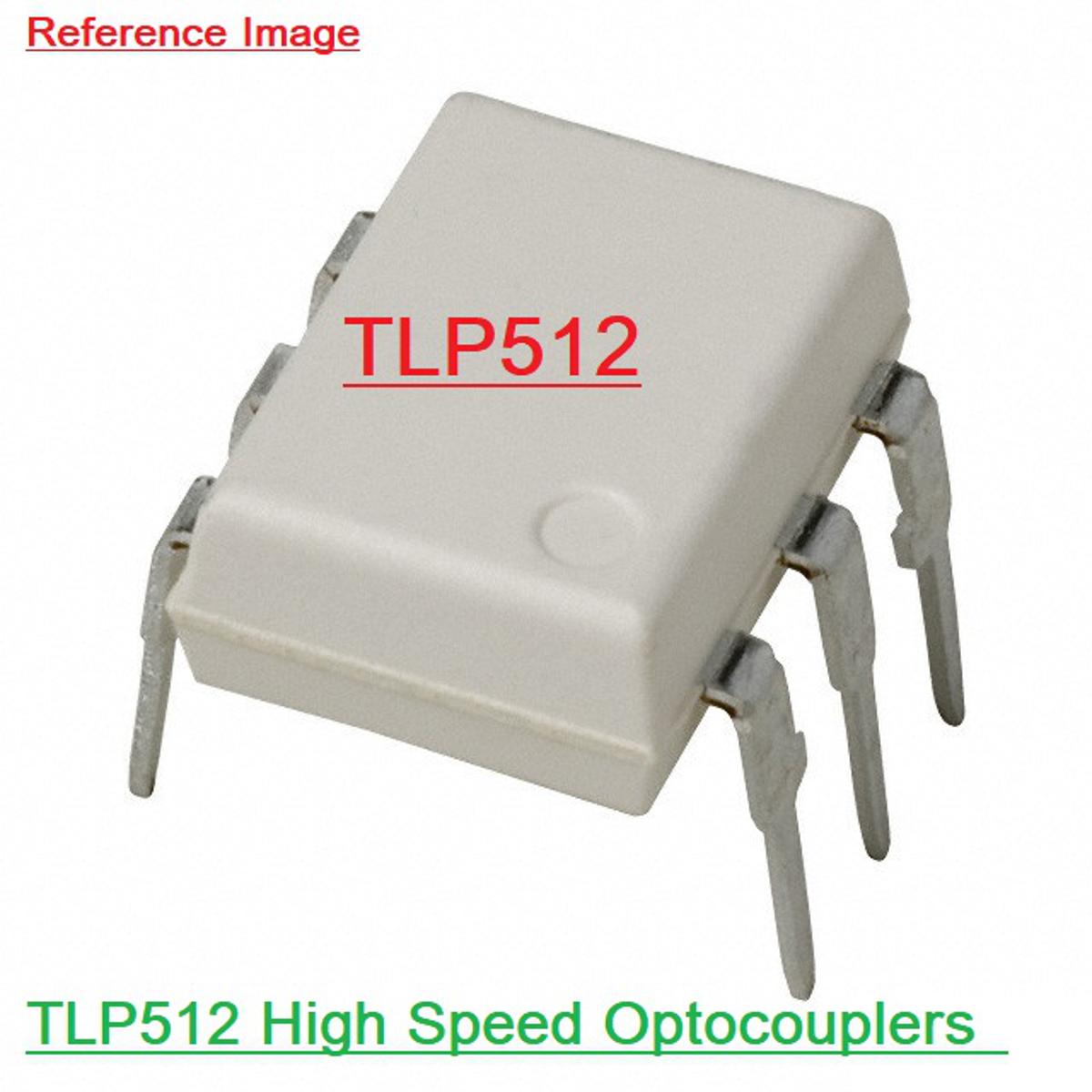

Description: TLP512 High Speed Optocouplers

Features:

Product Category: High Speed Optocouplers Manufacturer: Toshiba RoHS: RoHS Compliant Details Package / Case: PDIP-6 Data Rate: 1 Mbps Number of Channels: 1 Channel Output Type: Photo IC Isolation Voltage: 2500 Vrms Vf – Forward Voltage: 1.65 V If – Forward Current: 16 mA Vr – Reverse Voltage: 5 V Pd – Power Dissipation: 100 mW Current Transfer Ratio: 20 % to 40 % Maximum Operating Temperature: + 100 C Minimum Operating Temperature: – 55 C Series: TLP512 Packaging: Tube Brand: Toshiba Height: 3.65 mm Length: 7.12 mm Maximum Collector Current: 8 mA Operating Supply Voltage: 5 V Output Current: 8 mA Factory Pack Quantity: 50 Width: 6.4 mm

• Product Category: High Speed Optocouplers
• Manufacturer: Toshiba
• RoHS: RoHS Compliant Details
• Package / Case: PDIP-6
• Data Rate: 1 Mbps
• Number of Channels: 1 Channel
• Output Type: Photo IC
• Isolation Voltage: 2500 Vrms
• Vf – Forward Voltage: 1.65 V
• If – Forward Current: 16 mA
• Vr – Reverse Voltage: 5 V
• Pd – Power Dissipation: 100 mW
• Series: TLP512
• Packaging: Tube
• Brand: Toshiba
• Height: 3.65 mm
• Length: 7.12 mm
• Maximum Collector Current: 8 mA
• Operating Supply Voltage: 5 V
• Output Current: 8 mA
• Factory Pack Quantity: 50
• Width: 6.4 mm
