TM1637 LED Display Module for Arduino

Description: TM1637 LED Display Module for Arduino

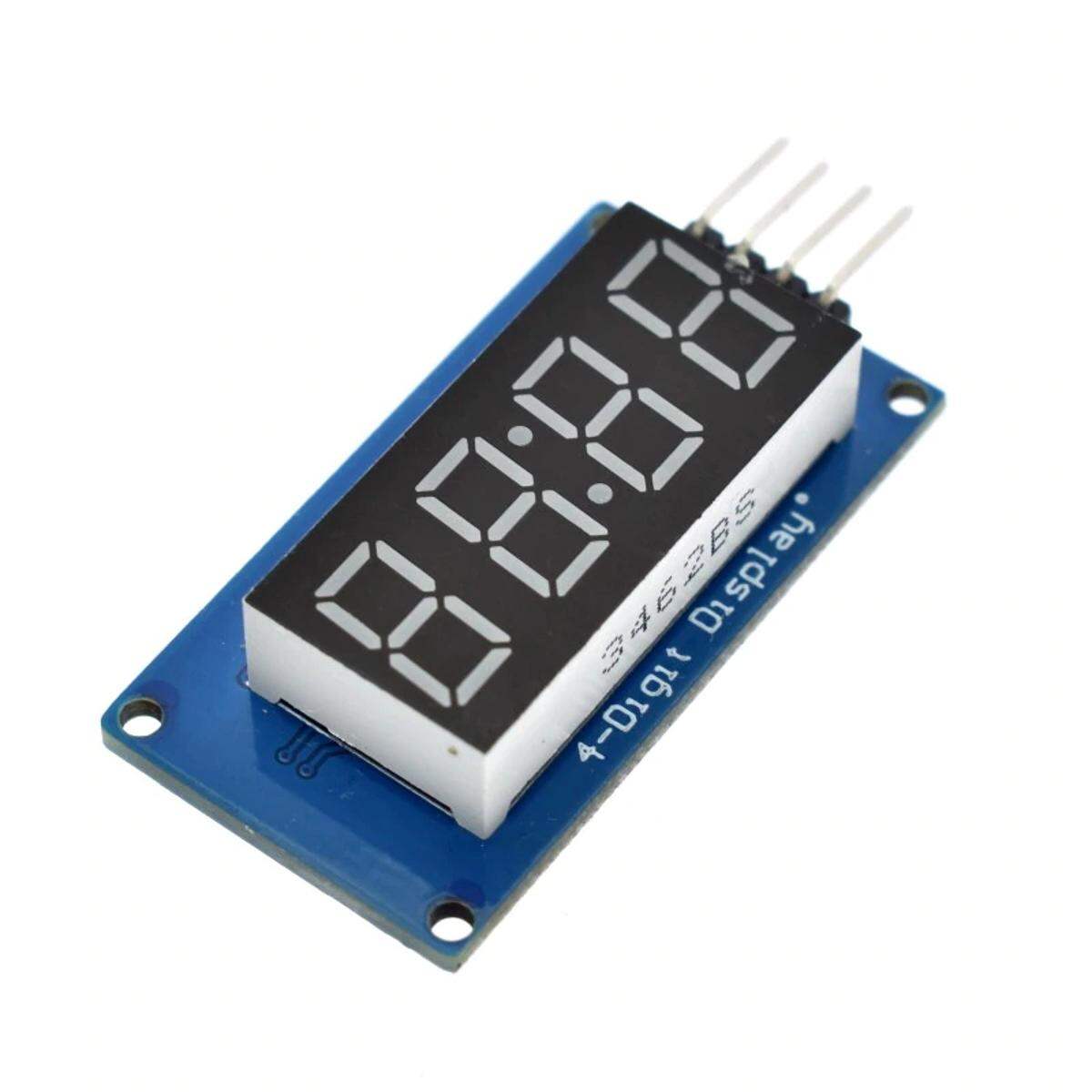

The TM1637 4 Bits Digital Tube LED Display Module is an affordable solution for displaying the output data of your Arduino project. Though the data displayed is restricted by numbers still it allows users to display some characters too like A, B, C etc.This 7 segment LED Display. has 4 digits which are controlled by TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Bits Digital Tube LED Display Module. Also thanks to the 12C Bus you can control it using only 2 wires, leaving more pins available on your Microcontroller to connect other things.The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes.There are several modules using thisTM1637 chip to form a 4 digit numerical display module.

TM1637 has also keyboard input capability but is not used in this module.

LED Display module to Arduino

GND

–

GNDVcc

–

5VDIO

–

D2CLK

–

D3Features:

Display of male red for the four digital tubeAdjustable digital tube 8 grayLevel control interface for 5V or 3.3V4 M2 screws positioning holes for easy installationControl Interface: A total of four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO of data input and output pin, CLK is the clock signal pin;Digital tube: 4 common anode score points with 0.36 inches LED, red highlights;Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination;

Specifications:

Display common anode for the four red LEDDigital tube 8 gray adjustablePower supply: 3.3V-5.5VDC,typical:5VCurrent:80mA @5V,typical:30mASize:42*24*12mm

Documents:

user_guide_for_tm1637_4_digits_display_Yr8LQNg7dV

Package Includes :

1 x TM1637 LED Display Module for Arduino
