TOP CLASS Power Bank Circuit Dual USB 5V 2.4A Type-C Micro Lightning USB Mobile Power Bank 18650 Charging Module Lithium Battery Charger Board Circuit Overcharge Overdischarge Short Protection Adapters

Description: Power Bank Circuit Dual USB DC 5V 2.4A

TOP CLASS Power Bank Circuit Dual USB 5V 2.4A Type-C Micro Lightning USB Mobile Power Bank 18650 Charging Module Lithium Battery Charger Board Circuit Overcharge Overdischarge Short Protection

Best Quality Power Bank Circuit Dual USB DC 5V 2.4A Micro USB & Type-C USB With Display Charging Module Lithium Battery 18650 Charger Board Circuit Protection Mobile Smart Phone Charger. This power supply module with 5 ports and LED display is perfect for DIY power bank.

Specifications:

Parameter:

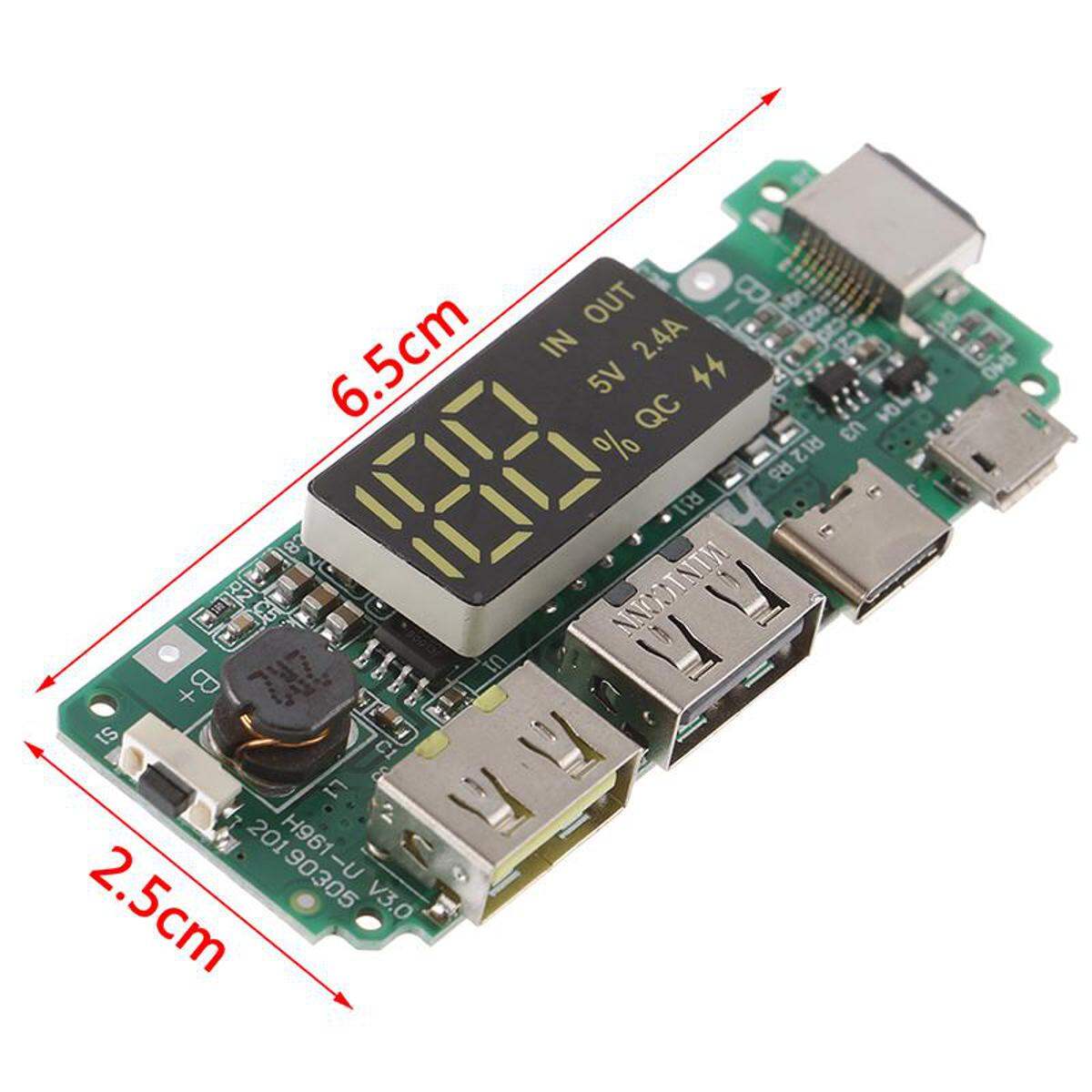

Size: 6.5 * 2.5cm

IR of PCM : Less than or equal to65 momega

Allowed 0V change: Yes

Constant current: 2.4A

Dual output current: 5V 2.4A

Input voltage B+ to B-: 3.0 – 4.2V

Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB

Button function: Press and hold the button after standby, the LED digital screen displays the power

Features:

1.LED Indicator Display:

The LED digital screen displays the current battery charge while charging.

When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).

The system will provide an accurate battery indication after a complete charge and discharge.

2.Prevent Overcharge Protection:

Detection voltage: 4.20plus-minus0.05V

Release voltage: 4.100plus-minus0.05V

Detection delay time: Less than200 ms

3.Prevent Over discharge Protection:

Detection voltage: 3.0plus-minus0.10V

Release voltage: 3.10plus-minus0.10V

Detection delay time: Less than100 ms

4.Short Circuit Protection:

Short detection delay time: Less than50 microsecond

Release Conditions: Cut off load

5.Normal Current Consumption:

Normal current consumption of PCM: Max 60 microamp

Standby current consumption: Max 50 microamp

6.Suggest Working Conditions:

Max continuous charge/discharge current: 1.5/2.4A

Suggest working temperature: -5-45Celsius

Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!

This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.

Notes:

The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!

There might be some deviation due to manual measurement.

Do not use it to charge any batteries of complicated equipment such as mobile phone, automobile, etc.
