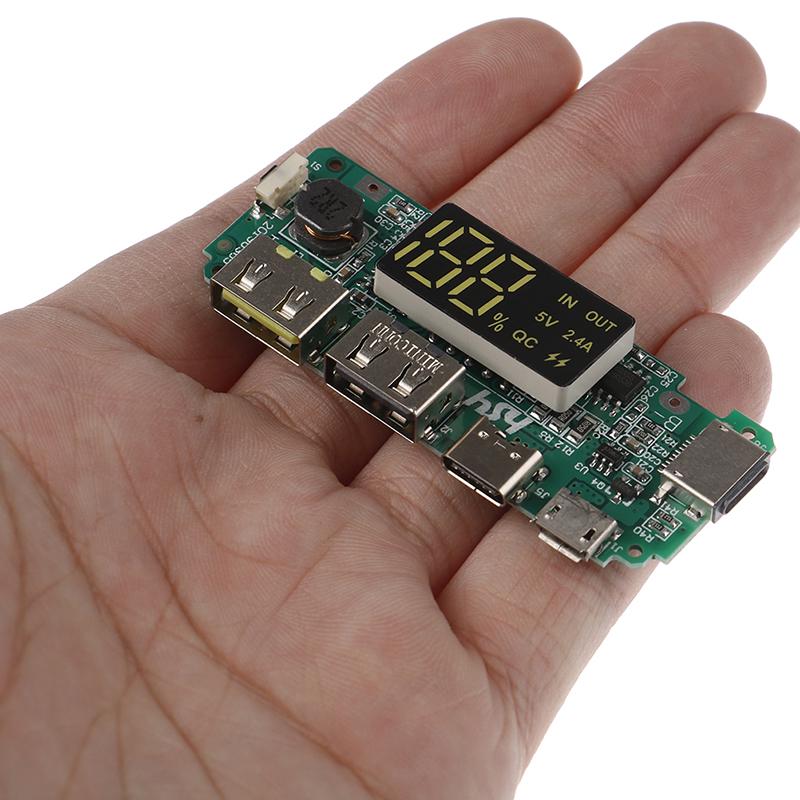

Picture of TOP CLASS Power Bank Circuit Dual USB 5V 2.4A Type-C Micro USB 18650 Charging Module Lithium Battery Charger Overcharge Overdischarge 18650 Battery Charger
Picture of TOP CLASS Power Bank Circuit Dual USB 5V 2.4A Type-C Micro USB 18650 Charging Module Lithium Battery Charger Overcharge Overdischarge 18650 Battery Charger

TOP CLASS Power Bank Circuit Dual USB 5V 2.4A Type-C Micro USB 18650 Charging Module Lithium Battery Charger Overcharge Overdischarge 18650 Battery Charger

Category: Building Materials
SKU: UDBD06558
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 221
Tk 260
Tk 260
15% OFF
0 review(s)
  • Parameter:
  • Size: 6.5 * 2.5cm
  • IR of PCM : Less than or equal to65 momega
  • Allowed 0V change: Yes
  • Constant current: 2.4A
  • Dual output current: 5V 2.4A
  • Input voltage B+ to B-: 3.0 – 4.2V
  • Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB
  • Button function: Press and hold the button after standby, the LED digital screen displays the power

Call For Order : 09613-800800
  • 1.LED Indicator Display:
    The LED digital screen displays the current battery charge while charging.
    When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).
    The system will provide an accurate battery indication after a complete charge and discharge.
  • 2.Prevent Overcharge Protection:
    Detection voltage: 4.20plus-minus0.05V
    Release voltage: 4.100plus-minus0.05V
    Detection delay time: Less than200 ms
  • 3.Prevent Over discharge Protection:
    Detection voltage: 3.0plus-minus0.10V
    Release voltage: 3.10plus-minus0.10V
    Detection delay time: Less than100 ms
  • 4.Short Circuit Protection:
    Short detection delay time: Less than50 microsecond
    Release Conditions: Cut off load
  • 5.Normal Current Consumption:
    Normal current consumption of PCM: Max 60 microamp
    Standby current consumption: Max 50 microamp
  • 6.Suggest Working Conditions:
    Max continuous charge/discharge current: 1.5/2.4A
    Suggest working temperature: -5-45Celsius
    Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
    This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.





  • Parameter:
  • Size: 6.5 * 2.5cm
  • IR of PCM : Less than or equal to65 momega
  • Allowed 0V change: Yes
  • Constant current: 2.4A
  • Dual output current: 5V 2.4A
  • Input voltage B+ to B-: 3.0 – 4.2V
  • Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB
  • Button function: Press and hold the button after standby, the LED digital screen displays the power
