Specifications:

• Parameter:
• Size: 6.5 * 2.5cm
• IR of PCM : Less than or equal to65 momega
• Allowed 0V change: Yes
• Constant current: 2.4A
• Dual output current: 5V 2.4A
• Input voltage B+ to B-: 3.0 – 4.2V
• Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB

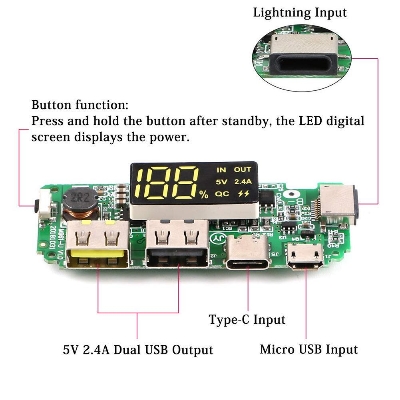

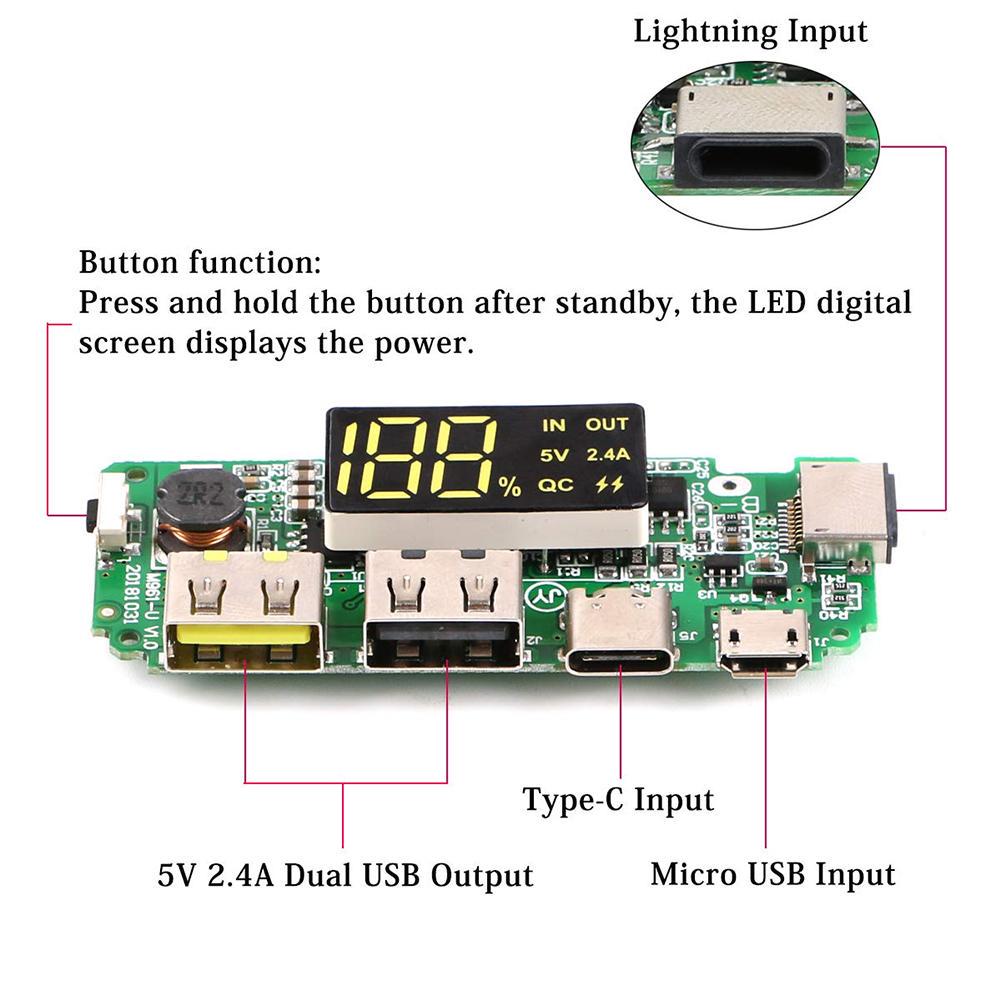

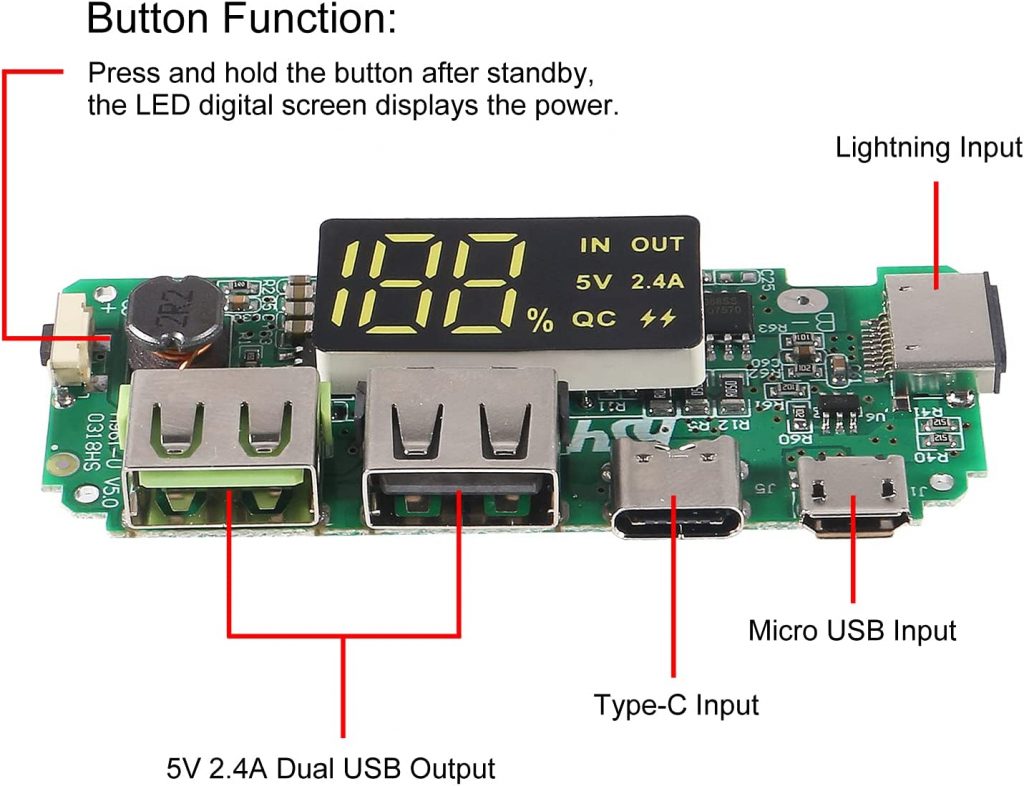

• Button function: Press and hold the button after standby, the LED digital screen displays the power

Features:

• 1.LED Indicator Display: The LED digital screen displays the current battery charge while charging. When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display). The system will provide an accurate battery indication after a complete charge and discharge.
• 2.Prevent Overcharge Protection: Detection voltage: 4.20plus-minus0.05V Release voltage: 4.100plus-minus0.05V Detection delay time: Less than200 ms
• 3.Prevent Over discharge Protection: Detection voltage: 3.0plus-minus0.10V Release voltage: 3.10plus-minus0.10V Detection delay time: Less than100 ms
• 4.Short Circuit Protection: Short detection delay time: Less than50 microsecond Release Conditions: Cut off load
• 5.Normal Current Consumption: Normal current consumption of PCM: Max 60 microamp Standby current consumption: Max 50 microamp
• 6.Suggest Working Conditions: Max continuous charge/discharge current: 1.5/2.4A Suggest working temperature: -5-45Celsius Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!! This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.

Notes:

• The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!
• There might be some deviation due to manual measurement.
• Do not use it to charge any batteries of complicated equipment such as mobile phone, automobile, etc.

• ● Size: 6.5 * 2.5cm
• ● IR of PCM : Less than or equal to65 momega
• ● Allowed 0V change: Yes
• ● Constant current: 2.4A
• ● Dual output current: 5V 2.4A
• ● Input voltage B+ to B-: 3.0 – 4.2V
• ● Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB
• ● Button function: Press and hold the button after standby, the LED digital screen displays the power
