Overview:

• 300Mbps wireless transmission rate, brings smooth wireless N experience
• Supports multiple operating modes: Access Point, Client, Universal/ WDS Repeater, Wireless Bridge
• Easily setup a WPA encrypted secure connection at a push of the QSS button
• Up to 30 meters（100 feet） Power over Ethernet* capability for flexible deployment

Specifications:

HARDWARE FEATURES

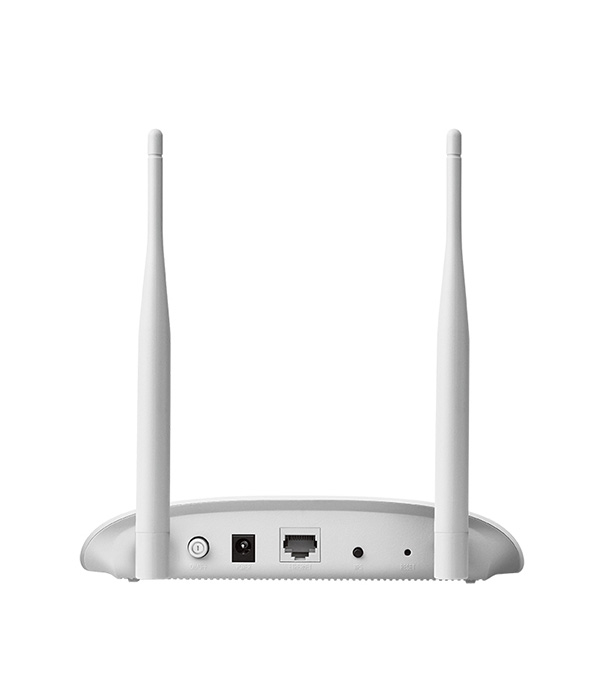

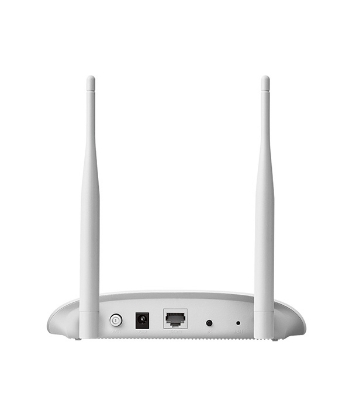

Interface    One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button    Power On/Off Button
WPS Button
Reset Button
External Power Supply    9VDC / 0.85A
Wireless Standards    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )    7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type    2*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency    2.4-2.4835GHz
Signal Rate    11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity    270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power    <20dBm(EIRP)
Wireless Modes    AP Mode
Multi-SSID Mode
Client Mode
Repeater Mode (WDS/Universal)
Bridge with AP Mode
Wireless Functions    Enable/Disable Wireless Radio
WDS Bridge
MAC Address Filter
Wireless Security    64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service    WMM
Management    SNMP
Advanced Functions    Up to 30 meters Passive PoE is supported
OTHERS
Certification    CE, FCC, RoHS

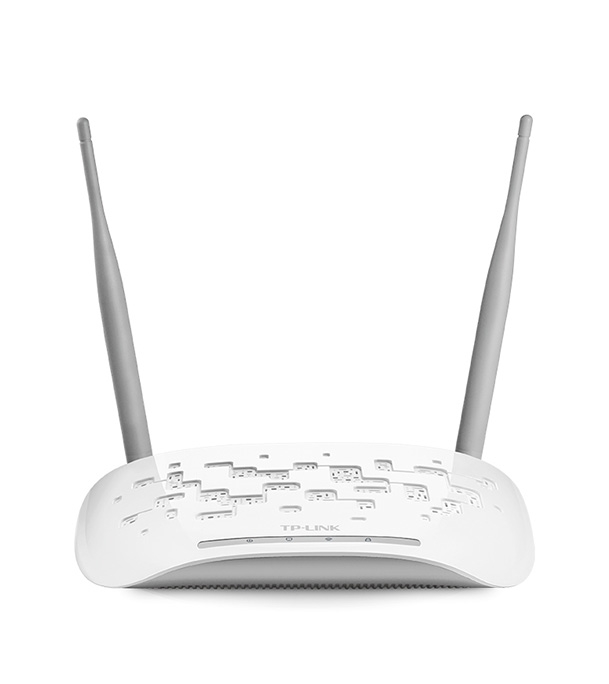

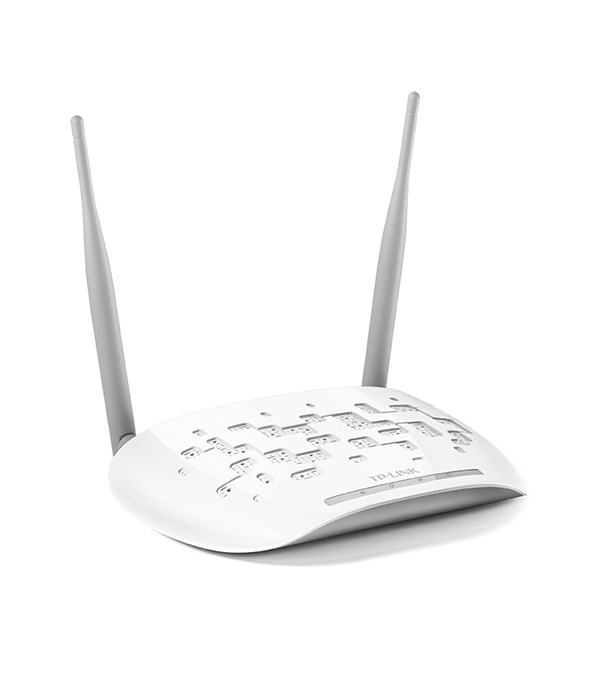

Package Contents    Wireless Access Point TL-WA801ND
2 Detachable Omni directional antennas
Power supply unit
Passive PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable
System Requirements    Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC OS, NetWare, UNIX or Linux.
Environment    Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Warranty:

One year warranty
