Overview:

• 300Mbps wireless transmission rate, brings smooth wireless N experience
• Supports multiple operating modes: Access Point, Client, Universal/ WDS Repeater, Wireless Bridge
• Easily setup a WPA encrypted secure connection at a push of the QSS button
• Up to 30 meters（100 feet） Power over Ethernet capability for flexible deployment

Specifications:

HARDWARE FEATURES

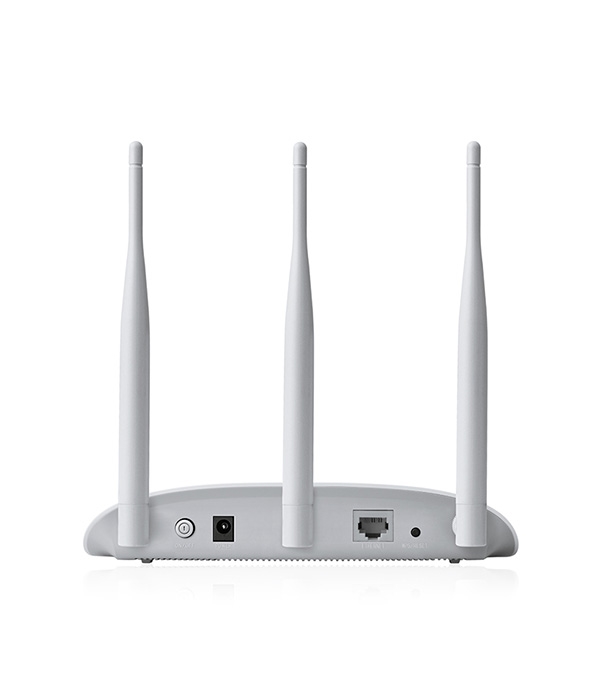

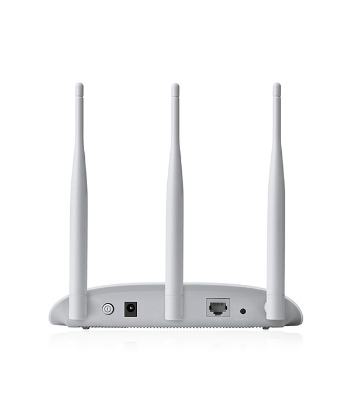

Interface    One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button    WPS/Reset, Power On/Off
Power Consumption    5.8W
External Power Supply    12VDC/1A
Wireless Standards    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )    7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)
Antenna Type    3*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency    2.4-2.4835GHz
Signal Rate    11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity    270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power    <20dBm(EIRP)
Wireless Modes    Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions    Enable/Disable Wireless Radio;
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security    64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
DHCP    DHCP Server
Quality of Service    WMM
Management    SNMP
Advanced Functions    Up to 30 meters PoE is supported
OTHERS
Certification    CE, FCC, RoHS

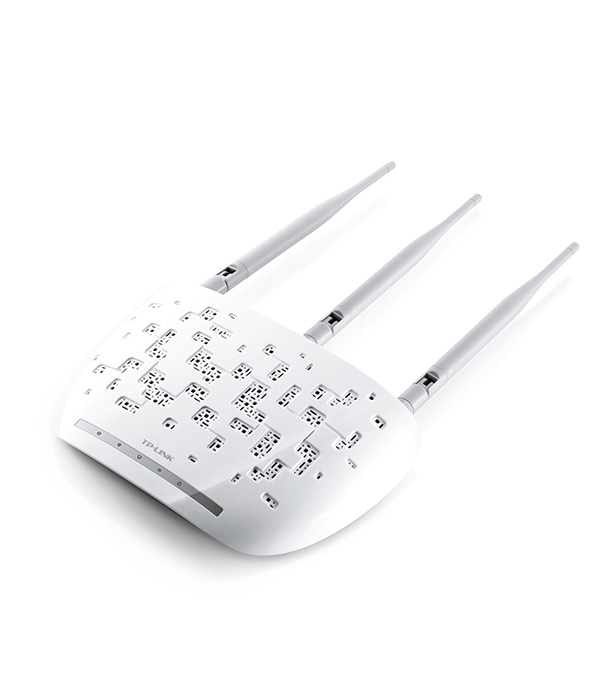

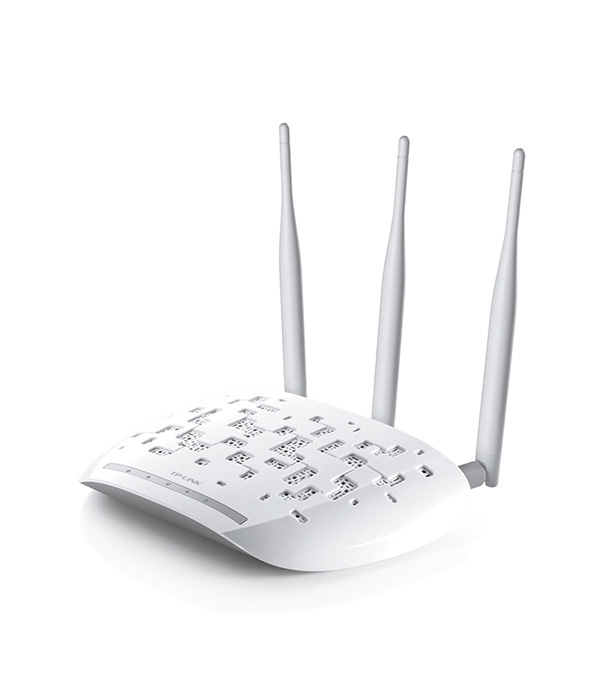

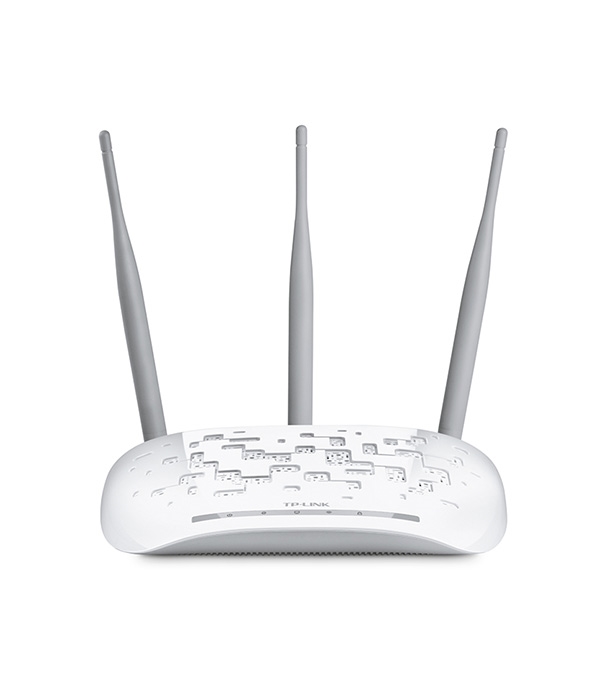

Package Contents    Wireless Access Point TL-WA901ND
3 Detachable Omni Directional Antennas
Power Supply Unit
PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable
System Requirements    Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment    Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Warranty:

One year warranty
