TP4056 Lithium Battery Charger With Protection - Multicolor

Descriptions: TP4056 Lithium Battery Charger With Protection

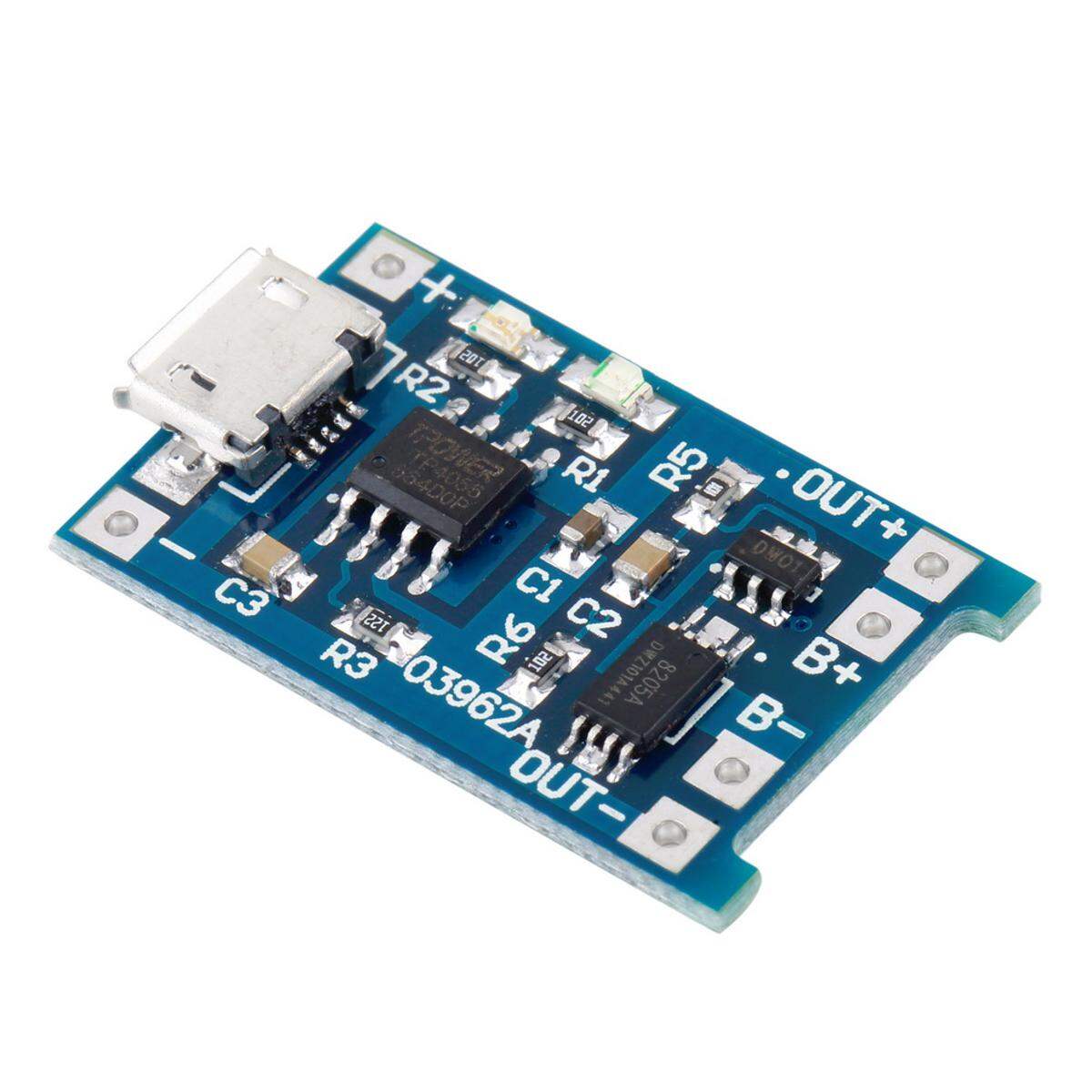

This module uses the TP4056 Li-Ion charge controller IC and a separate protection IC. There are other types of modules on the market that use the TP4056 but lack any protection circuits or ICs to provide the necessary protection needed with lithium batteries. This module uses both the TP4056 and the DW01A Li-Ion battery protection IC, which together in combination provide the following protection features:Manage the constant current to constant voltage charging of a connected lithium batteryOver-discharge protection - keeps your battery from being discharged below 2.4V, a healthy minimum voltage level for your batteryIf a connected battery has been discharged below 2.4V the module will cut output power from the battery until the battery voltage has been re-charged above 3.0V (the over-discharge release voltage), which at that time the module will again allow discharge of power from the battery to a connected load. Although the module cuts output power from the battery during an over-discharge situation, it still allows charging of the battery to occur through the parasitic diode of the discharge control MOSFET (FS8205A Dual MOSFET).Overcharge protection - the module will safely charge your battery to 4.2VOvercurrent and short-circuit protection - the module will cut the output from the battery if the discharge rate exceeds 3A or if a short-circuit condition occursSoft-start protection limits inrush currentTrickle charge (battery reconditioning) - if the voltage level of the connected battery is less than 2.9V, the module will use a trickle charge current of 130mA until the battery voltage reaches 2.9V, at which point the charge current will be linearly increased to the configured charge current.Can be powered, for charging, from a micro USB cable or the + and - connections, seePower Supply Options Diagrambelow. The power source needs to be able to provide at least 1A for the charger to correctly charge a connected battery. Most modern phone/USB chargers can provide 1A or more; refer to the label on your phone charger to verify. If you use the micro USB connection, be sure to use a USB cable that is made to carry at least 1A.Includes two indicator LEDs. Red LED indicates charging. Blue LED indicates charge complete.The charge current can be configured externally with the Rprog resistor (R3, see below diagram). The datasheet for the TP4056 (refer to link inresources sectionbelow) includes a table and equation for what resistor values to use for configuring different charge currents.The module uses a very small amount of current (in the micro amps) whenever it is connected to a battery. It is fine to leave it connected to a battery for long periods, but if you plan to not charge the battery within four months then we recommend disconnecting the module from the battery.You can connect two lithium battery cells in parallel to form an equivalent single cell battery with a total capacity of twice that of the individual single cells, but we do not recommend connecting more than two cells at a time to this module. Refer to theTwo Parallel Cell Connectiondiagram below. Care must be taken when setting up this type of configuration; refer toPrecautionary Note 1concerning precautions to connecting parallel cells.

Specifications:

1. MINI USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.2. It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection.3. Input voltage: 5V4. Charging cut-off voltage: 4.2V5. Maximum charge current: 1000mA6. Battery over-discharge protection voltage: 2.5V7. Battery overcurrent protection current: 3A8. Board size : 17.16 mm x 26.17 mmNOTE:Due to the nature and characteristics of lithium-ion batteries Addicore is not responsible or liable for any damages, malfunction, injuries, fire, burns, or any other consequences or results that may occur with incorrect or correct use of this module or any battery, device, or item this module is used with, including following or using any instructions, guidance, or direction of any kind from Addicore or others. By purchasing this product you accept the preceding.

Use Methode:

Input voltage can be input through the USB or IN+, IN- , IN+ voltage positive, IN- negative electrode.D1 is full of electric light, green LEDOUT+, OUT- connected to the load, the interface does not support charging and discharging over current protection.VBAT+, VBAT- lithium battery charging, VBAT+ connect the positive electrode of the lithium battery, VBAT- connect the anode of the lithium battery. When charging the red LED D2 light up, green LED D1 goes out. Positive and negative can not be reversed.The best charging current is 0.37 times of the battery capacity, for example, the battery capacity is 1000mAH, the charging current is 400mADocuments:

TP4056 Charge Control IC DatasheetDW01A Battery Protection IC DatasheetFS8205A Dual N-Ch. MOSFET Datasheet

Package Include:

1 x TP4056 Lithium Battery Charger With Protection
