Description: DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board
TPA3116 TPA-3116 D2 Amplifier Board 50Wx2+100W 2.1 Channel Digital Power Amplifiers Board Subwoofer Speakers Stereo Module Noise Cancelling Free Sound Adjustment Power Amplifier DC 12-24V Power Supply

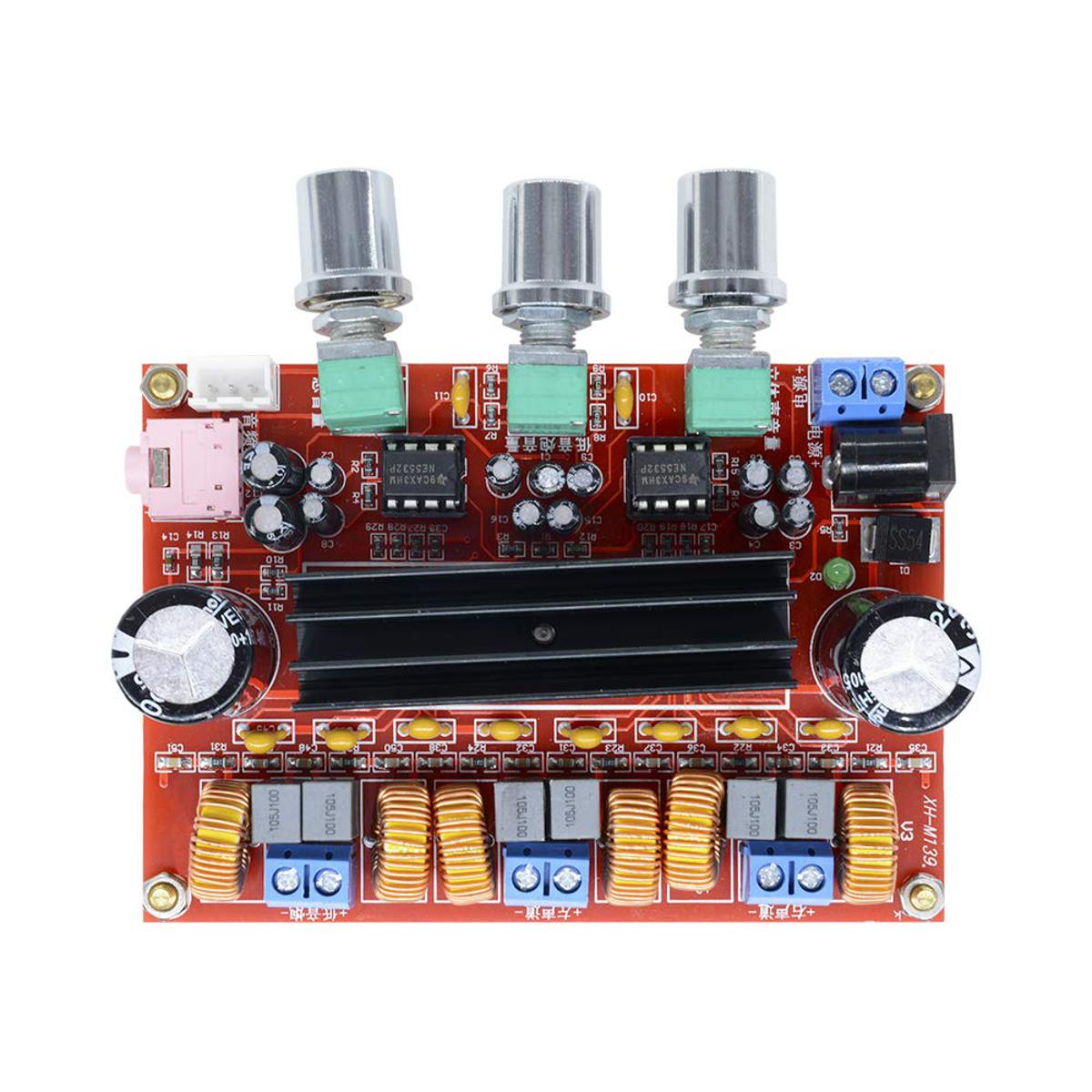

DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board adopts two high-quality TPA3116D2 digital amplifier chips. Sound quality is very good, high efficiency and amplifying power. 50W x 2+100W 2.1 channels (left/right channel and subwoofer channel), high efficiency and low-heat. User can adjust the volume by themselves easily. Powered by DC 12-24V, wide input voltage.

Specifications:
Chip Type: TPA3116X2
Supply Voltage: DC 12~24 V
Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)
Output Power: 50W*2 + 100W*1 Subwoofer
Output Match: 4~8 ohm
Audio Output: Terminals
SNR: 100dB
Frequency Response Range: 14~20KHz
Switching Frequency: 1.2 MHz
PCB Board Size(L*W*H): 100 x 70 x 25 mm
Features:
Adopts two high-quality TPA3116D2 digital amplifier chips.
Sound quality is very good, high efficiency and amplifying power.
50W x 2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Powered by DC 12-24V, wide input voltage.
User can adjust the volume by themselves easily.
Applicable speaker impedance: 4-8 ohm.
Just connect the power supply and loudspeaker box, enjoy the pure digital music!.
Power Supply Setup
A single power supply is required to power up the EVM. Because most of the pins are PVCC compliant, the PVCC supply also can be used to power the analog supply (AVCC) and can be used to pull up the logic pins for shutdown (SD) control and fault detection (FAULT). GVDD is an internally generated supply for the output FETs and also is used to power the PLIMIT voltage divider circuit on the EVM. PLIMIT is GVDD compliant, but not PVCC compliant. PLIMIT also can be powered by an external supply connected to the PLIMIT pin.
