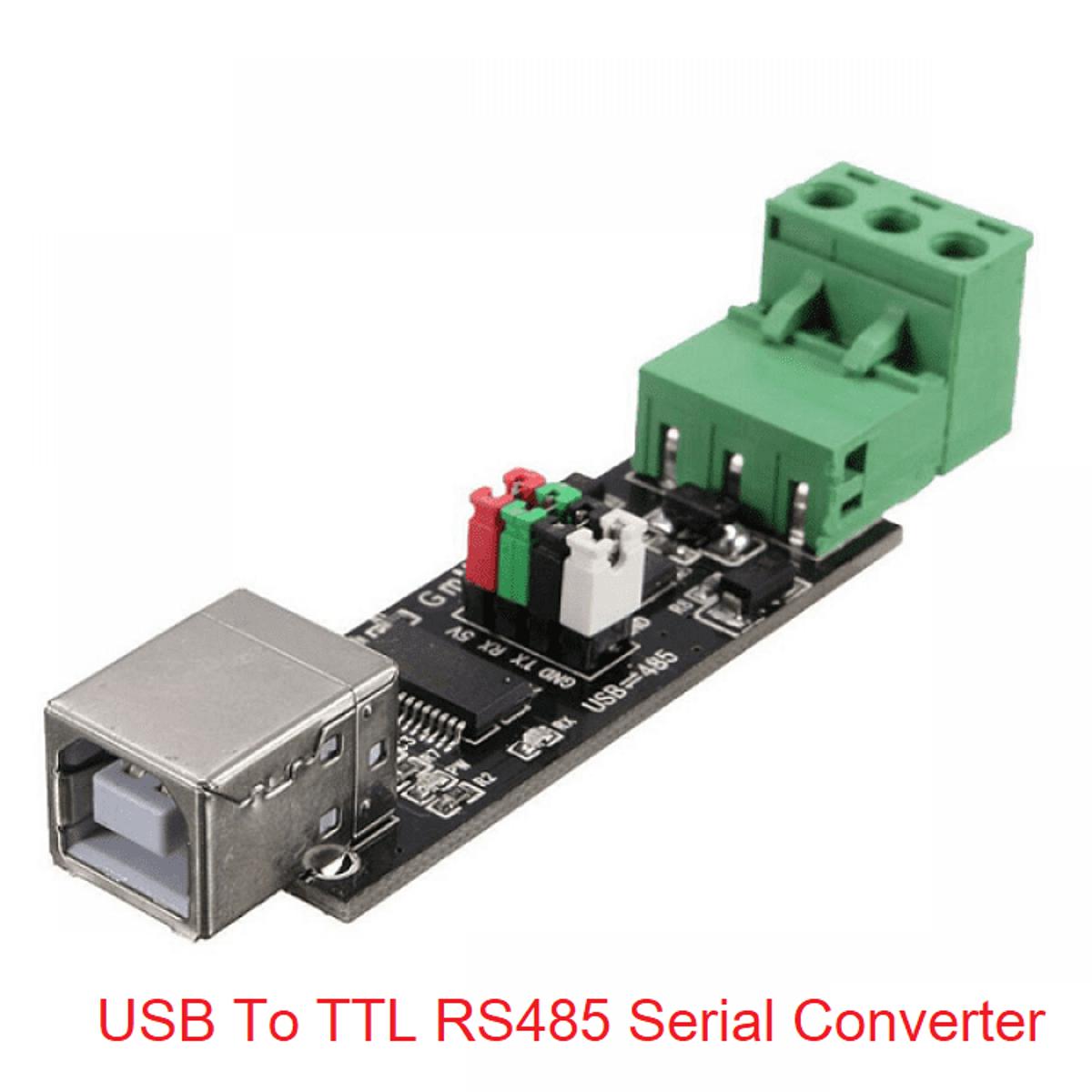

Description: USB To TTL RS485 Serial Converter Adapter Module FT232RL Dual Function For Protection

USB To TTL RS485 Converter Adapter Module FT232RL Dual Function is aFTDI Based USB 2.0 to RS-485 converter module. It supports multi-point communication with each converter able to connect to 32 devices. It provides two way communication moreover you can also use it asUSB to TTL converterorTTL to 485 converteras well.

It supports USB 2.0 standard and has backward compatibility. It is in line with standard RS485 Direction Control. It supports wide baud rate from 300-9216000 bps. It supports various devices with 485 communication like Programmable Logic Controllers (PLC), fingerprint attendance machines, Surveillance Cameras, PBX, CNC Machines etc.

Specifications:

• Support Windows98 / ME / 2000 / XP / WIN7 / Vista / Linux / Mac
• Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX,
• CNC machine, microcontroller, etc.
• This converter provides two way serial communications signal
• Conversion between the RS485
• To and from a personal computer USB port
• Using virtual serial COM port
• Self-powered from USB
• Standard: USB2.0 standard, backward compatible, in line with the standard RS485
• Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
• Baud: 300-9216000bps, automatically detecting the serial signal data rate
• Load capacity: support multipoint, each converter allows RS485 interface device to connect 32 Interface
• Protection: TVS tube protection, USB self-recovery protection
• Size: Approx. 76 x 18.5 x 16mm

Package Included:

• 1 x USB To TTL RS485 Serial Converter Adapter Module FT232RL Dual Function For Protection

• Support Windows98 / ME / 2000 / XP / WIN7 / Vista / Linux / Mac
• Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX,
• CNC machine, microcontroller, etc.
• This converter provides two way serial communications signal
• Conversion between the RS485
• To and from a personal computer USB port
• Using virtual serial COM port
• Self-powered from USB
• Standard: USB2.0 standard, backward compatible, in line with the standard RS485
• Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
• Baud: 300-9216000bps, automatically detecting the serial signal data rate
• Load capacity: support multipoint, each converter allows RS485 interface device to connect 32 Interface
• Protection: TVS tube protection, USB self-recovery protection
• Size: Approx. 76 x 18.5 x 16mm
