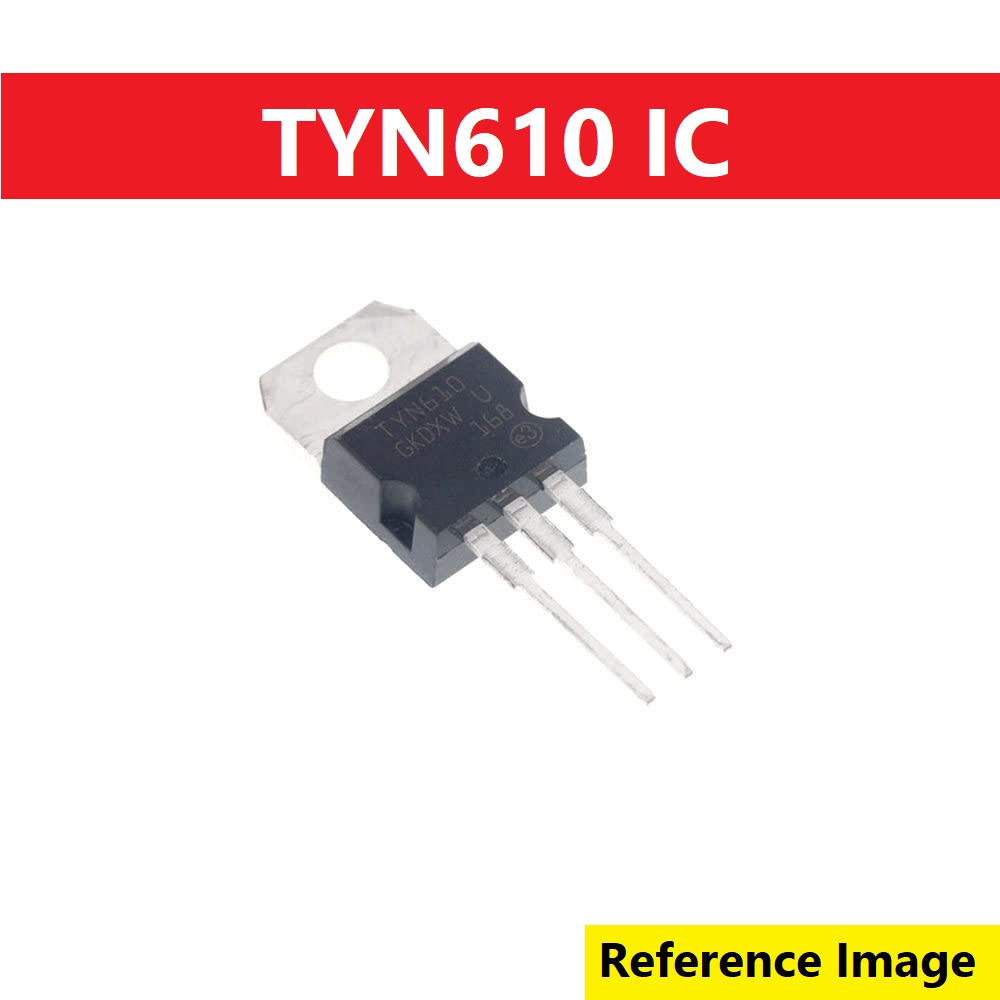

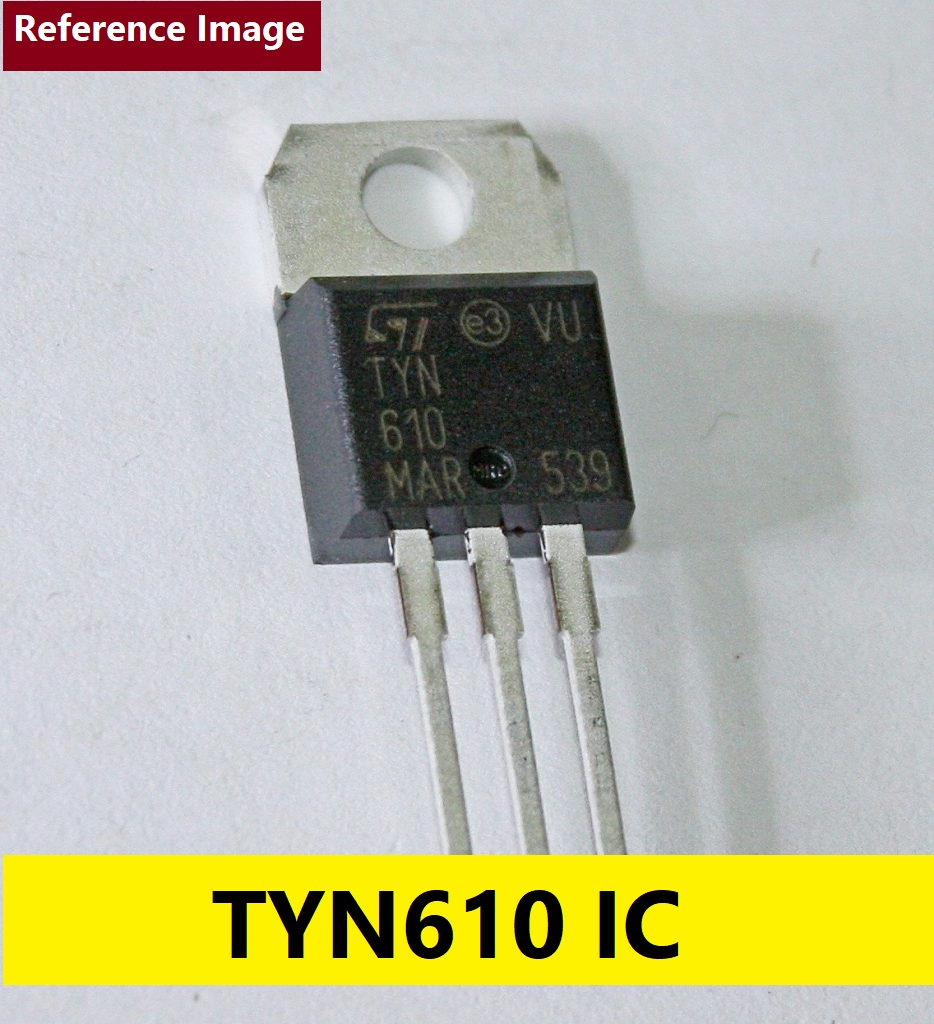

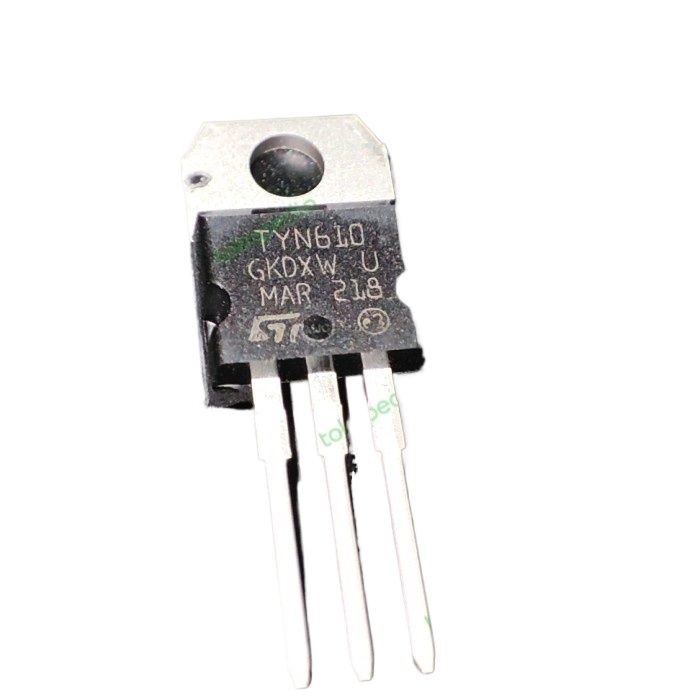

TYN610 IC TYN610 Thyristor SCR 600V 10A TYN610 Transistor TYN610 SCR 10A 600V Thyristor Unidirectional Thyristor SCR TO-220 Package 3 Pin Leads

Category: Building Materials
SKU: UDBD07028
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 122
Tk 143
Tk 143
15% OFF
0 review(s)
  • Maximum Holding Current: 30mA
  • Maximum Operating Temperature: +125 °C
  • Repetitive Peak Off-State Current: 0.01mA
  • Repetitive Peak Forward Blocking Voltage: 600V
  • Repetitive Peak Reverse Voltage: 600V
  • Length: 10.4mm
  • Brand: STMicroelectronics
  • Package Type: TO-220AB
  • Mounting Type: Through Hole
  • Minimum Operating Temperature: -40 °C
  • Width: 4.6mm
  • Height: 9.15mm
  • Rated Average On-State Current: 6.4A
  • Pin Count: 3
  • Dimensions: 10.4 x 4.6 x 9.15mm
  • Peak On-State Voltage: 1.6V
  • Maximum Gate Trigger Voltage: 1.5V
  • Surge Current Rating: 105A
  • Maximum Gate Trigger Current: 15mA
  • Thyristor Type: SCR

Call For Order : 09613-800800

Description:  TYN610 Thyristor SCR

TYN610 IC TYN610 Thyristor SCR 600V 10A TYN610 Transistor TYN610 SCR 10A 600V Thyristor TO-220 Package 3 Pin Leads Unidirectional Thyristor SCR

The TYNx10 Silicon Controlled Rectifiers is a high performance glass passivated technology. This general purpose Silicon Controlled Rectifiers is designed for power supply up to 400Hz on resistive or inductive load.

Specification:

  • Maximum Holding Current: 30mA
  • Maximum Operating Temperature: +125 °C
  • Repetitive Peak Off-State Current: 0.01mA
  • Repetitive Peak Forward Blocking Voltage: 600V
  • Repetitive Peak Reverse Voltage: 600V
  • Length: 10.4mm
  • Brand: STMicroelectronics
  • Package Type: TO-220AB
  • Mounting Type: Through Hole
  • Minimum Operating Temperature: -40 °C
  • Width: 4.6mm
  • Height: 9.15mm
  • Rated Average On-State Current: 6.4A
  • Pin Count: 3
  • Dimensions: 10.4 x 4.6 x 9.15mm
  • Peak On-State Voltage: 1.6V
  • Maximum Gate Trigger Voltage: 1.5V
  • Surge Current Rating: 105A
  • Maximum Gate Trigger Current: 15mA
  • Thyristor Type: SCR
