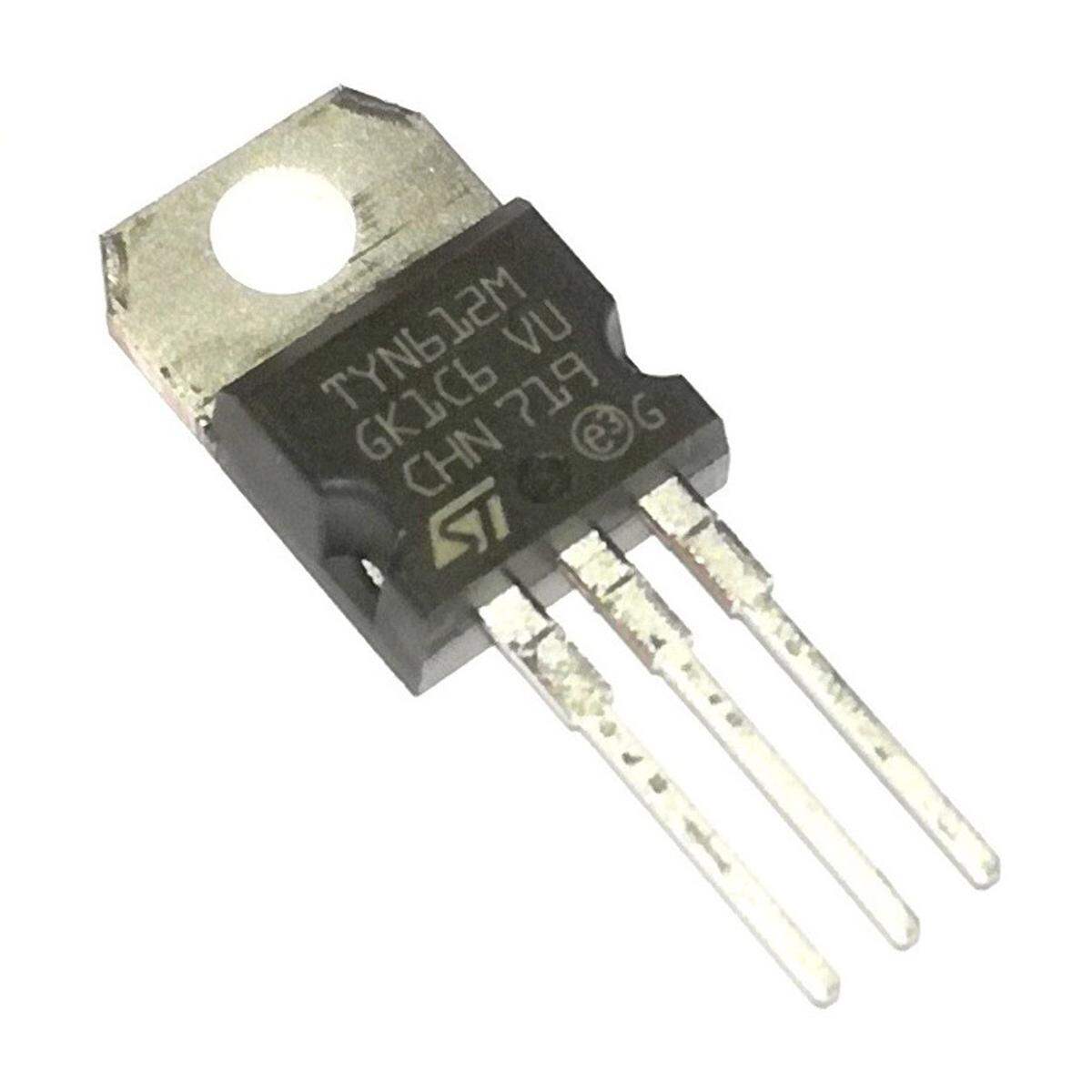

Description: TYN612 8A 600V SCR

TYN612 TYN-612 TYN 612 600V 8A 3 Pin Thyristor SCR TO-220 Electronic Components Silicon Controlled Rectifiers Thyristor

Features of TYN612- Thyristor

• On-state RMS current is 8 A
• Repetitive peak off-state voltage is 600 V
• Triggering gate current ranges from 5 mA to 15 mA
• Used as protection circuits, current limiting circuit and control circuits
• Provide optimized performance in a limited space
• Available in surface-mount and through-hole package

Technical Specification

• Dynamic resistance: 30mΩ
• I2t value for fusing: 98 A2S
• Maximum peak reverse gate voltage: 5v
• Peak gate current: 4A
• Operating temperature range: – 40 to + 125 °C
• Storage temperature: – 40 to + 150 °C

TYN612 Equivalent Thyristors

TN1215, TYN612, TYN812, TYN1012

Where to use TYN612- Thyristor?

Thyristoris a switching device but can be used in power control circuit, over-voltage protection, and many other application. It requires a gate pulse to start, it gets self-latched and stays ON until the supply get interrupted. For this, we have to use a switching circuit in connection with the main supply of the circuit or across the thyristor to turn it OFF. Here, in the nameTYN612, ‘6’ represents the value of Repetitive peak off-state voltage which is 600 V and ‘12’ represents the value of On-state RMS current which is 12 A. Thyristor TYN612 is fit for all modes of control like overvoltage crowbar protection, motor control circuit, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuits.
