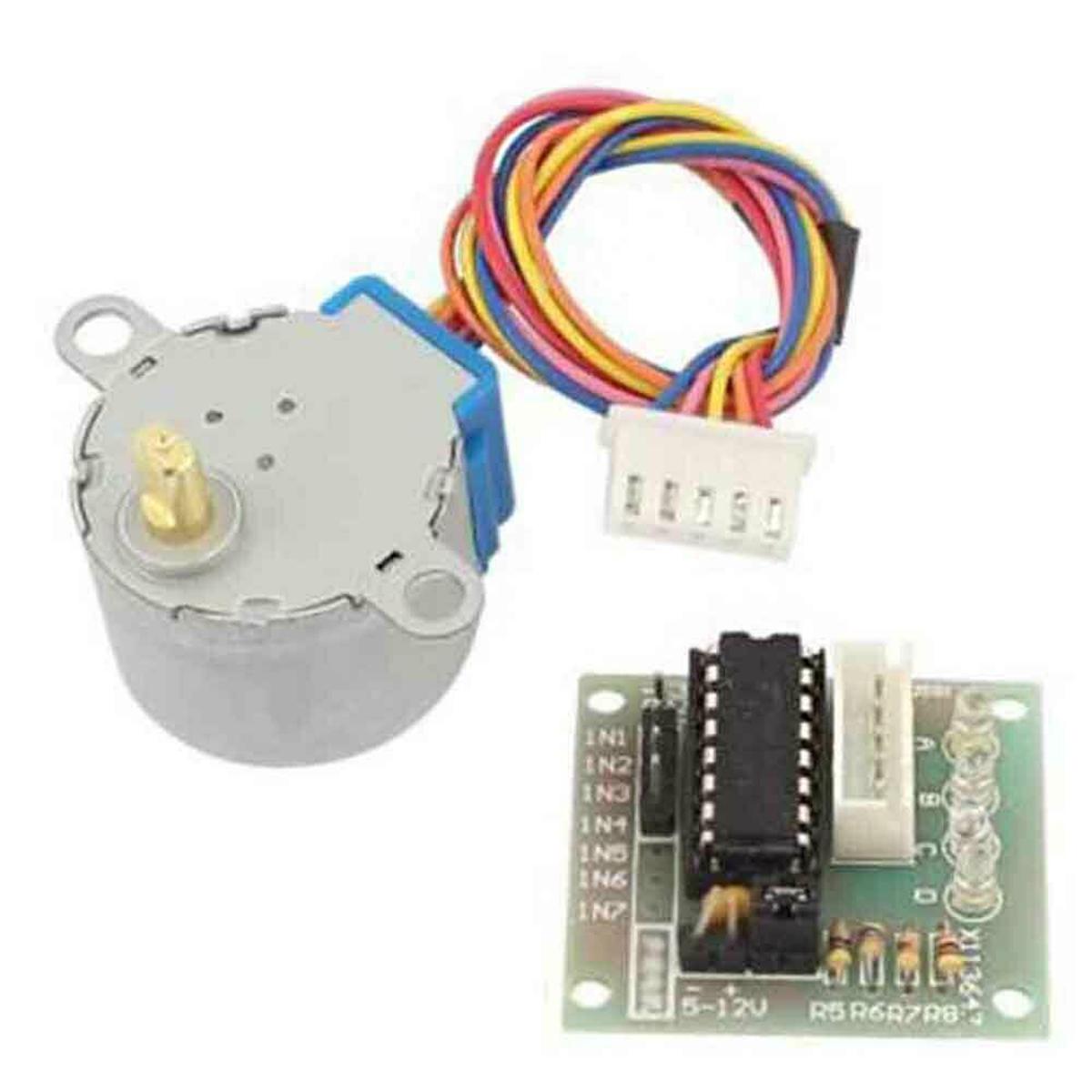

Description: DC 12V Stepper Motor +ULN2003 Driver Test Module Board 28BYJ-48 For Arduino KIT

DC 12V 4-Phase Stepper Motor + Driver Test Module Board For ArduinoThe Driver Board Has A, B, C, D Four-Phase LEDs To Indicate The Working State Of The Stepper MotorStepper Motor With Standard Interface, Can Be Directly Plugged And UsedDurable And Reliable100% Brand New And High Quality

Specifications:

Color: As Shown In The PictureRated Voltage: DC12V 4 PhaseStep Angle: 5.625 X 1/64No-Load Pull-In Frequency: > 600HzNo-Load Pull-Out Frequency: > 1000HzPulling Torque: > 34.3mN.M (120Hz)Brake Torque: > 34.3mN.MDC Resistance: 200Ω±7% (25C)Insulation Resistance: >10MΩ (500V)Dielectric Strength: 600V AC / 1mA / 1sInsulation Class: ATemperature Rise: <40K (120Hz)Noise: <40dB (120Hz, No Load, 10cm)

Features:

Material: PlasticColor: Silver Plus BlueSize: Dimensions Φ24*19(Mm)

Note:1.Due To The Manual Measurement And Different Measurement Methods, Please Allow 2-3mm Deviation.2.Please Be Reminded That Due To Lighting Effects And Monitor’S Brightness/Contrast Settings Etc, The Color Tone Of The Website’S Photo And The Actual Item Could Be Slightly Different

Package Included:

1 x DC 12V Stepper Motor +ULN2003 Driver Test Module Board 28BYJ-48 For Arduino KIT

• Color: As Shown In The Picture
• Rated Voltage: DC12V 4 Phase
• Step Angle: 5.625 X 1/64
• No-Load Pull-In Frequency: > 600Hz
• No-Load Pull-Out Frequency: > 1000Hz
• Pulling Torque: > 34.3mN.M (120Hz)
• Brake Torque: > 34.3mN.M
• DC Resistance: 200Ω±7% (25C)
• Insulation Resistance: >10MΩ (500V)
• Dielectric Strength: 600V AC / 1mA / 1s
• Insulation Class: A
• Temperature Rise: <40K (120Hz)
• Noise: <40dB (120Hz, No Load, 10cm)
