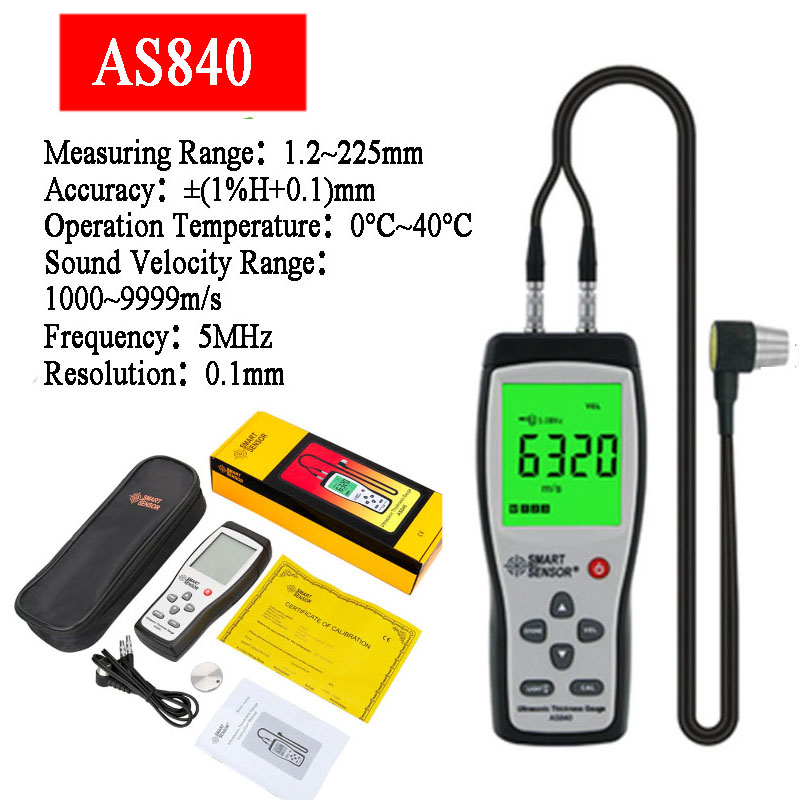

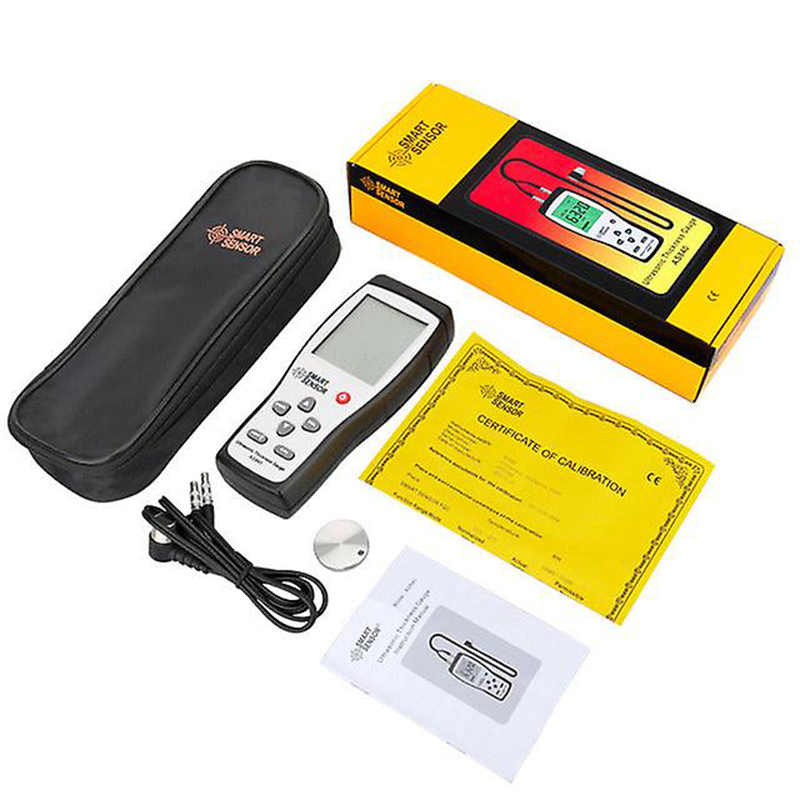

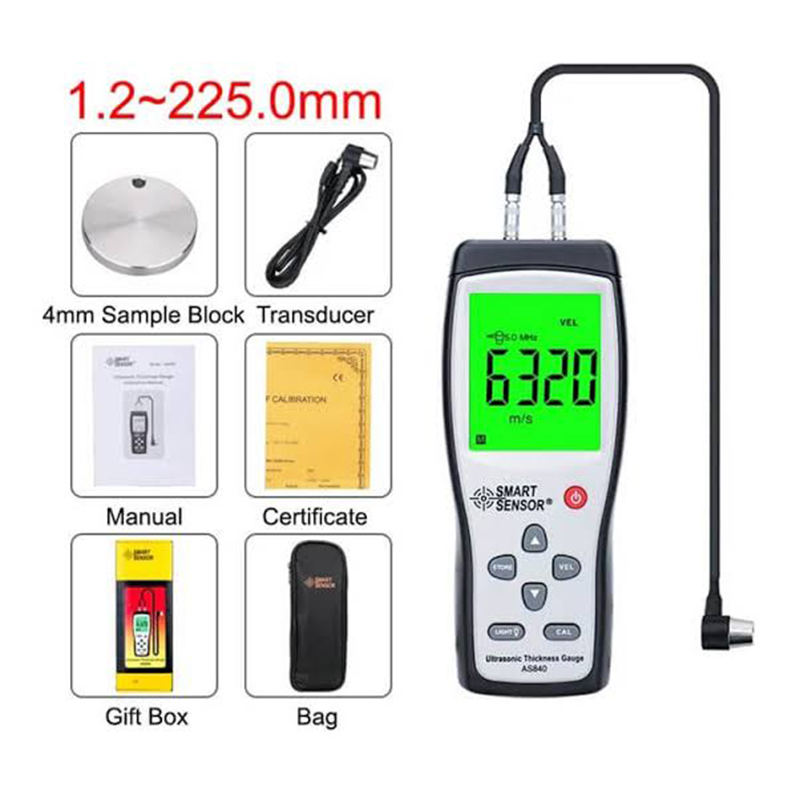

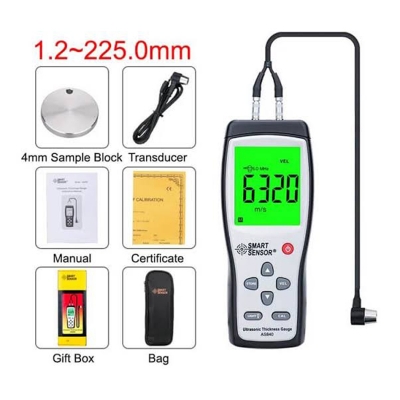

Ultrasonic Thickness Gauge AS840 Smart Sensor-Multicolor

The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties, such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece offers this technology a multitude of possible applications.

SPECIFICATIONS

Measuring Range

1.2~225

Accuracy

±(1%H 0.1)mm

Resolution

0.1mm

Sound Velocity Range

1000~9999m/s

Frequency

5MHz

Operation Temperature

0°C~40°C

Minimum limit for the tube

measuring

Ф20*3mm(steel)

Auto Zero Calibration

√

Auto linear compensation

√

Coupling Indicator

√

Metric / Imperial Switchable

—

Battery Indication

√

Auto Power Off:

√
