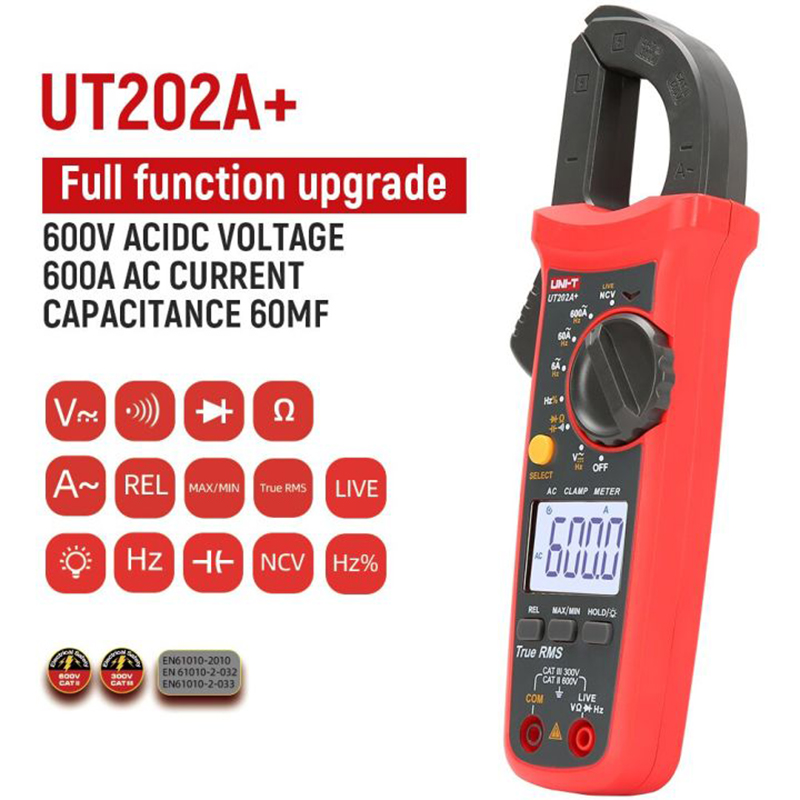

UNI-T UT202A+ Digital Clamp Meter 600A Auto Range Multi Testers-Multicolor

UNI-T UT202A+ Digital Clamp Meter 600A Auto Range Multi Testers for Voltage Current Resistance Capacitance Testing Meter. UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety, and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC, etc.

Features of UNI-T UT202A+ Digital Clamp Meter

True RMS

LCD backlight

Large screen and display digits

60mF large capacitance measurement (UT202A+/UT204+)

Neutral/live wire test (UT202A+/UT204+)

Auto Ranger Multi Tester

For Industrial electricity, Residential electricity, Air conditioning, Automobile, etc.

Specifications Range UT202A+

AC (A) 600A ±(2%+10)

AC frequency (Hz) 50Hz~100Hz ±(1%+5)

AC voltage (V) 600V ±(0.8%+5)

AC voltage frequency(Hz) 10Hz~10kHz ±(1%+5)

DC voltage (A) 600V ±(0.5%+2)

Resistance (Ω) 60MΩ ±(0.8%+2)

Capacitance (F) 60mF ±(4%+5)

Frequency (Hz) 10Hz~10MHz ±(0.1%+4)

Features

Display count 6000

Auto range √

Jaw opening 28mm

True RMS √

NCV √

Live wire test √

Continuity test √

Diode √

MAX/MIN √

Relative mode √

Data hold √

Low battery indication √

Auto power off √

General Characteristics

Power 1.5V battery (R03) x 2

Display 37mm x 25mm

Product Color Red and grey

Product net weight 248g

Product size 215mm x 63mm x 36mm

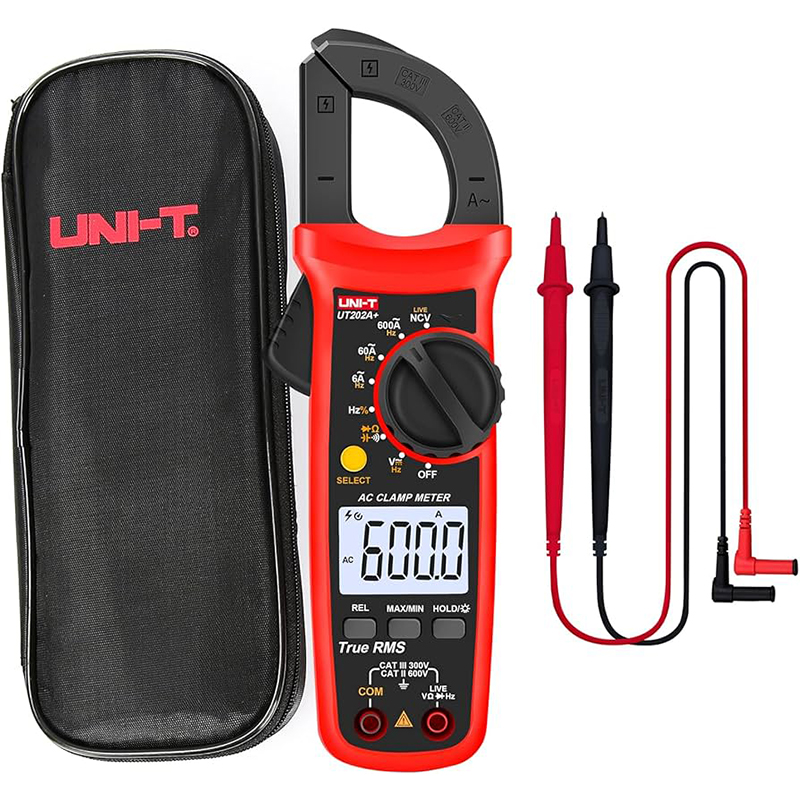

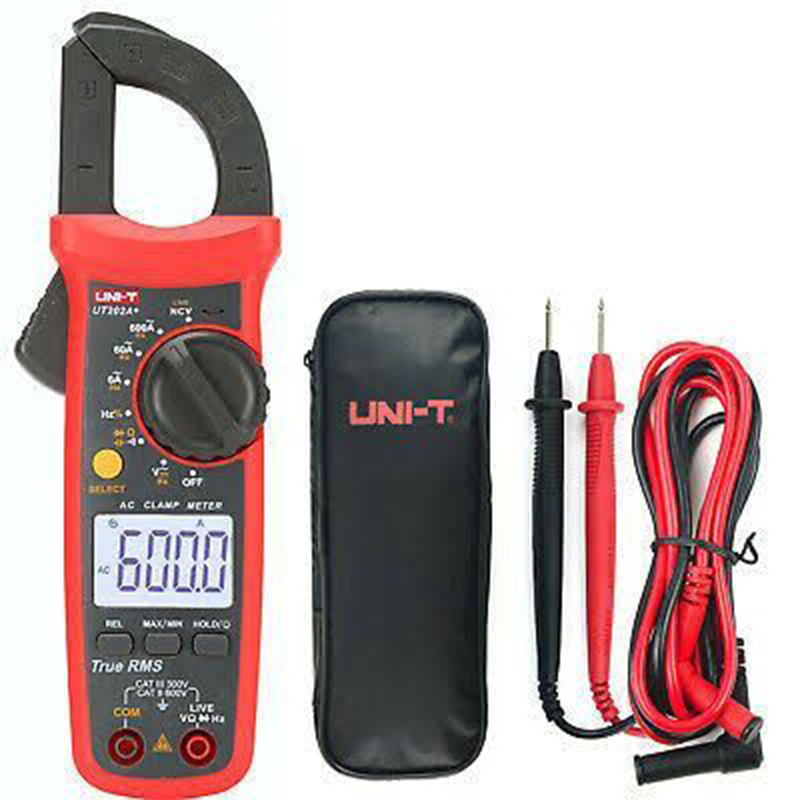

Standard individual packing Gift box, Carrying bag, English manual
