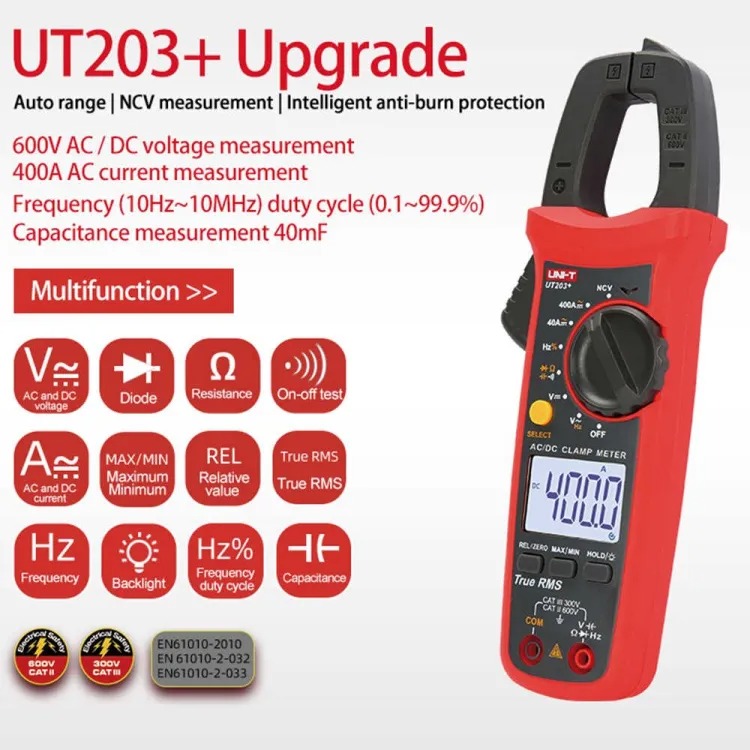

Picture of UNI-T UT203+ True RMS Clamp Meter AC DC Current Tester 400A Clamp Multimeter Auto Range false detection protection Meter UT203+
Picture of UNI-T UT203+ True RMS Clamp Meter AC DC Current Tester 400A Clamp Multimeter Auto Range false detection protection Meter UT203+
Picture of UNI-T UT203+ True RMS Clamp Meter AC DC Current Tester 400A Clamp Multimeter Auto Range false detection protection Meter UT203+
Picture of UNI-T UT203+ True RMS Clamp Meter AC DC Current Tester 400A Clamp Multimeter Auto Range false detection protection Meter UT203+

UNI-T UT203+ True RMS Clamp Meter AC DC Current Tester 400A Clamp Multimeter Auto Range false detection protection Meter UT203+

Category:
SKU: RDE02292
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 4,875
Tk 6,500
Tk 6,500
25% OFF
0 review(s)
  • Manufacturer : UNI-T
  • Model: UT203+
  • Type of meter: AC/DC digital clamp meter
  • Max. diameter of measured cable: 28mm
  • Kind of display used: LCD (4000)
  • DC current measuring range: 40A/400A
  • AC current measuring range : 40A/400A
  • DC current measuring accuracy: ±(2,5% + 5 digits)
  • AC current measuring accuracy: ±(2,5% + 5 digits)
  • DC voltage measuring range: 400mV/4V/40V/400V/600V
  • DC voltage measuring accuracy: ±(0,5% + 2 digits)
  • AC voltage measuring range: 4V/40V/400V/600V
  • AC voltage measuring accuracy: ±(0,8% + 5 digits)
  • True effective value measurement: True RMS
  • Resistance measuring range: 400Ω/4kΩ/40kΩ/400kΩ/40MΩ
  • Resistance measuring accuracy: ±(0,8% + 2 digits)
  • Frequency measuring range: 10...10MHz
  • Duty cycle factor: 0.1...99.9%
  • Continuity test: acoustic signal for R<10Ω
  • Diode test: yes
  • Pollution degree: 2
  • Dimensions: 215x63x36mm
  • Weight with battery: 235g
  • Power supply: 2 batteries 1,5V LR03 (AAA)
  • Measurement: AC current, AC voltage, continuity, DC current, DC voltage, duty cycle, frequency, resistance

Call For Order : 09613-800800

UT200+ series handheld automatic range true RMS clamp meter, designed according to safety standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection,can meet high reliability and high safety operation requirements; It contains the basic functions of electrical measurement, with high precision measurement, and expands the current frequency (UT201+ / UT202+ only), high voltage frequency function, UT202+ has temperature measurement function, UT203+ has DC current measurement function, and the new design makes it An excellent measurement tool for electronic and electricians with superior performance.

Measuring instrument features

  • automatic power-off
  • autoranging
  • HOLD function
  • low battery indicator
  • overflow indication
  • polarization indicator
  • REL function
Standard equipment
  • battery
  • soft cover
  • test leads
Additional information
  • Gross weight: 391.9 g
  • Manufacturer part number: UT203+






  • Manufacturer : UNI-T
  • Model: UT203+
  • Type of meter: AC/DC digital clamp meter
  • Max. diameter of measured cable: 28mm
  • Kind of display used: LCD (4000)
  • DC current measuring range: 40A/400A
  • AC current measuring range : 40A/400A
  • DC current measuring accuracy: ±(2,5% + 5 digits)
  • AC current measuring accuracy: ±(2,5% + 5 digits)
  • DC voltage measuring range: 400mV/4V/40V/400V/600V
  • DC voltage measuring accuracy: ±(0,5% + 2 digits)
  • AC voltage measuring range: 4V/40V/400V/600V
  • AC voltage measuring accuracy: ±(0,8% + 5 digits)
  • True effective value measurement: True RMS
  • Resistance measuring range: 400Ω/4kΩ/40kΩ/400kΩ/40MΩ
  • Resistance measuring accuracy: ±(0,8% + 2 digits)
  • Frequency measuring range: 10...10MHz
  • Duty cycle factor: 0.1...99.9%
  • Continuity test: acoustic signal for R<10Ω
  • Diode test: yes
  • Pollution degree: 2
  • Dimensions: 215x63x36mm
  • Weight with battery: 235g
  • Power supply: 2 batteries 1,5V LR03 (AAA)
  • Measurement: AC current, AC voltage, continuity, DC current, DC voltage, duty cycle, frequency, resistance
