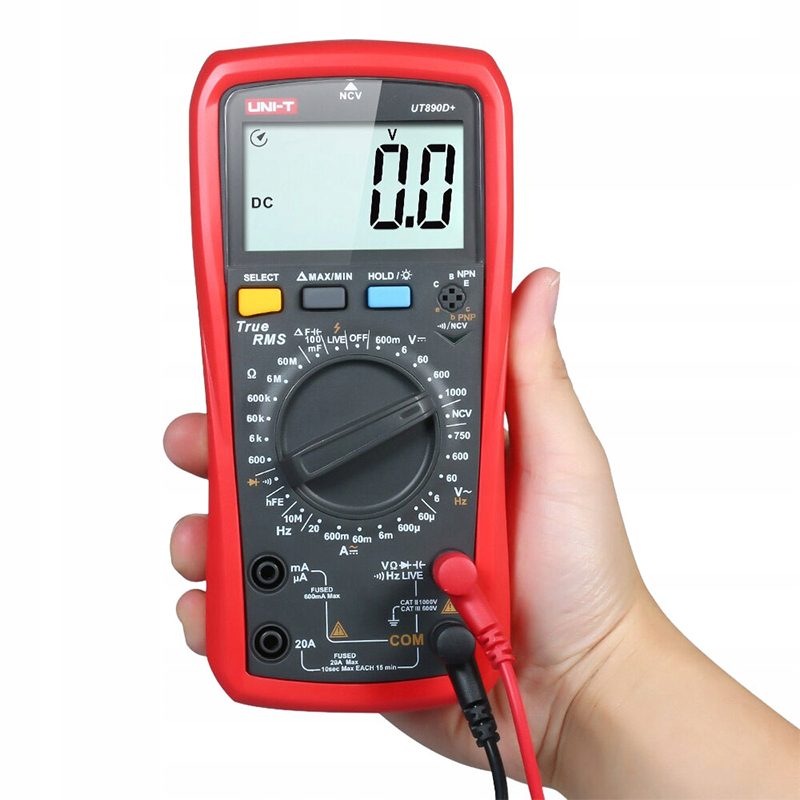

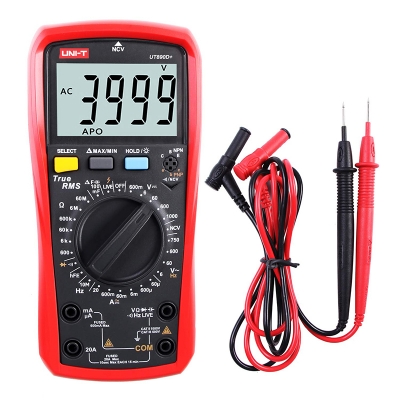

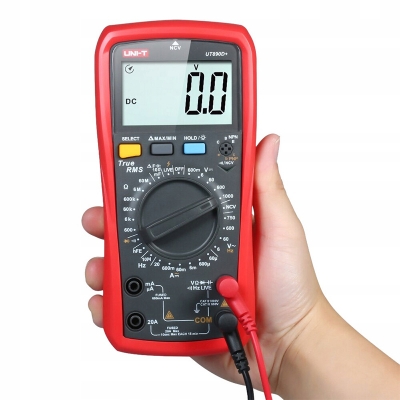

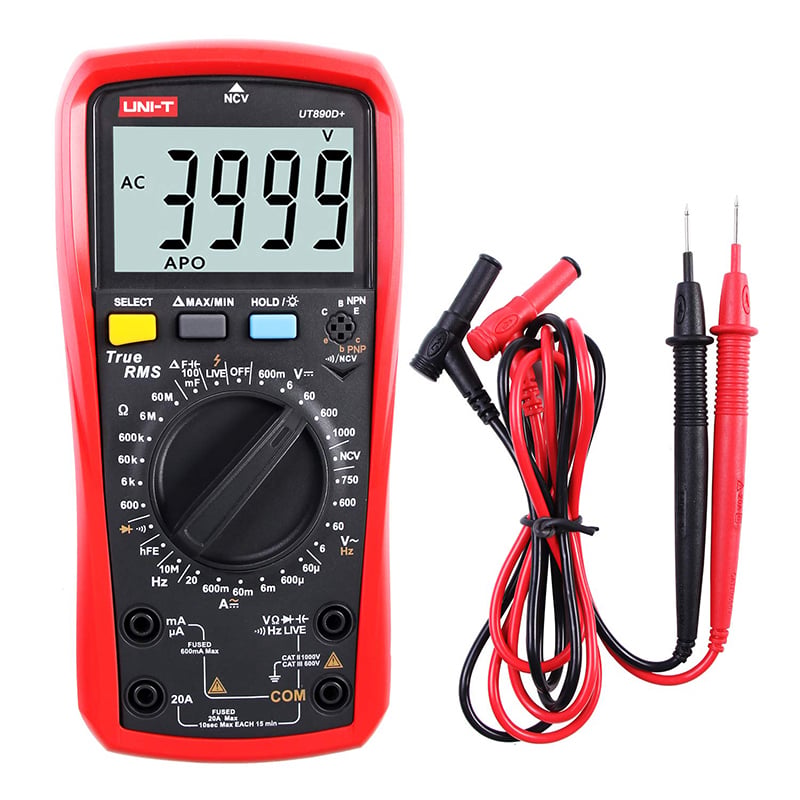

UNI-T UT890D+ Digital Multimeter-Multicolor

The UT890D+ Digital Multimeter 6000-count true RMS digital multimeter is designed with a large LCD. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.

Features of the Digital Multimeter

Manual range/True RMS

Data hold/REL

Audible/visual alarm (NCV/continuity)

Current (AC/DC) mode memory

Low battery indication: ≤2.5V

NCV/hFE/Max/Min

Diode test/Continuity test

High voltage false detection: 1000Vrms

Over-current alarm: ≥20A

Auto power off/LCD backlight

Specification Range UT890D+

DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)

AC Voltage 6V/60V/600V/750V ±(0.8%+3)

ACV Frequency 10Hz～10kHz ±（0.1%+5)

DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)

AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)

Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)

Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10)

Frequency 9.999Hz～9.999MHz
