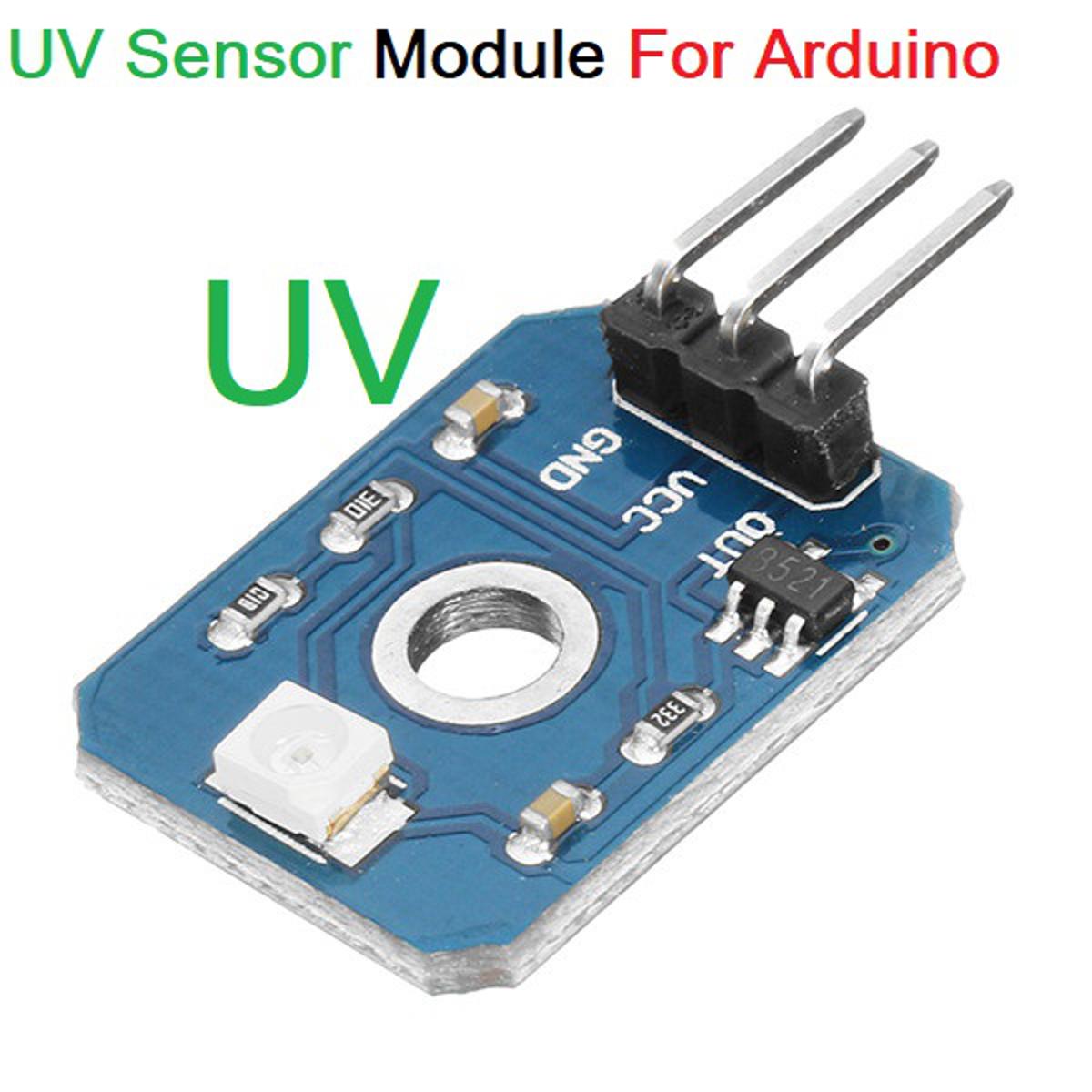

Picture of UV Sensor Module UV Detection Module DC 3.3V 5V 3 Pin Leads For Cables UV Detection Sensors Module For Arduino
Picture of UV Sensor Module UV Detection Module DC 3.3V 5V 3 Pin Leads For Cables UV Detection Sensors Module For Arduino

UV Sensor Module UV Detection Module DC 3.3V 5V 3 Pin Leads For Cables UV Detection Sensors Module For Arduino

Category: Building Materials
SKU: UDBD04489
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 387
Tk 455
Tk 455
15% OFF
0 review(s)
  • 1. Operating voltage: DC 3.3-5V
  • 2. Output voltage: DC 0-1V
  • 3. Test accuracy: ±1UV INDEX
  • 4. Current: 0.06mA (typ), 0.1mA (max)
  • 5. Response wavelength: 200nm-370nm
  • 6. Response time: less than 0.5 seconds
  • 8. Test UV wavelength: 200-370nm
  • 9. Size: 19.80 x 15mm

Call For Order : 09613-800800

Description:

Features

  • 1.Operating voltage: DC 3.3-5V
  • 2.Output voltage: DC 0-1V
  • 3.Test accuracy: ±1UV INDEX
  • 4.Current: 0.06mA (typ), 0.1mA (max)
  • 5.Response wavelength: 200nm-370nm
  • 6. Response time: less than 0.5 seconds
  • 7.Work temperature: -20℃ ~85℃
  • 8. Test UV wavelength: 200-370nm
  • 9. Size: 19.80 x 15mm
Connection mode:
  • VCC- is the positive input port of power supply, access 3.3V-5V voltage
  • GND-GND is the negative input port of power supply
  • OUT-OUT is the output port of analog signal, connected to I / O port of MCU
Note:The player should set the I/O port of MCU as input mode / receive mode, otherwise it can not be used. Other MCU, or more advanced control panel such as Arm, which need to set the I/O port as the input and output mode, must be set to input mode / receive mode, otherwise it can not be used. 51 series can be used directly, no need to set the input and output mode.

Overview:

  • Designed for applications where high reliability and accuracy of the UV index (UVI) are required;
  • Suitable for measuring the total amount of solar ultraviolet light intensity;
  • Contrast the World Health Organization UV Index grading standards
  • The test wavelength of UV was 200-370nm;
  • Fast response, full interchangeability;
Package included:
  • 1 x UV test sensor module






  • 1. Operating voltage: DC 3.3-5V
  • 2. Output voltage: DC 0-1V
  • 3. Test accuracy: ±1UV INDEX
  • 4. Current: 0.06mA (typ), 0.1mA (max)
  • 5. Response wavelength: 200nm-370nm
  • 6. Response time: less than 0.5 seconds
  • 8. Test UV wavelength: 200-370nm
  • 9. Size: 19.80 x 15mm
