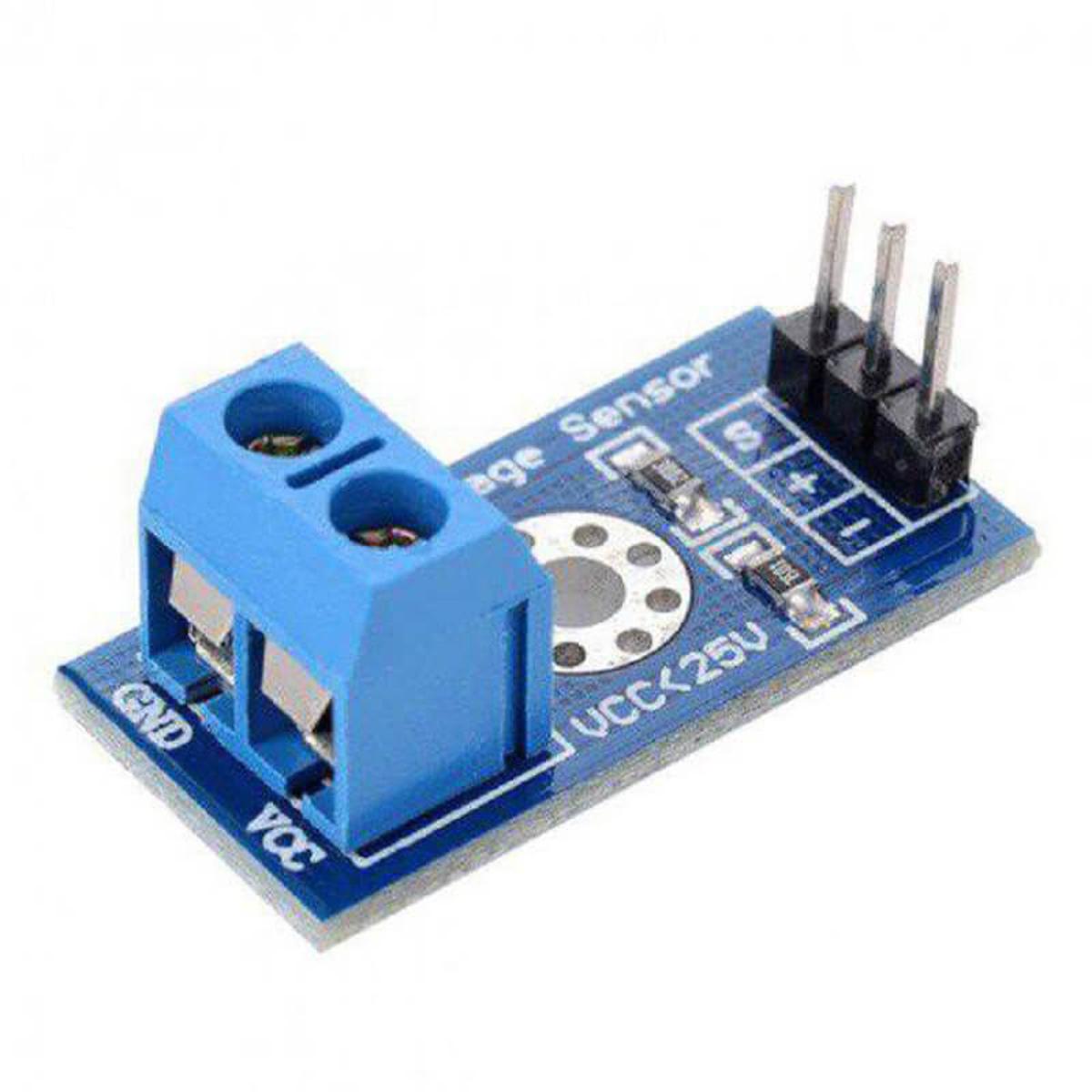

Description: Voltage Detection Sensor Module-25V

Voltage Detection Sensor Module 25V module is based on the principle of resistive voltage divider design, it can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v. The voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).

It has the limit of Arduino analog input 5 VDC only. So if you wish to measure higher voltages, you will need to resort to another means. One way is to use a voltage divider. It is fundamentally a 5:1 voltage divider using a 30k and 1 7.5k ohm resistor.

Note:Keep in mind, you are restricted to voltages that are less than 25 volts. More than that and you will exceed the voltage limit of your Arduino input.

Specifications:

• Dimensions: 28 x 14 x 13 mm(LxWxH).
• Weight: 4 gm.
• Input Voltage range: DC0 to 25 V
• Voltage detection range: DC 0.02445 V to 25 V
• Analog Voltage resolution : 0.00489 V
• Output Interface : “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins
• DC input interface: red terminal positive with VCC, negative with GND
• You can also use the IICLCD1602 LCD to display voltage.
• By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery.

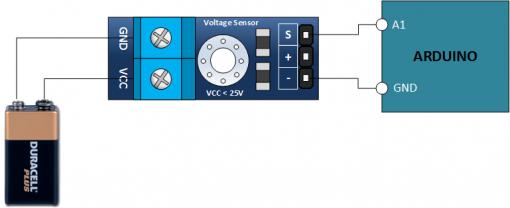

INPUT:

• GND –This is where you connect the low side of the voltage you are measuring.* Caution:This is the same electrical point as your Arduino ground.
• VCC–The is where you connect the high side of the voltage you are measuring (0 – 25V)

OUTPUT:

• S:This connects to your Arduino analog input.
• – (or minus):This connects to your Arduino ground.
• +:This is not connected. It does absolutely nothing.

Documents:

• Voltage Detection Sensor Module 25V

Package Include:

• 1 x Voltage Detection Sensor Module-25V

• Dimensions: 28 x 14 x 13 mm(LxWxH).
• Weight: 4 gm.
• Input Voltage range: DC0 to 25 V
• Voltage detection range: DC 0.02445 V to 25 V
• Analog Voltage resolution : 0.00489 V
•
