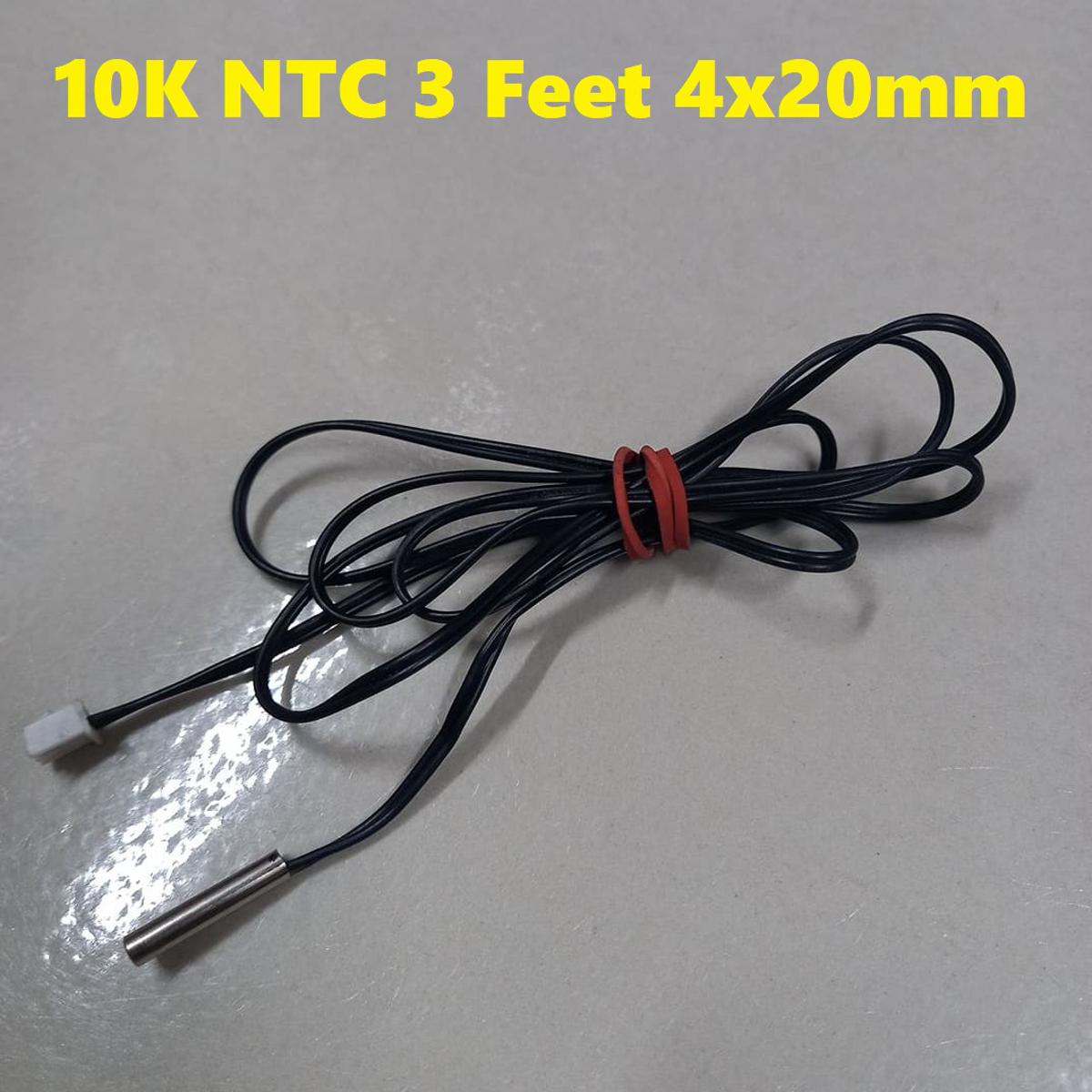

Description: Waterproof 2 Wire Sensitive Stainless Steel NTC Temperature Sensor Probe 10KΩ 103 NTC With Cables Wire & JST Connector

Waterproof 2 Wire Sensitive Stainless Steel NTC Temperature Sensor Probe 10KΩ 103 NTC With Cables Wire & JST Connector

Features:

• Wide Measuring Range:
• High-quality Stainless Steel Probe:
• Advanced Technology:
• Wide Application:

Specifications:

• Stainless steel jacket and waterproof
• Measuring range: -20 to 105 ° C
• Size of the probe: 4x20mm
• Output: 2 wires
• Type: NTC 10k ± 1% 3950
• Measure environmental temperatures with ADC and this 10k NTC LINK
• resistance to temperature conversion table LINK
• B constant: 3380K – / + 1%
• Typical constant 5mW / ° C
• Probe insulation:> 100MOhm Peak
• Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
• Stress sustain: 9.8 N (1kgF) for 1 minute no deformation

Applications:

• These can be used in temperature measurement and control of household air conditioners, car air conditioners, refrigerators, freezers, water heaters, water dispensers, dishwashers, washing machines and dryers.

• Stainless steel jacket and waterproof
• Measuring range: -20 to 105 ° C
• Length of the wire: 3 Feet
• Size of the probe: 4x20mm
• Output: 2 wires
• Type: NTC 10k ± 1% 3950
• Measure environmental temperatures with ADC and this 10k NTC LINK
• resistance to temperature conversion table LINK
• B constant: 3380K – / + 1%
• Typical constant 5mW / ° C
• Probe insulation:> 100MOhm Peak
• Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
• Stress sustain: 9.8 N (1kgF) for 1 minute no deformation
