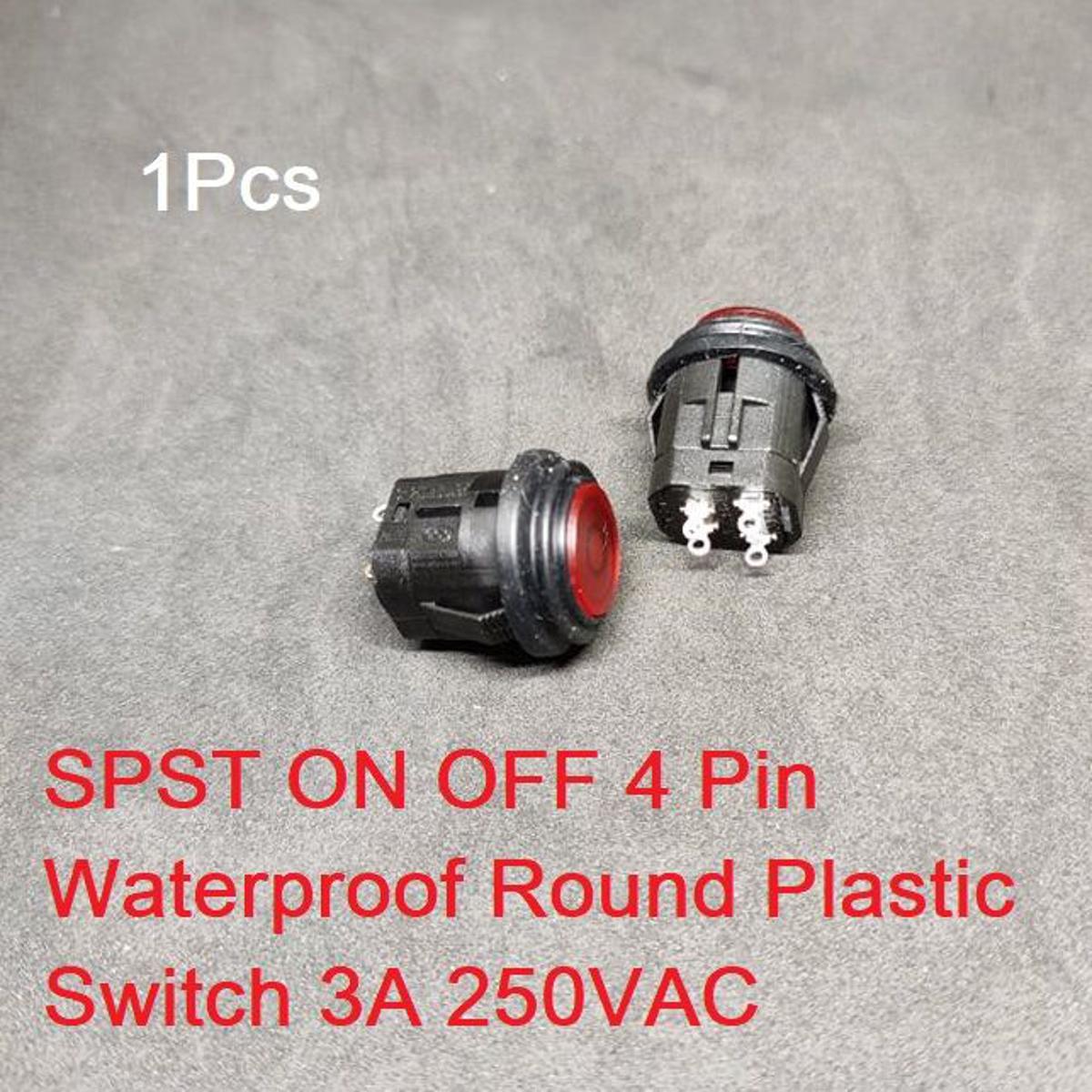

Description: Waterproof Round Plastic Switch 250V 3A 4Pin Self-Lock SPST On Off Mini Rocker

WATERPROOF SELF LOCK Round Plastic Switch 250V 3A 4Pin Self-Lock SPST On Off Mini Rocker Push Button Switches With Illuminated RED Indicator Lens

Perfect Design: Designed to connect and disconnect a DC12V 20A electrical circuit at will, fluorescent lamps will be lighted up when the switch is turned on.

Safety Protection: This truck rocker switch control uses copper-plated silver contacts, has good electrical conductivity, and uses high-quality materials and flame-retardant casing for high safety.Easy Installation: Round on-off switch is easy to install, which is just direct setup, and no additional work required, our switch comes with a keyhole slot to prevent unwanted rotation.

Widely Used: This is a Round LED rocker switch, it can work in any cars and others with a 12 Volt DC source.High voltage SPST support: This replacement rocker switch supports a high voltage of 125-250V AC, has a good current of 1.5-3A, and can be used to switch wall voltage. With 50mΩ contact resistance and 100mΩ isolation.

Specification:

• Color: Blue, Red(optional)
• Material: Plastic
• Switch type: 4P SPST ON-OFF (LED)
• Input: AC 250V/3A DC 12V/20A
• Weight: 5g
• Thread Dia.15mm
• Total Size: 25 x 18mm
• Material: Plastic, Metal
• Waterproof
• Panel thickness: 2.5mm max.
• Electrical life: 10,000 cycles
• Mechanical life: 100,000 cycles
• Contact resistance: 50MΩ max.
• Insulation resistance: 500V DC 100MΩ/minute
• Dielectric strength: 1500V AC 1 minute

Features:

• Frame: Nylon 66 (UL-94V2) Black
• Actuator: PC (UL-94V2)
• Waterproof Boot: Silicone
• Terminals: Silver plated copper alloy
• Waterproof Rating: IP65
• LED Color: Black Red

• Frame: Nylon 66 (UL-94V2) Black
• Actuator: PC (UL-94V2)
• Waterproof Boot: Silicone
• Terminals: Silver plated copper alloy
• Waterproof Rating: IP65
• LED Color: Black Red
