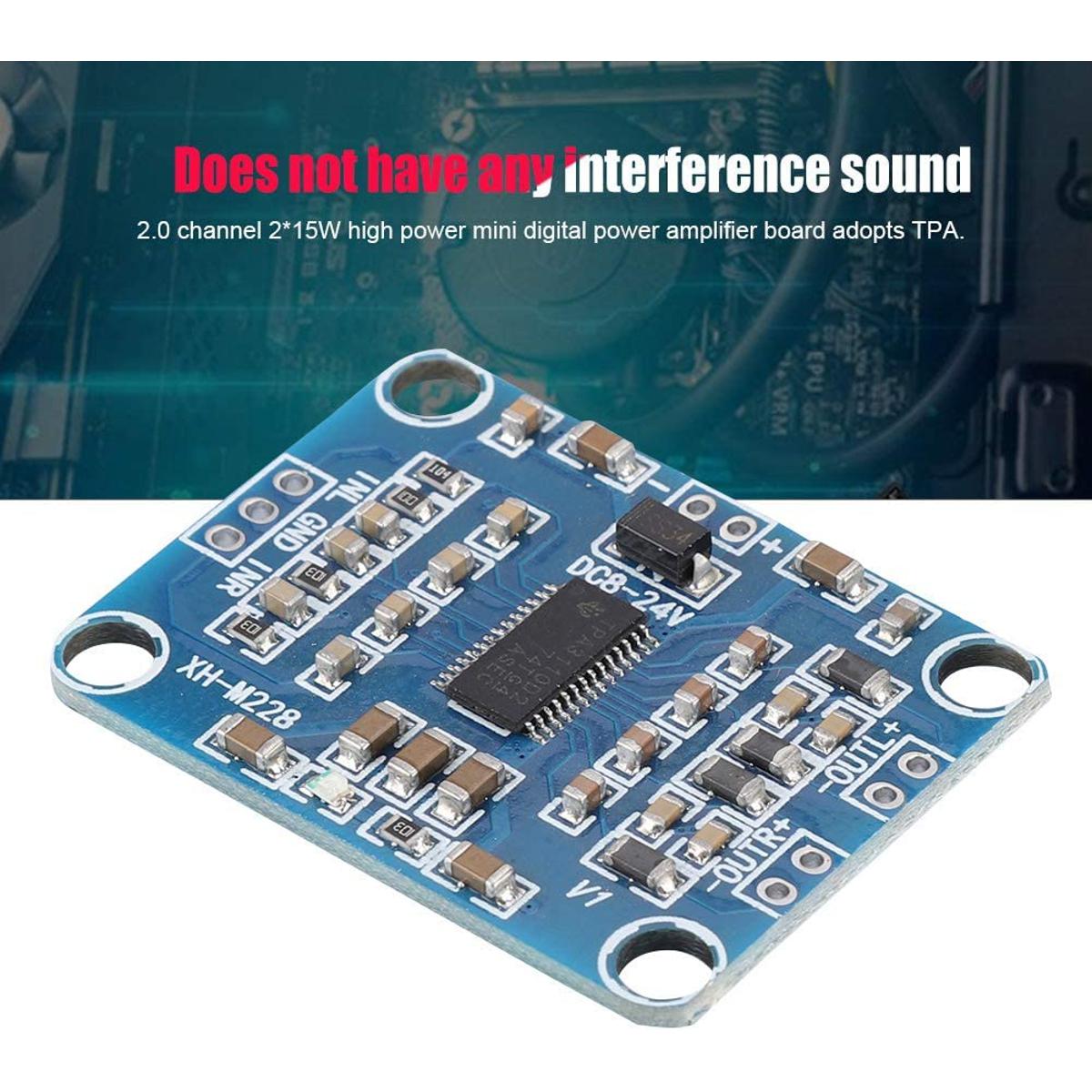

Description: TPA3110 Stereo Amplifier Board 2x15W Digital Audio

• The 2.0 channel 2*15W high power mini digital power amplifier board adopts TPA3110 power amplifier chip.
• The chip does not need heat sink, but also has the function of overcurrent and overheating.
• This power amplifier board is designed by the improvement of the official standard circuit.
• It increases the power supply protection against reverse protection and 2 new design low pass filtering, and the bass thrust is stronger.
• This product has no interference and no need for shielding treatment.

• Amplifier chip: TPA3110
• Output power: 15W * 2
• Operating voltage: DC 8V-24V
• Working current: static 8MA maximum 3A
• Efficiency: = 90%
• Signal to noise ratio: 100DB
• Frequency response range: 20HZ-20KHZ
• Dimensions: 33mm * 25mm * 3.5mm
• Speaker: 4-8 O
• Application: audio power amplifier
