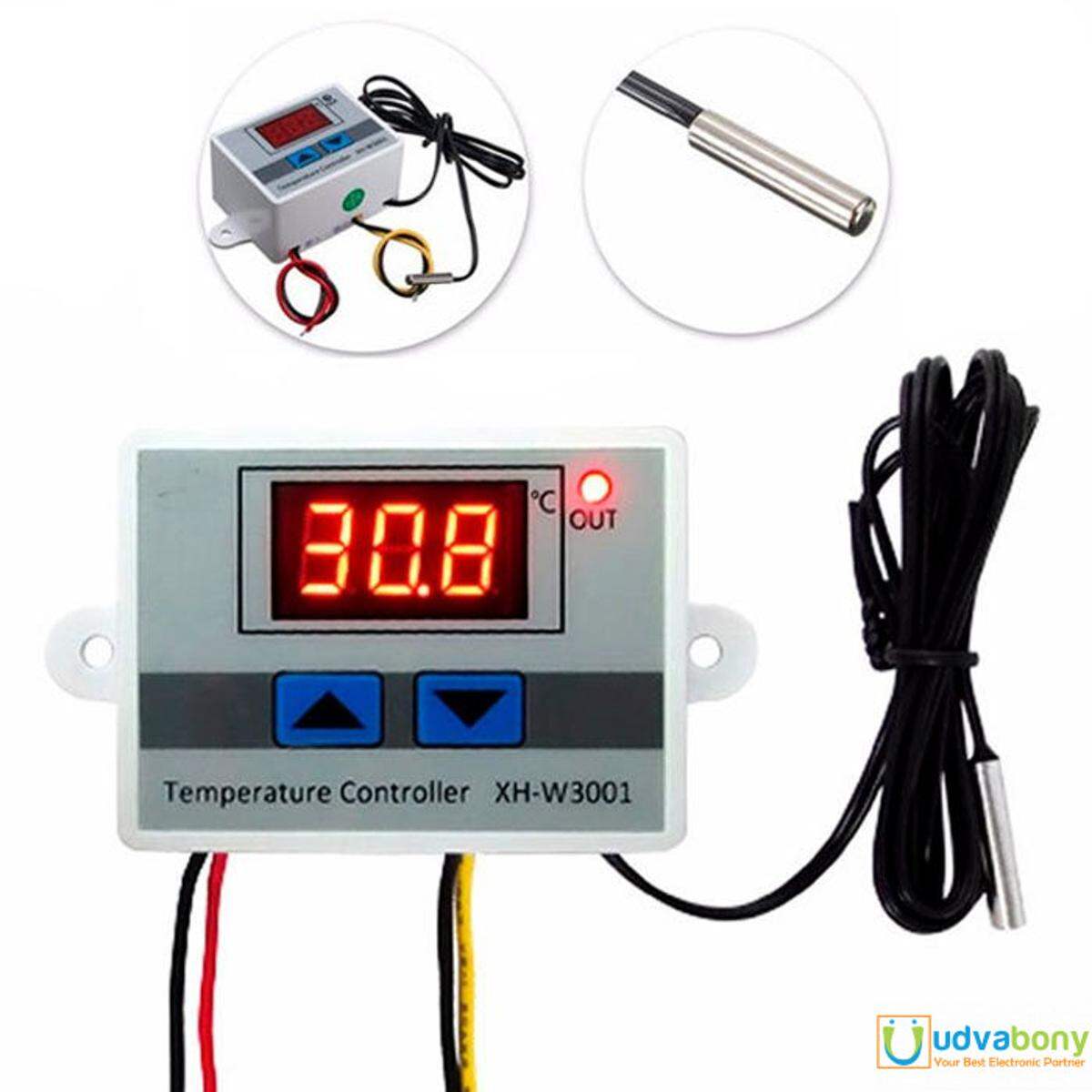

XH-W3001 AC220v Digital Temperature Controller Microcomputer Thermostat Switch

Descriptions: XH-W3001 AC-220v Digital Temperature Controller Microcomputer Thermostat Switch

• ABS flame retardant housing is avirulent and environmental protective, long service life and will not discolor or be out of shape
• Wide temperature control range from -50℃ to 110℃ and high temperature control precision of 0.1℃
• Can be installed directly or embedded in industrial control equipment panel, convenient and quick
• Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields
• Probe used stainless steel material shell and resin sealing treatment, waterproof and does not rust

Feature

• Model: XH-W3001
• Name: Temperature Controller
• 1. Temperature measurement, display, refrigeration, heating control.
• 2. Temperature setting upper and lower limits.
• 3. Simple operation, suitable for seafood machines.
• 4. Easy to install.

Specification

• 1. Measurement range: – 50°C – 110°C
• 2. Control range: – 50°C – 110°C
• 3. Measuring accuracy: plus or minus 0.2 °C
• 4. Control precision: plus or minus 0.1 °C
• 5. Measuring input: NTC10K L= 1 m waterproof probe
• 6. Power: 1500W
• 7. Input voltagr: 220V
• 8. Current: Max 10A
• 9. Size: 60 x 45 x 30mm
• size: 17*2.4*2.4mm

How to use:

• Press “UP” button show the starting temperature;
• Long press “UP” button until the temperature display flashes, press the “UP” or “Down” button to set the start temperature value;
• Press “Down” button show the stop temperature;
• Long press “Down” button until the temperature display flashes, press the “UP” or “Down” button to set the stop temperature value.

Package includes:

• 1 x 220V LED temperature controller
• 1 x Thermostat control switch probe
