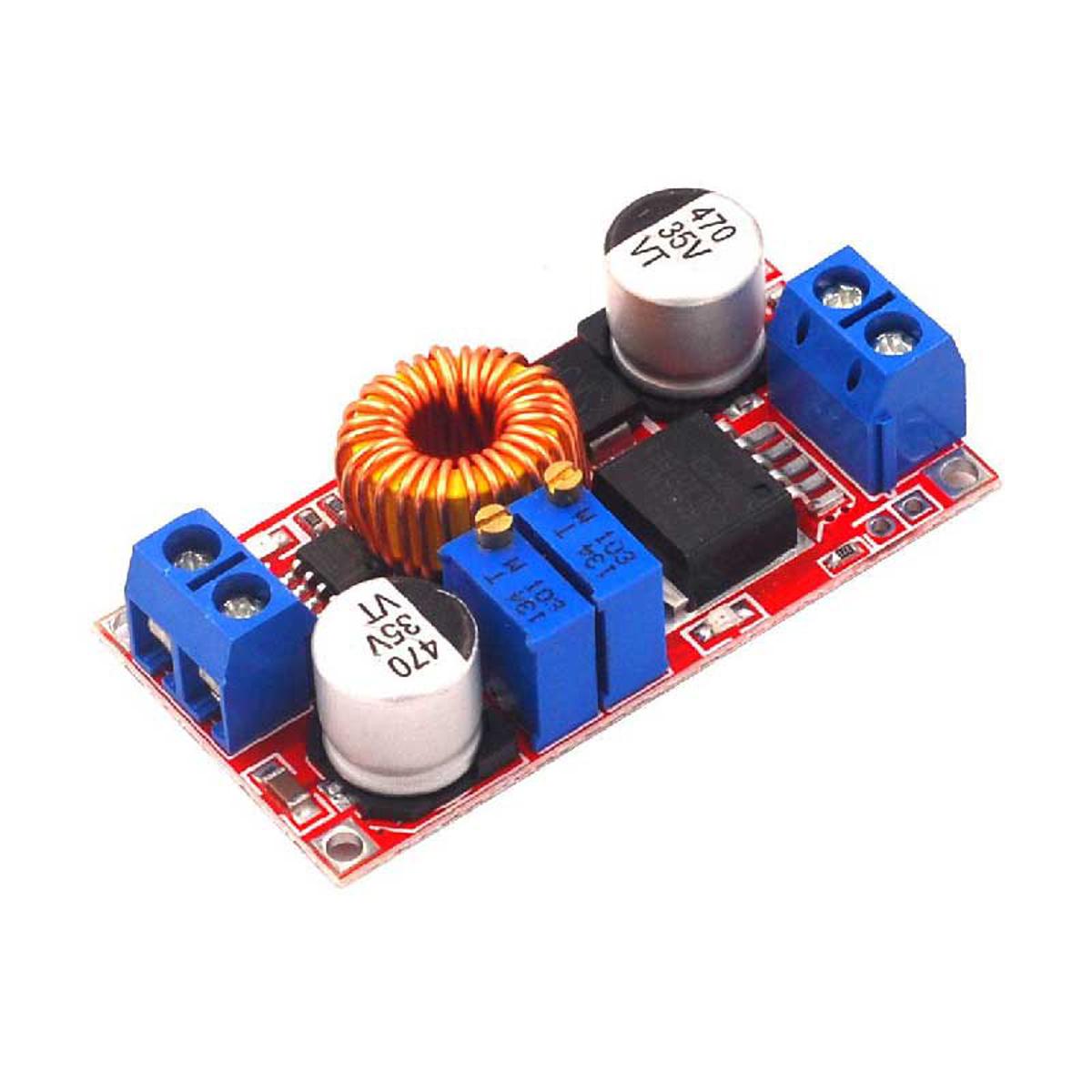

Picture of Xl4015 5A Dc To Dc Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V) - Power Bank Circuit
Picture of Xl4015 5A Dc To Dc Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V) - Power Bank Circuit

Xl4015 5A Dc To Dc Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V) - Power Bank Circuit

Category:
SKU: RDE02283
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 350
0 review(s)
  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
  • Operating Temperature: -40 ° to +85 °
  • Voltage Regulation: ± 2.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A
  • Output voltage: 0.8V-30V
  • Input voltage: 5V-32V
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • CC CV Low ripple
  • When the module charges a battery, it first use constant current to protect the battery. check the curse above.
  • #power bank circuit

Call For Order : 09613-800800
XL4015 5A DC to DC Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V)





  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
  • Operating Temperature: -40 ° to +85 °
  • Voltage Regulation: ± 2.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A
  • Output voltage: 0.8V-30V
  • Input voltage: 5V-32V
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • CC CV Low ripple
  • When the module charges a battery, it first use constant current to protect the battery. check the curse above.
  • #power bank circuit
