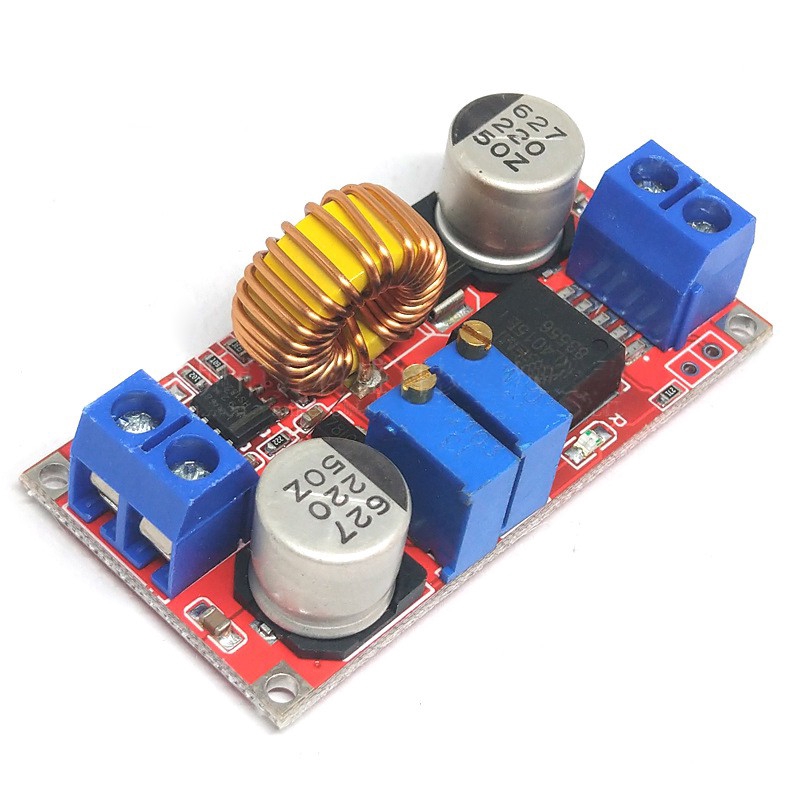

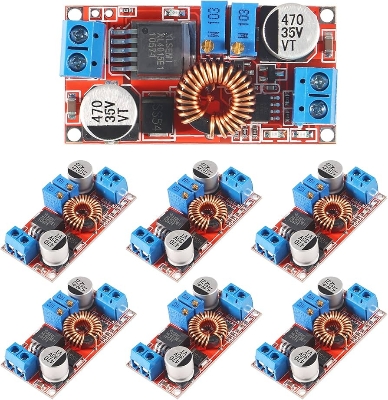

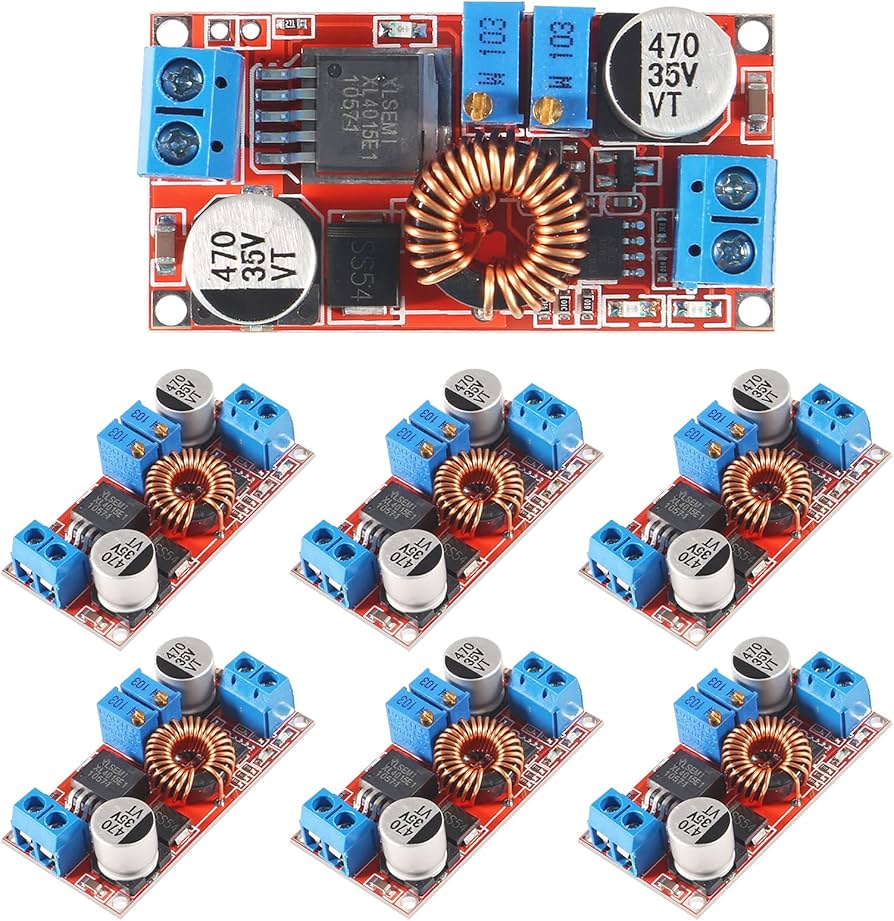

• Input: IN + input positive, IN- input negative
• Output way: OUT + output positive, OUT- output negative
• Input voltage: 4-38V
• Output voltage: 1.25-36V continuously adjustable
• Output current: adjustable, maximum 5A
• Output Power: 75W maximum
• Working temperature: -40 to + 85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: up to 96%
• Short circuit protection: Yes (limit current 8A)
• Size: 51 * 26.3 * 14 (L * W * H) (mm)
