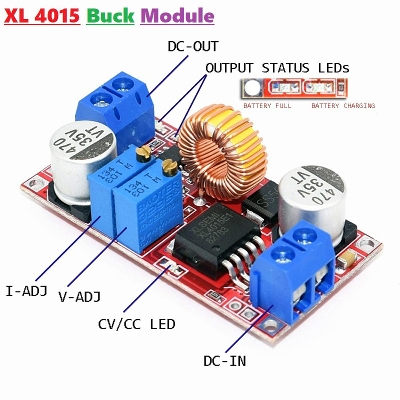

XL4015 XL-4015 4015 DC DC Step Down Buck Converter 5v-32v To 0.8V-30V 5A 75W Adjustable Module Power Supply Electrical - Multi Plug

Category: Building Materials
SKU: UDBD03978
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 265
Tk 312
Tk 312
15% OFF
0 review(s)
  • Output voltage: 0.8V-30V
  • Voltage Regulation: ± 2.5%
  • Load Regulation: ± 0.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A (heat sink recommended at 5A)
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • Size: 51×26.3x14mm
  • #multi plug

Call For Order : 09613-800800
  • XL4015 XL-4015 4015 DC DC Step Down Buck Converter 5v-32v To 0.8V-30V 5A 75W Adjustable Module Power Supply Electronics Circuitry & Parts
  • Output voltage: 0.8V-30V
  • Voltage Regulation: ± 2.5%
  • Load Regulation: ± 0.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A (heat sink recommended at 5A)
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • Size: 51×26.3x14mm





  • Output voltage: 0.8V-30V
  • Voltage Regulation: ± 2.5%
  • Load Regulation: ± 0.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A (heat sink recommended at 5A)
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • Size: 51×26.3x14mm
  • #multi plug
