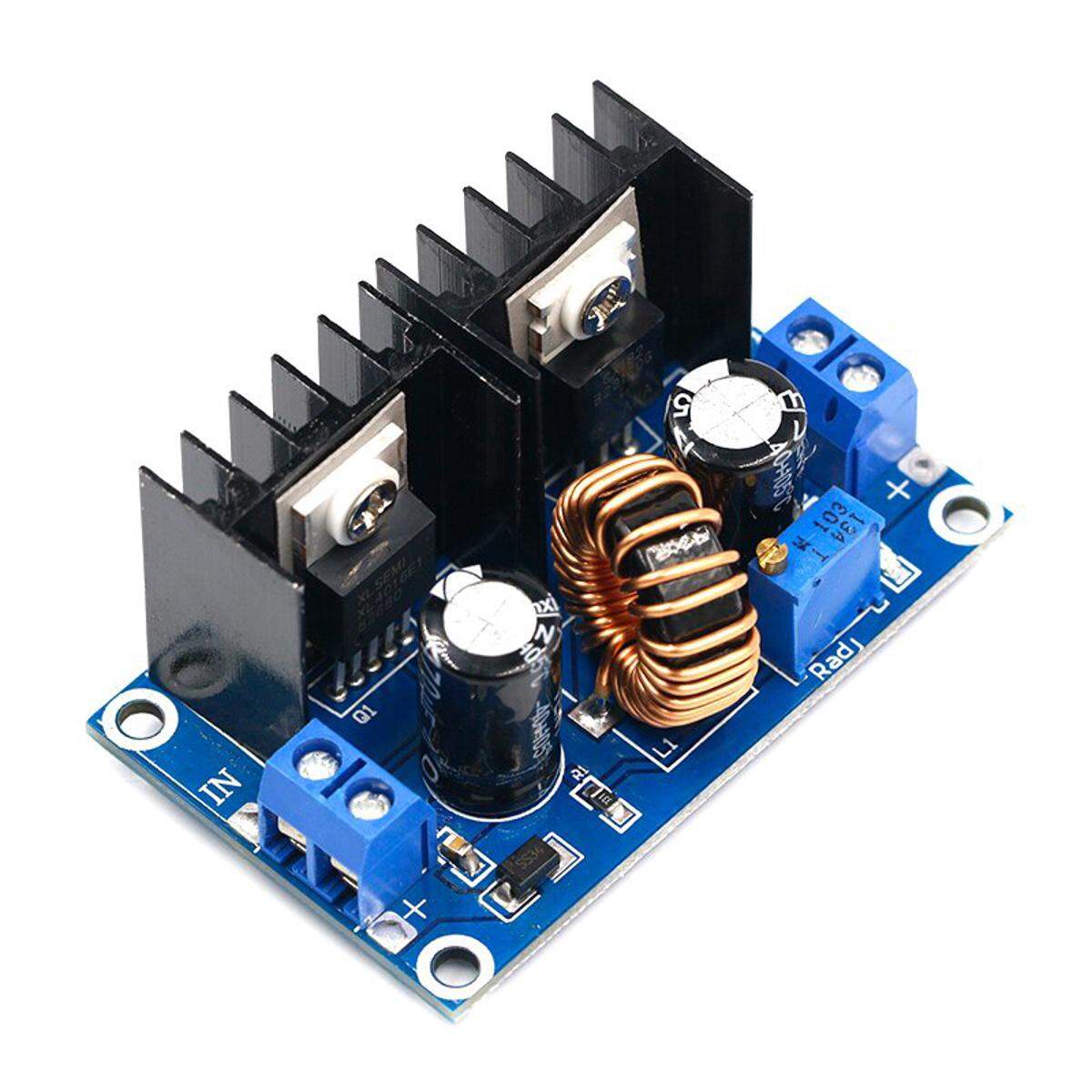

XL4016 PWM Adjustable 4-36V To 1.25-36V Step-Down Board Module Max 8A 200W DC-DC Step Down Buck Converter Power Supply

• The voltage regulator has excellent linearity regulation and load regulation
• With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc

• Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc
• Product name: DC voltage regulator
• Voltage regulating mode: PWM modulation
• Input voltage: DC 4-38V
• Output voltage: DC 1.25-36V
• Maximum current: 8A(please add fan and make current less than 5A for a long term use)
• Maximum power: 200W
• Conversion efficiency: 95%
• Switching frequency: 180KHz
• Working Temperature: -45~+85℃
• Size: 6×3.7cm/2.36×1.46inch

• Please make sure there is a 2V voltage difference between input voltage and output voltage
• The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
• This is not a step up module, but a step down module

Package Contents:

• 1 x XL4016 PWM Adjustable 4-36V To 1.25-36V Step-Down Board Module Max 8A 200W DC-DC Step Down Buck Converter Power Supply
