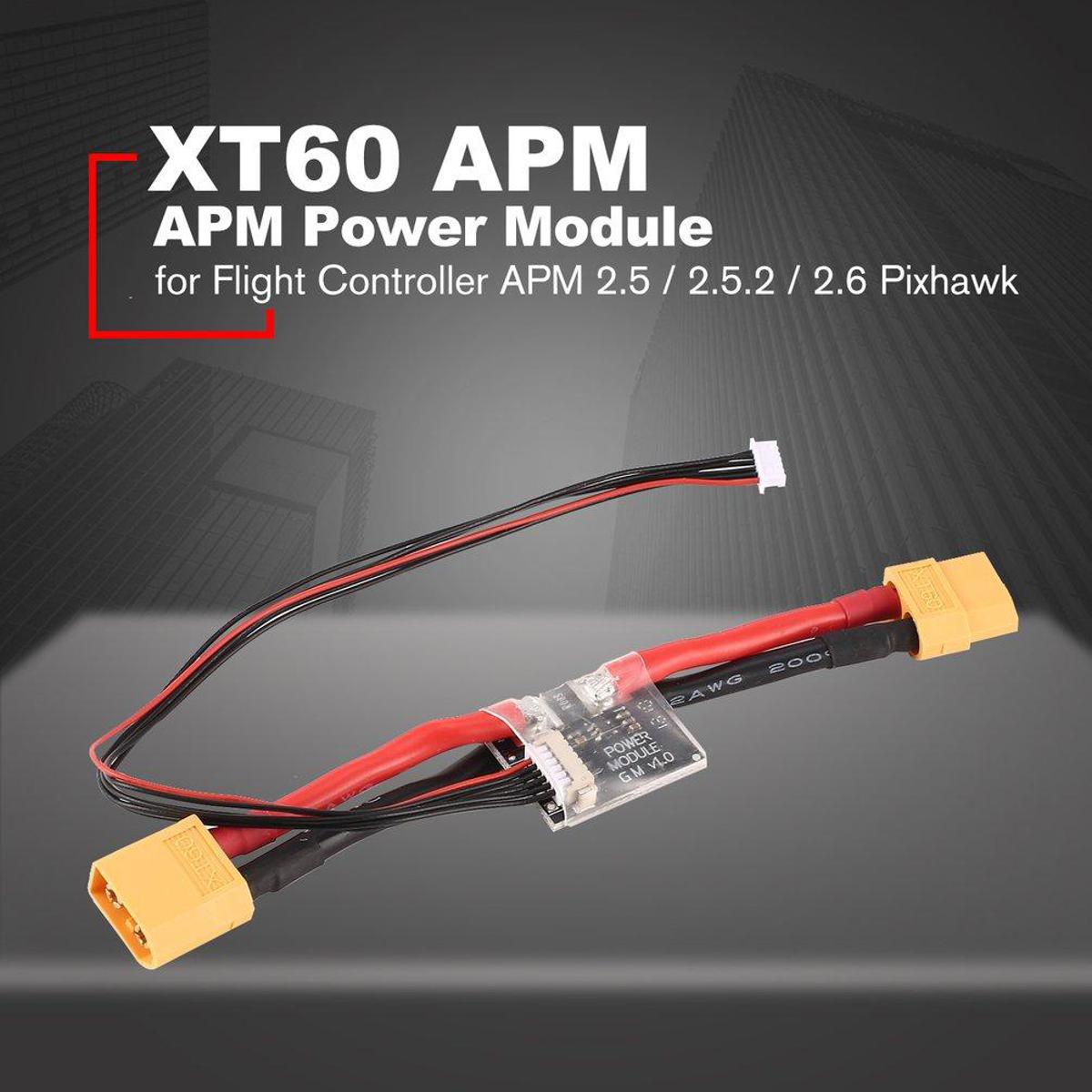

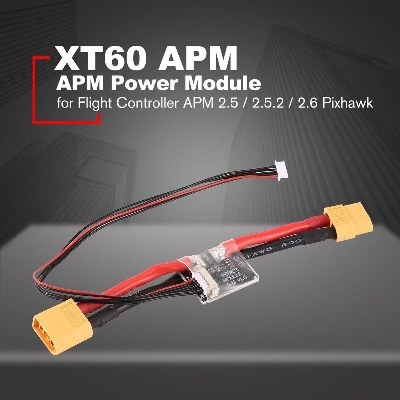

Description: XT60 Power Module Distribution Board APM DC 5.3V BEC For Flight Controller APM 2.5 2.52 2.6 Pixhawk Accessories Dye

The APM 2.5 Power Module is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.5A from up to a 10S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

Features:

• This APM power module
• It is suitable for APM 2.5 / 2.5.2 / 2.6 Pixhawk
• A LiPo battery is a good choice to get clean power!
• A simple way to provide APM 2.5/2.52/2.6 and Pixhawk with clean power from measurements alongside a LiPo battery Flow
• Onboard output regulator, switching 5.3V supply and max 2.25A up to 4S LiPo battery.
• Used to detect battery voltage and battery current, flight control board receive two signals, calculate remaining battery Charge, estimate remaining flight time.
• Comes with BEC function, the control board DC for flight 5.3 to ensure, can generate a maximum of 3A DC current Stable power supply.
• The connectors are in Japan original accessories, non-domestic joint, APM flight control board and Reliable connection between power supply module.

Specification:

• Item name: APM power module
• Maximum input voltage: 20 V
• Maximum current detection: 90A-
• Voltage and current measurement set to 5 V ADC
• Switching outputs regulator 5.3 V and 2.25A max
• Cable connects directly to APM DF13 6-pos ‘PM’ of 2.5 connector
• Product size: 142*21*10mm
• Weight: 22g

• Item name: APM power module
• Maximum input voltage: 20 V
• Maximum current detection: 90A-
• Voltage and current measurement set to 5 V ADC
• Switching outputs regulator 5.3 V and 2.25A max
• Cable connects directly to APM DF13 6-pos ‘PM’ of 2.5 connector
• Product size: 142*21*10mm

• #multi plug
