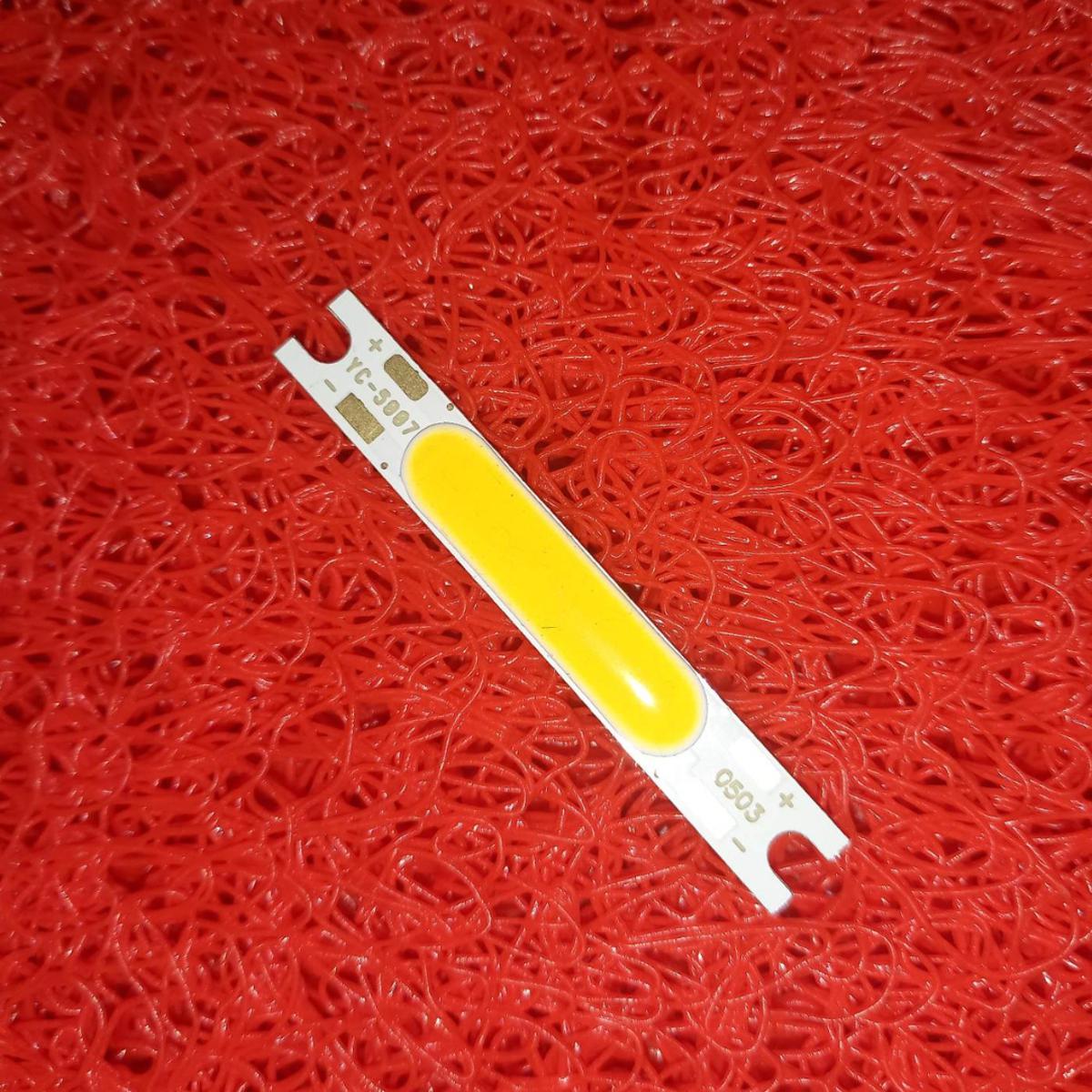

Descriptions: YC-5007 Warm White 3W 5W 9-11V COB LED Chip Module Size 50x7mm COB LED Strip Light Source

YC-5007Warm White 3W 5W 9-11V COB LED Chip Module Size 50x7mm COB LED Strip Light Source For Floodlight Spotlight Headlights Wall Lamp Desk Work Lights Solar Light System Bulb

COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.

Features:

• Power: 3 W. Color temperature: Warm White (3200 K)
• Long service life, low consumption, high brightness, environmentally friendly.
• Widely used in the replacement of ceiling lamp, spotlights, lanterns, stage lights, etc.
• This LED chip needs a heat sink for cooling.Apply thermal grease evenly to the underside of the light source and the contact surface of the heat sink during installation.
• Note: This LED chip is powered by constant current LED driver power supply.Don't light it without aluminum heat sink, otherwise it will be damaged.

Specifications:

• Name: 50x7mm COB LED light source 3-5W 9-11V DC
• Type: DBS-5007-0307
• Board size: 50x7 mm.
• Illumination area: 25x6 mm.
• Input voltage: 9-11V
• Current: 300 mA.
• Thickness: 2.5-3.0 mm.
• Color Emitting (CCT):WARM White (2800-3200 K)

• Name:  50x7mm COB LED light source 3-5W 9-11V DC
• Type: DBS-5007-0307
• Board size: 50x7 mm.
• Illumination area: 25x6 mm.
• Input voltage: 9-11V
• Current: 300 mA.
• Thickness: 2.5-3.0 mm.
• Color Emitting (CCT):WARM White (2800-3200 K)
