Description: ZC05 MC105 Catalytic CH4 Sensor Flammable Gas Sensor

ZC05 MC105 Catalytic CH4 Sensor Flammable Gas Sensor ZC05 Module Adapters Gas Sensor MC105 Methane Gas Sensor Module MC105 Sensor

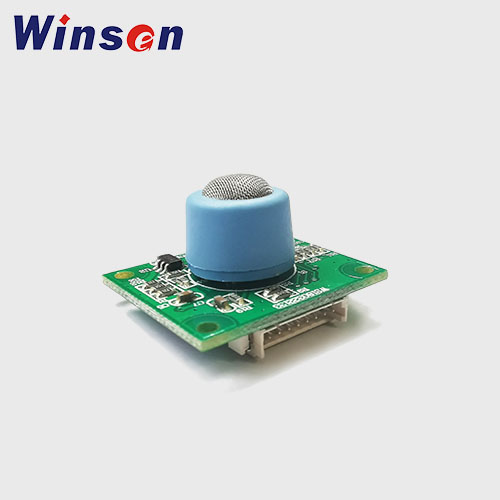

This ZC05 Module adopts catalytic gas sensor and has basic function of home use gas leakage alarm with digital display: supplying digital UART signal and status indication, buzzer, relay, switch signal through solenoid valve output, as well as support alarm point resetting. It is usually used for development of home use natural gas leakage detector.

Features:

• * Lower consumption
• * Small size
• * Fast response and resume
• * Highest sensitivity
• * Excellent stability and long life
• * Easy circuit and big signal output
• * Excellent selectivity

Specification:

• Model No.: ZC05
• Detection gas: Natural gas
• Type of sensor: Catalytic type
• Detection range: 1%~25%LEL
• Output UART: (0 or 3V)
• Working Voltage: DC (5±0.1)V
• Preheat Time: 3min
• Response time: ≤10s
• Resume time: ≤30s
• Working Current: (150±10) mA
• Resolution: 100ppm
• Expected Life span: 2 years
• Working conditions: Temperature: -10~55℃
• Humidity: 20%~90%RH
• Storage Conditions: Temperature: -10~55℃
• Humidity: 20%~65%RH

Applications :

It, LPG gas sensors, is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.

Note:

• There might be a bit color distortions due to different computer resolutions.
• There might be size errors due to different computer resolutions.

• Model No.: ZC05
• Detection gas: Natural gas
• Type of sensor: Catalytic type
• Detection range: 1%~25%LEL
• Output UART: (0 or 3V)
• Working Voltage: DC (5±0.1)V
• Preheat Time: 3min
• Response time: ≤10s
• Resume time: ≤30s
• Working Current: (150±10) mA
• Resolution: 100ppm
• Expected Life span: 2 years
• Working conditions: Temperature: -10~55℃
• Humidity: 20%~90%RH
• Storage Conditions: Temperature: -10~55℃
• Humidity: 20%~65%RH
