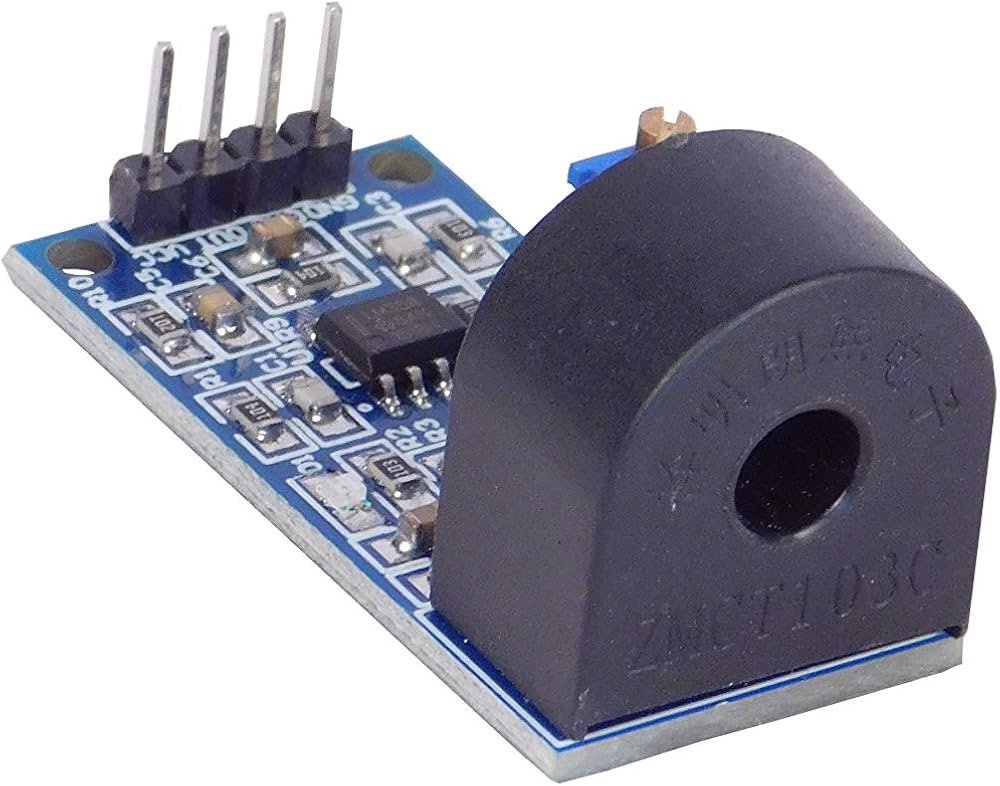

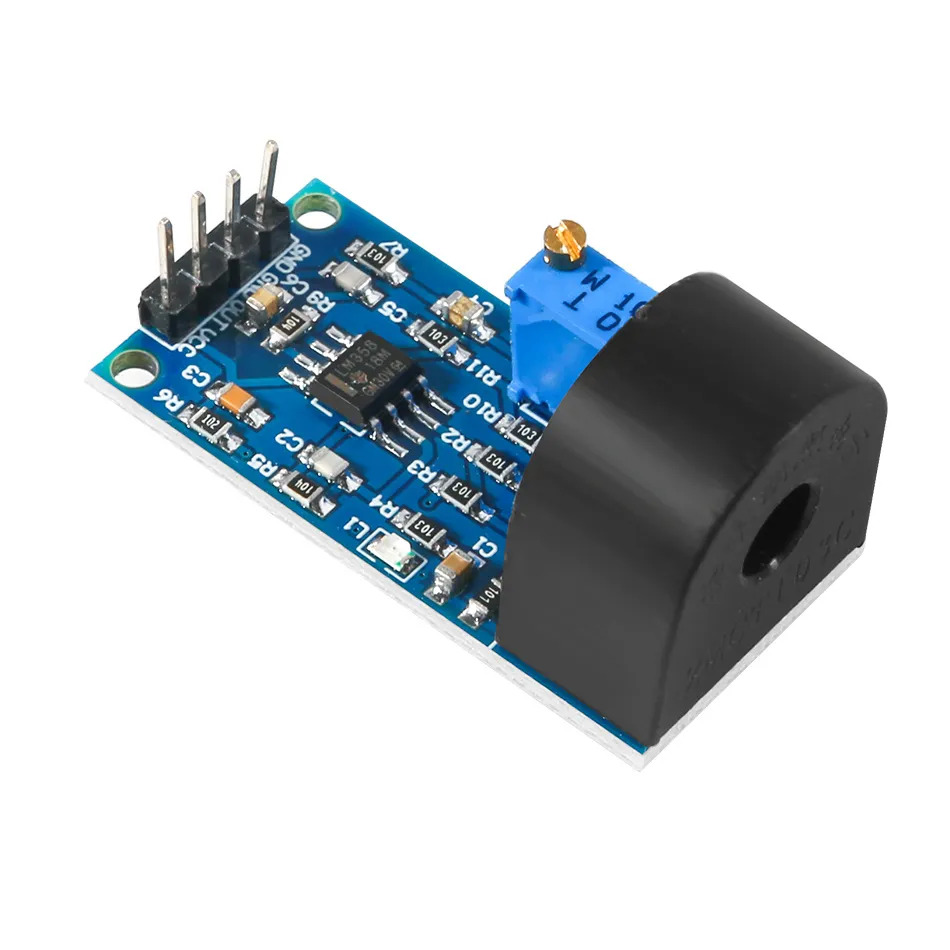

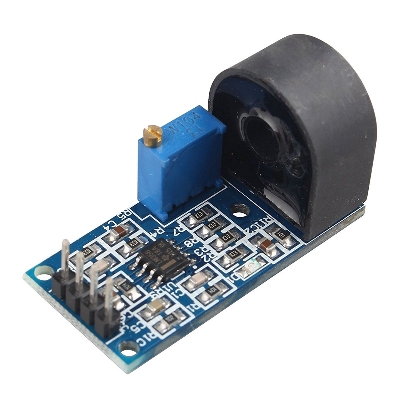

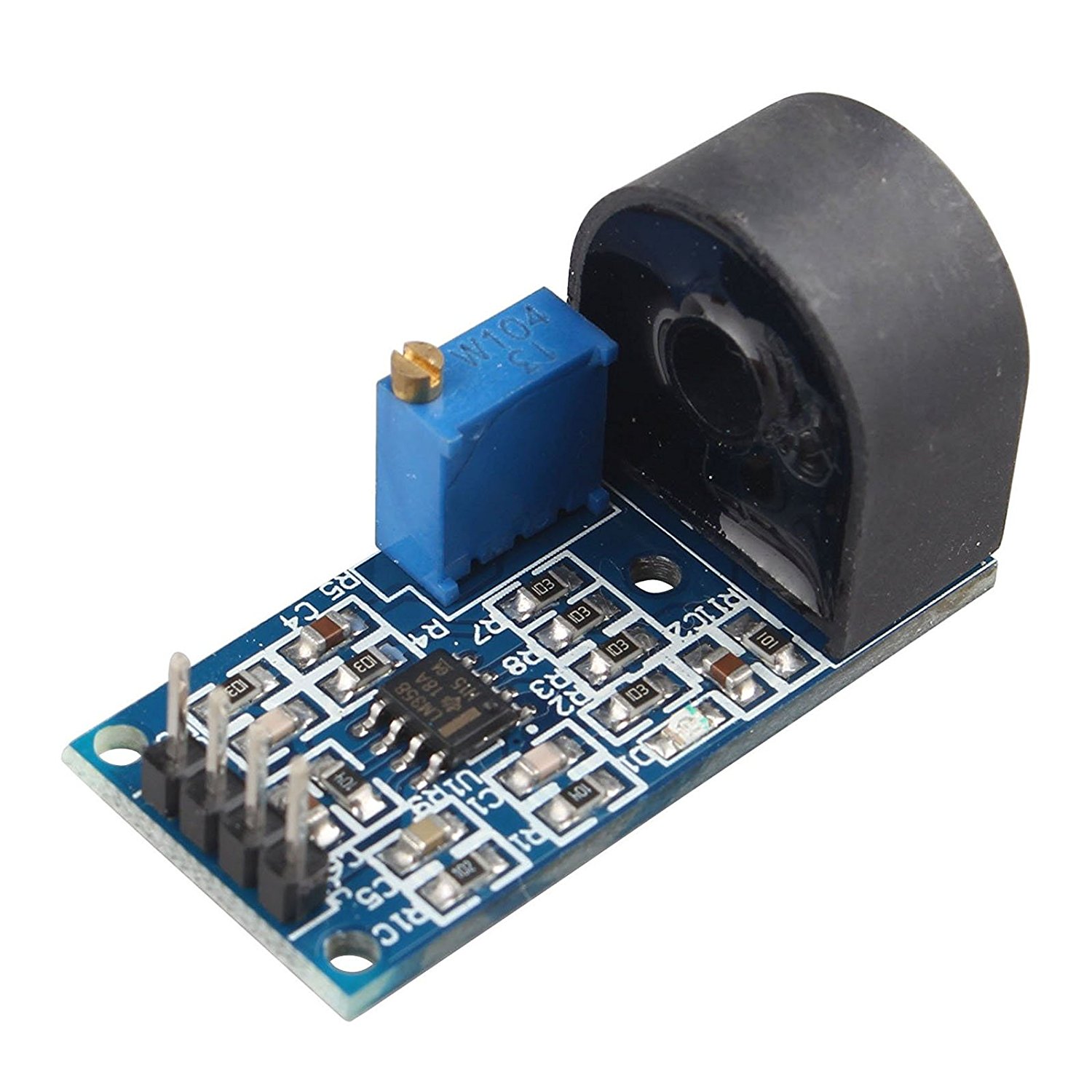

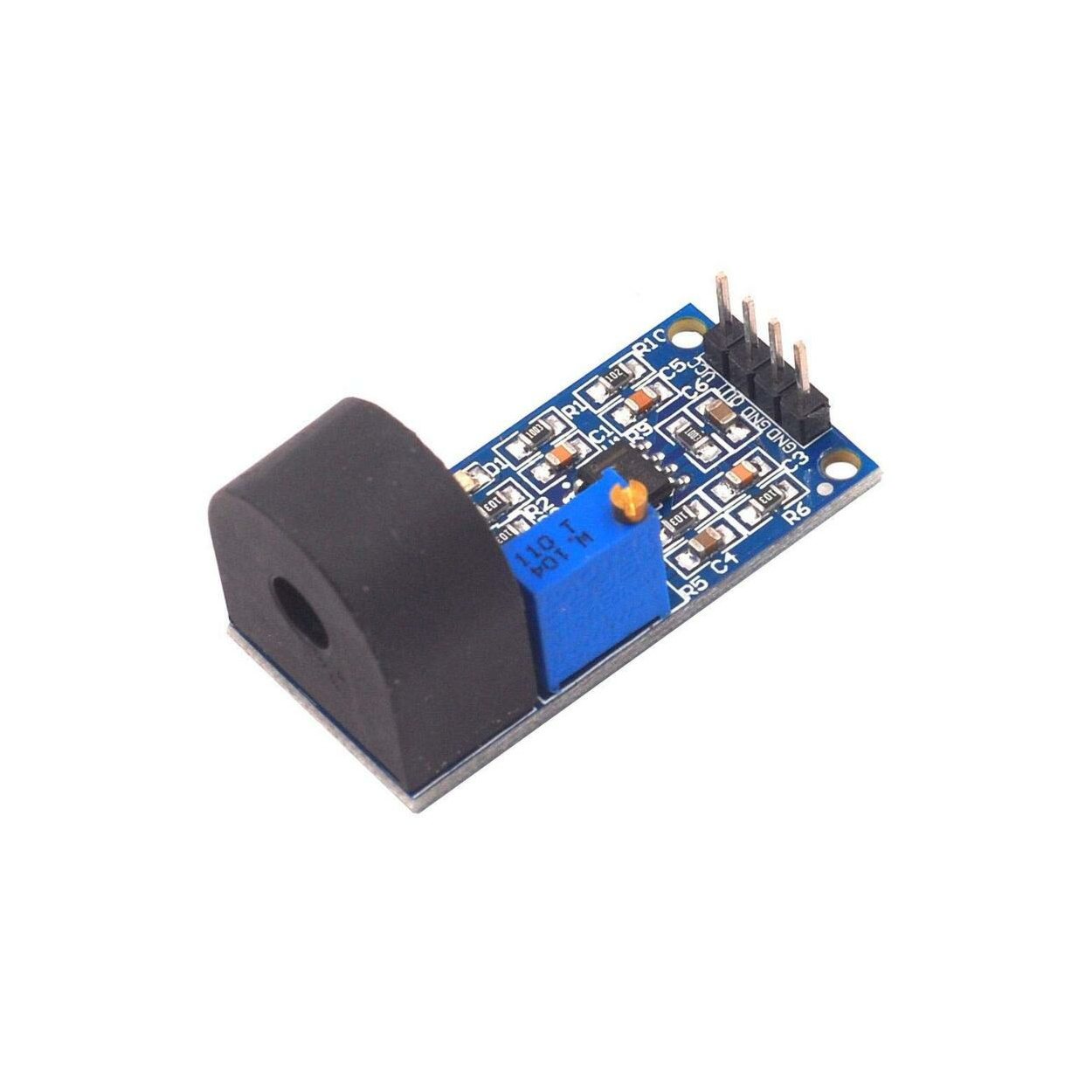

ZMCT103C Current Transformer 5A AC Current Sensor Module(Blue)

The ZMCT103 AC Voltage Sensor Module is a high-precision, single-phase current transformer designed for accurate AC current measurement. This module is ideal for applications such as power monitoring, home automation, and energy management systems. It features an onboard precision micro current transformer and a high-precision operational amplifier circuit, ensuring accurate sampling and compensation of the input signal. The ZHT103 is compatible with various microcontroller platforms, making it a versatile choice for both hobbyists and professionals.

Specifications

• Model: ZMCT 103
• Rated Input Current: 5A
• Rated Output Current: 5mA
• Current Ratio: 1000:1
• Frequency Range: 0.02kHz to 10kHz
• Phase Difference: ≤15'
• Linearity: ≤0.2%
• Allowable Error: -0.3% to 0.2%
• Isolation Withstand Voltage: 3200V
• Supply Voltage: 5V to 30V DC
• Output Signal: Analog sine wave
• Operating Temperature: -40°C to +70°C

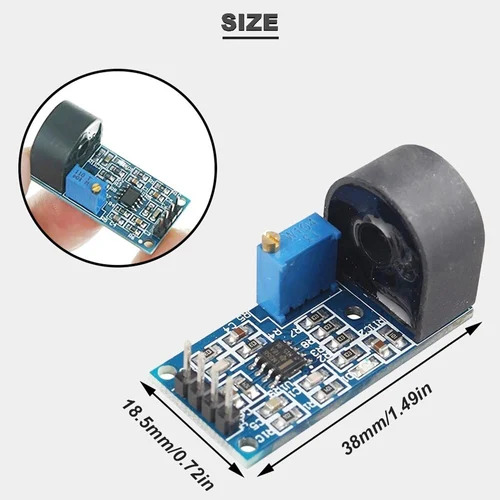

• Dimensions: 38mm x 18.5mm

Features

• High Precision: Ensures accurate current measurement with minimal error.
• Wide Frequency Range: Capable of measuring AC current across a broad frequency range.
• Adjustable Output: The output voltage can be adjusted using the onboard potentiometer.
• High Isolation: Provides 3200V isolation withstand voltage for safe operation.
• Compact Design: Small and lightweight, easy to integrate into various projects.

Applications

• Power Monitoring: Ideal for monitoring AC current in power systems.
• Home Automation: This can be used to measure and control current in smart home devices.
• Energy Management: Useful for energy-saving projects and systems.
• Industrial Control: Suitable for current measurement in industrial equipment.
• DIY Projects: Perfect for hobbyists and makers working on current measurement projects.
